L77SDAG15 Series

Manufacturer: Amphenol ICC (Commercial Products)

Catalog

CONN D-SUB RCPT 15POS VERT SLDR

Part	Voltage Rating	Dielectric Material	Contact Material	Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Form	Number of Rows [custom]	Shell Size, Connector Layout	Contact Finish Thickness	Contact Finish Thickness	Features	Contact Finish	Flange Feature	Termination	Connector Style	Connector Type	Number of Positions	Contact Type	Mounting Type	Material Flammability Rating	Current Rating (Amps)	Contact Finish Thickness	Wire Gauge
Amphenol ICC (Commercial Products) L77SDAG15SOL2RM8C309	250 V	Thermoplastic Glass Filled	Phosphor Bronze	Black	-55 C	125 °C	Stamped	2	2	30 Áin	0.76 Ám	Board Lock	Gold	Board Side (M3) Mating Side Female Screwlock (M3)	Solder	D-Sub	Receptacle Female Sockets	15	Signal	Through Hole	UL94 V-0	3 A
Amphenol ICC (Commercial Products) L77SDAG15SOL2	250 V	Thermoplastic Glass Filled	Phosphor Bronze	Black	-55 C	125 °C	Stamped	2	2				Gold	Board Side (M3)	Solder	D-Sub	Receptacle Female Sockets	15	Signal	Through Hole	UL94 V-0	3 A	Flash
Amphenol ICC (Commercial Products) L77SDAG15SOL2RM8	250 V	Thermoplastic Glass Filled	Phosphor Bronze	Black	-55 C	125 °C	Stamped	2	2			Board Lock	Gold	Board Side (M3) Mating Side Female Screwlock (M3)	Solder	D-Sub	Receptacle Female Sockets	15	Signal	Through Hole	UL94 V-0	3 A	Flash

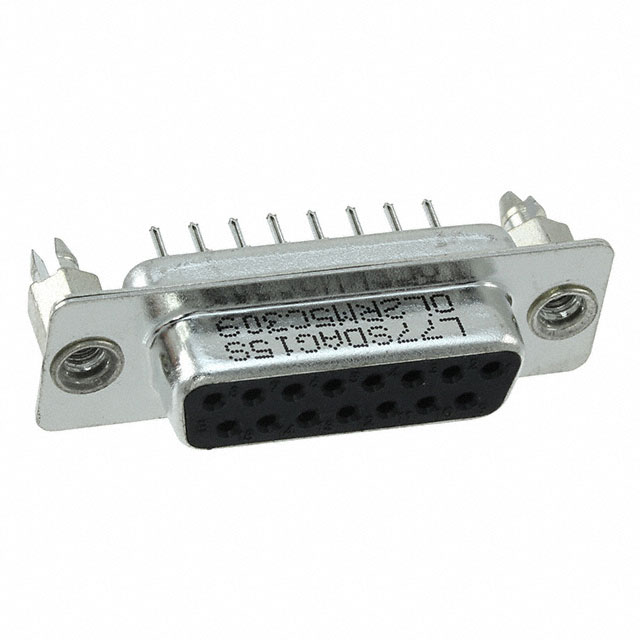

Amphenol ICC (Commercial Products) L77SDAG15SOL2RM5C309	250 V	Thermoplastic Glass Filled	Phosphor Bronze	Black	-55 C	125 °C	Stamped	2	2	30 Áin	0.76 Ám	Board Lock	Gold	Board Side (M3)	Solder	D-Sub	Receptacle Female Sockets	15	Signal	Through Hole	UL94 V-0	3 A

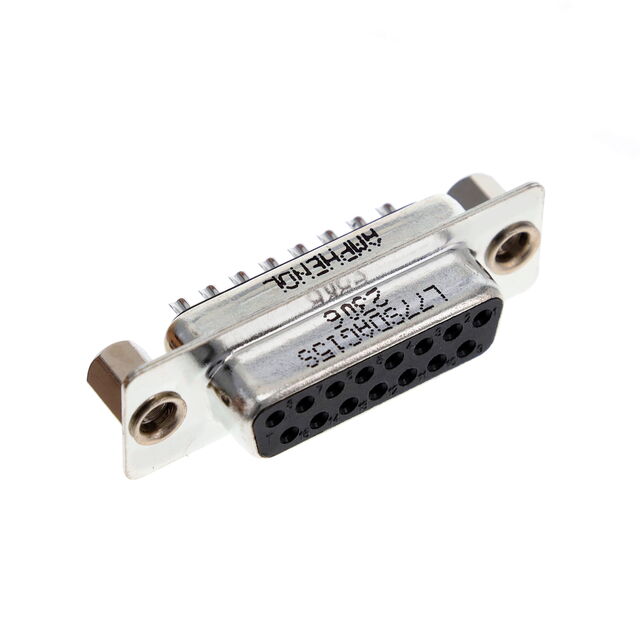

Amphenol ICC (Commercial Products) L77SDAG15S	250 V	Thermoplastic Glass Filled	Brass	Black	-55 C	105 ░C	Stamped	2	2				Gold	Cable Side (M3)		D-Sub	Receptacle Female Sockets	15	Signal	Free Hanging (In-Line)	UL94 V-0	3 A	Flash	20 AWG
