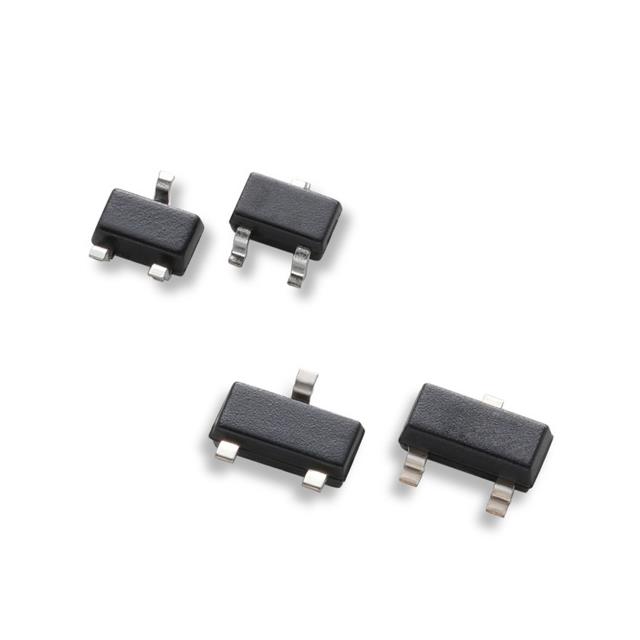

AQ24COM-02HTG Series

24V 5A 250W 15pF 30kV SOT23-3 TVS Array

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

24V 5A 250W 15pF 30kV SOT23-3 TVS Array

Part	Qualification	Mounting Type	Current - Peak Pulse (10/1000µs)	Power - Peak Pulse	Applications	Voltage - Breakdown (Min) [Min]	Type	Supplier Device Package	Grade	Bidirectional Channels	Capacitance @ Frequency	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Power Line Protection	Voltage - Reverse Standoff (Typ)	Voltage - Clamping (Max) @ Ipp
Littelfuse/Commercial Vehicle Products AQ24COM-02HTG	AEC-Q101	Surface Mount	5 A	250 W	CAN	26 V	Zener	SOT-23-3	Automotive	2	13 pF	-40 °C	150 °C	SC-59 SOT-23-3 TO-236-3		24 V	50 V

Catalog

24V 5A 250W 15pF 30kV SOT23-3 TVS Array

Key Features

• ESD, IEC 61000-4-2, ±30 kV contact/air

• ESD, ISO 10605, 330 pF 330 Ω, ±30 kV contact/air

• EFT, IEC 61000-4-4, 40 A (5/50 ns)

• Maximum surge tolerance, IEC 61000-4-5 2nd edition, 5 A (8/20 μs)

• Lead-free, halogen-free, and RoHS compliant

• Moisture sensitivity level (MSL-1)

• AEC-Q101 qualified and PPAP capable

Description

The AQ24COM-02 series bidirectional TVS are fabricated in a proprietary silicon avalanche technology. These diodes provide a high ESD (electrostatic discharge) protection level for electronic equipment. The AQ24COM-02 series TVS can safely absorb repetitive ESD strikes of ±30 kV (contact and air discharge as defined in IEC 61000-4-2) without any performance degradation. In addition, it can safely dissipate a 5 A 8/20 μs surge event as defined in IEC 61000-4-5, 2nd edition.
