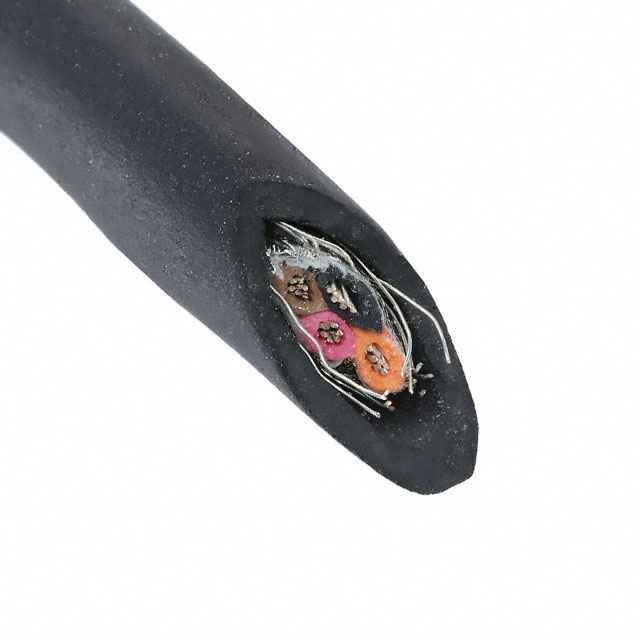

25104 Series
Manufacturer: ALPHA WIRE
Beta
⌘K
CABLE 4COND 22AWG SHLD 1000'
| Part | Shield Material | Shield Coverage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Material | Voltage | Jacket (Insulation) Material | Number of Conductors | Cable Type | Operating Temperature [Min] | Operating Temperature [Max] | Wire Gauge | Conductor Strand [custom] | Conductor Strand [custom] | Shield Type | Jacket Color | Conductor Insulation | Length | Length | Features | Ratings | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Copper Tinned Suprashield® | 70 % 100 % | 5.51 mm | 0.217 in | Copper Tinned | 300 VDC | Polyurethane (PU) | 4 | Multi-Conductor | -30 ░C | 90 °C | 22 AWG | 30 AWG | 7 | Braid Foil | Slate | Poly-Vinyl Chloride (PVC) | 304.8 m | 1000 ft | Biological Compatibility Drain Wire Rip Cord | ISO 10993 UL Style 20668 | 0.813 mm | 0.032 in | ||
 ALPHA WIRE | Copper Tinned Suprashield® | 70 % 100 % | 5.51 mm | 0.217 in | Copper Tinned | 300 VDC | Polyurethane (PU) | 4 | Multi-Conductor | -30 ░C | 90 °C | 22 AWG | 30 AWG | 7 | Braid Foil | Black | Poly-Vinyl Chloride (PVC) | Biological Compatibility Drain Wire Rip Cord | ISO 10993 UL Style 20668 | 0.813 mm | 0.032 in | 100 ft | 30.5 m | ||
ALPHA WIRE | Copper Tinned Suprashield® | 70 % 100 % | 5.51 mm | 0.217 in | Copper Tinned | 300 VDC | Polyurethane (PU) | 4 | Multi-Conductor | -30 ░C | 90 °C | 22 AWG | 30 AWG | 7 | Braid Foil | Yellow | Poly-Vinyl Chloride (PVC) | 304.8 m | 1000 ft | Biological Compatibility Drain Wire Rip Cord | ISO 10993 UL Style 20668 | 0.813 mm | 0.032 in |
