179277 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

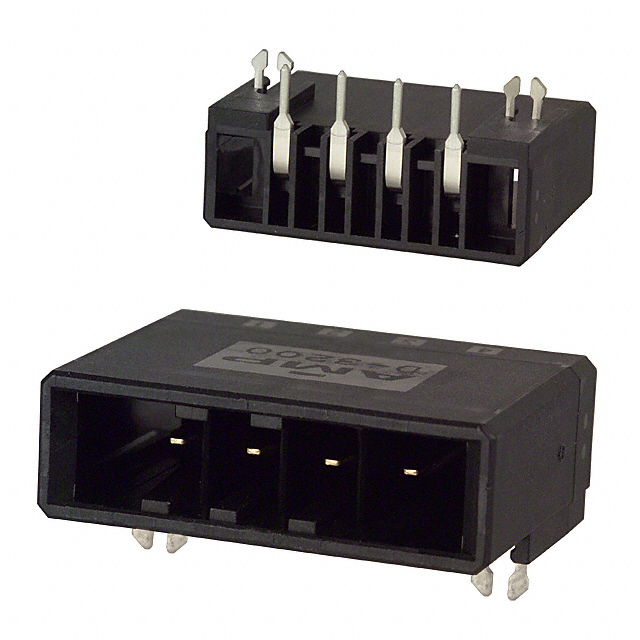

CONN HEADER R/A 4POS 5.08MM
| Part | Insulation Color | Contact Finish - Post | Number of Positions Loaded | Insulation Material | Fastening Type | Pitch - Mating | Pitch - Mating | Style | Shrouding | Number of Positions | Mounting Type | Applications | Material Flammability Rating | Termination | Contact Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Length - Post [x] | Contact Length - Post [x] | Voltage Rating | Contact Material | Insulation Height | Insulation Height | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish - Mating | Number of Rows | Contact Shape |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Black | Tin | All | Glass Filled Polyester Thermoplastic | Detent Lock | 5.08 mm | 0.2 in | Board to Board Cable | Shrouded - 4 Wall | 4 | Through Hole Right Angle | General Purpose Industrial | UL94 V-0 | Solder | Tab | 30 Áin | 0.76 Ám | 0.15 in | 3.81 mm | 600 V | Copper Alloy | 9.35 mm | 0.368 in | Header | 105 ░C | -55 °C | Gold | 1 | Rectangular |
