0906-2 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

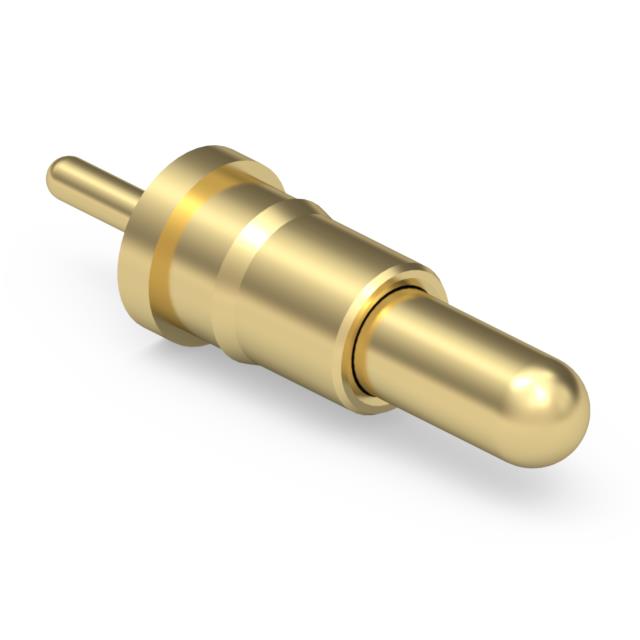

CONTACT SPRING LOADED T/H GOLD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Maximum Working Height [Max] | Maximum Working Height [Max] | Minimum Working Height [Min] | Minimum Working Height [Min] | Contact Material | Pad Layout Dimension | Pad Layout Dimension | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Plunger Size [diameter] | Plunger Size [diameter] | Contact Finish | Mating Cycles | Operating Force - Initial | Recommended Working Height | Recommended Working Height | Current Rating (Amps) | Contact Type | Operating Force - Mid Compression |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 5 mm | 0.197 in | 0.142 in | 3.6 mm | Brass Alloy | 0.072 in | 1.83 mm | Through Hole | 20 µin | 0.51 µm | 0.042 in | 1.07 mm | Gold | 1000000 | 10 gf | 4.3 mm | 0.169 in | 5.2 A | Sleeve & Plunger (Pogo Pins) | 60 gf |
