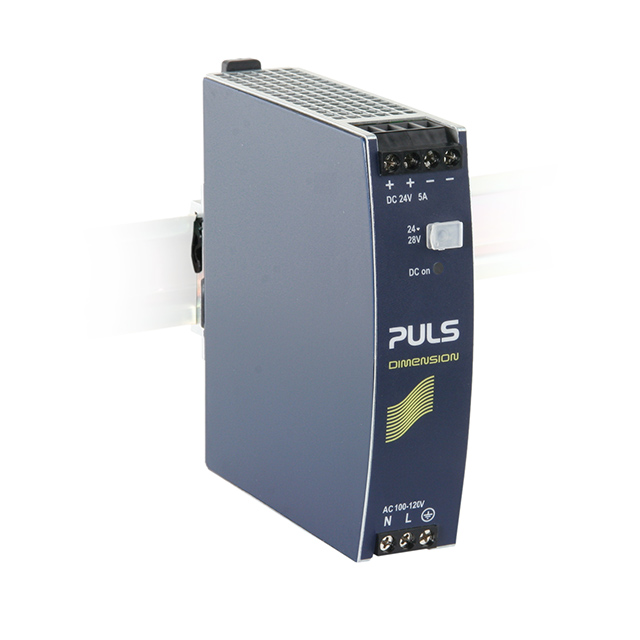

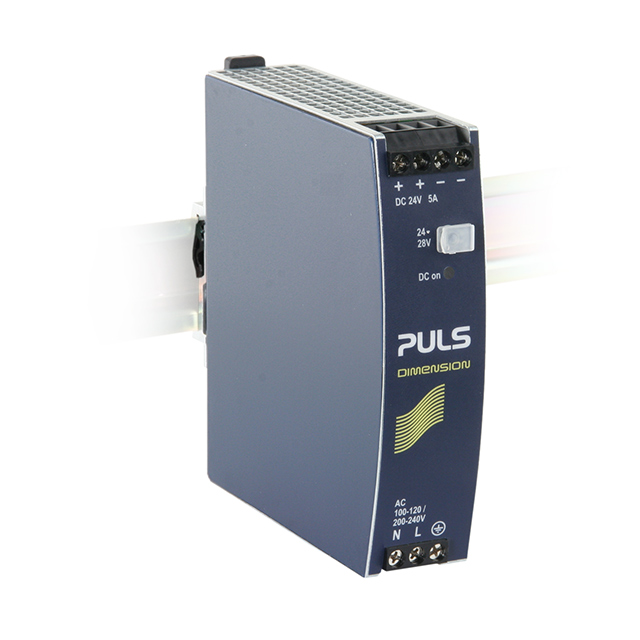

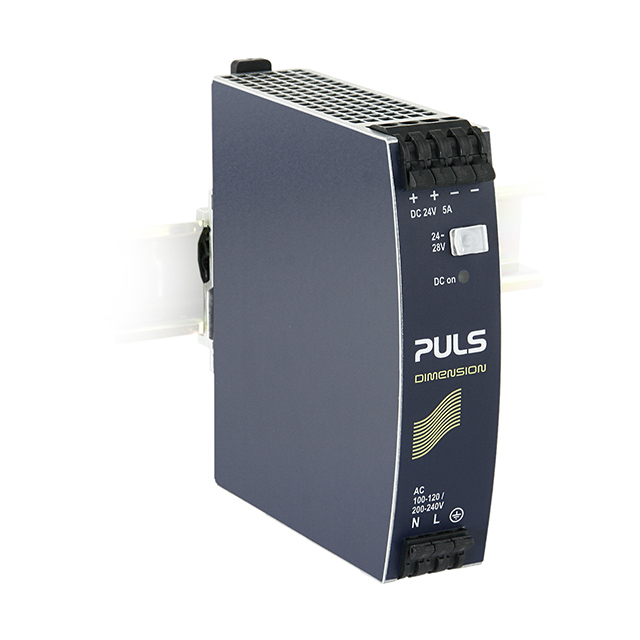

CS5 Series

Manufacturer: PULS, LP

Catalog

AC/DC DIN RAIL SUPPLY 24V 120W

Part	Approval Agency	Features	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Input Type	Standard Number	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Current - Output (Max)	Voltage - Output 1	Applications	Number of Outputs	Voltage - Isolation	AC Voltage - Input [Max]	AC Voltage - Input [Min]	DC Voltage - Input (Min) [Min]	DC Voltage - Input (Max) [Max]
PULS, LP CS5.241-C1	ABS CSA DNV GL EAC IEC UL	Adjustable Output Conformal Coating Load Sharing	120 W	70 °C	-25 °C	90.2 %	AC	508 60950-1 61010-2-201 Class I Div 2	124 mm	4.61 "	4.88 in	117 mm	1.26 in	32 mm	5 A	24 V	ITE (Commercial)	1	500 V	132 VAC 264 VAC	90 VAC 180 VAC
PULS, LP CS5.243	ABS CSA DNV GL EAC IEC UL	Adjustable Output Load Sharing	120 W	70 °C	-25 °C	90 %	AC	508 60950-1 61010-2-201 Class I Div 2	124 mm	4.61 "	4.88 in	117 mm	1.26 in	32 mm	5 A	24 V	ITE (Commercial)	1	500 V
PULS, LP CS5.244	ABS CSA DNV GL EAC IEC UL	Adjustable Output Load Sharing	120 W	70 °C	-25 °C	90.2 %	AC	508 60950-1 61010-2-201 Class I Div 2	124 mm	4.61 "	4.88 in	117 mm	1.26 in	32 mm	5 A	24 V	ITE (Commercial)	1	500 V	264 VAC 300 VAC	180 VAC 264 VAC	264 V	300 V
PULS, LP CS5.241	ABS CSA DNV GL EAC IEC UL	Adjustable Output Load Sharing	120 W	70 °C	0 °C	90.2 %	AC	508 60950-1 61010-2-201 Class I Div 2	124 mm	4.61 "	4.88 in	117 mm	1.26 in	32 mm	5 A	24 V	ITE (Commercial)	1	500 V	132 VAC 264 VAC	90 VAC 180 VAC
PULS, LP CS5.241-S1	ABS CSA DNV GL EAC IEC UL	Adjustable Output Load Sharing	120 W	70 °C	-25 °C	90.2 %	AC	508 60950-1 61010-2-201 Class I Div 2	124 mm	4.61 "	4.88 in	117 mm	1.26 in	32 mm	5 A	24 V	ITE (Commercial)	1	500 V	120 VAC 240 VAC	100 VAC 200 VAC
