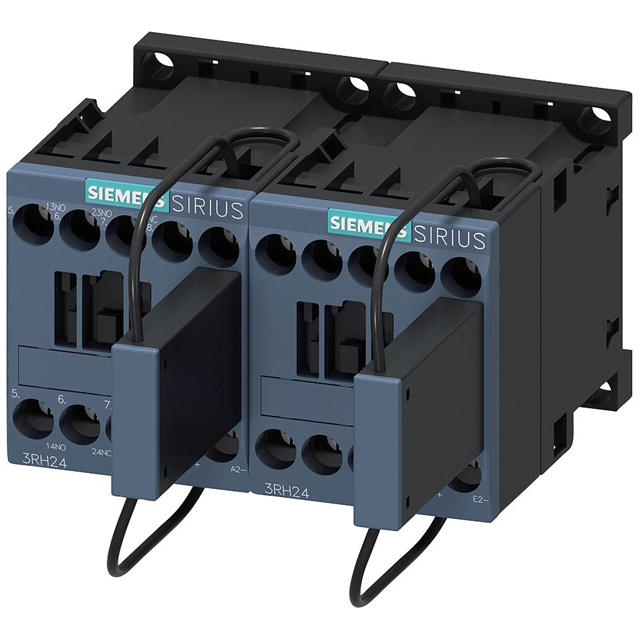

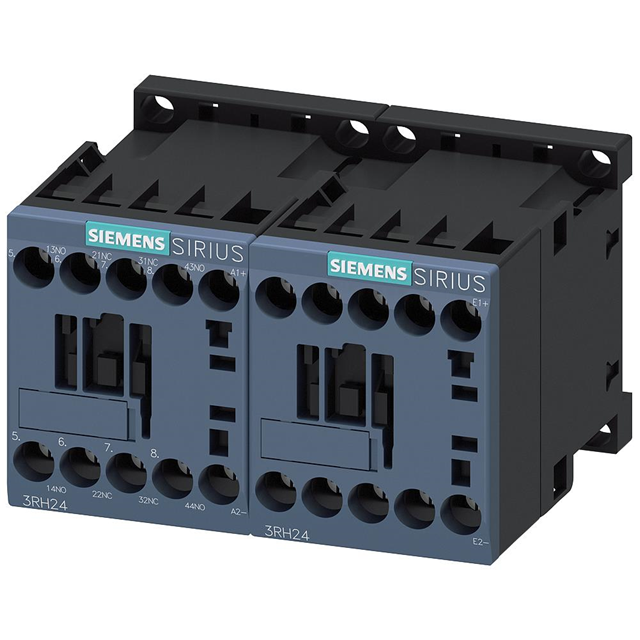

3RH24221 Series

Manufacturer: Siemens

Catalog

CONT RELAY LATCHED 2NO+2NC AC 24

Part	Operate Time	Release Time	Coil Power	Contact Rating (Current)	Contact Form	Operating Temperature [Min]	Operating Temperature [Max]	Features	Switching Voltage [Max]	Termination Style	Mounting Type	Coil Voltage	Must Operate Voltage	Coil Voltage [Max]	Coil Voltage [Min]
Siemens 3RH24221AB00	33 ms	15 ms	37 VA	10 A	4PST-2NO/2NC (2 Form A 2 Form B)	-25 °C	60 °C	Auxiliary Contacts	690 VAC	Screw Terminal	Chassis Mount DIN Rail	24 VAC
Siemens 3RH24221BJ80	100 ms	13 ms	4 W	10 A	4PST-2NO/2NC (2 Form A 2 Form B)	-25 °C	60 °C	Auxiliary Contacts	690 VAC	Screw Terminal	Chassis Mount DIN Rail	72 VDC	57.6 VDC
Siemens 3RH24221BW40	100 ms	13 ms	4 W	10 A	4PST-2NO/2NC (2 Form A 2 Form B)	-25 °C	60 °C	Auxiliary Contacts	690 VAC	Screw Terminal	Chassis Mount DIN Rail	48 VDC	38.4 VDC
Siemens 3RH24221AP60	33 ms	15 ms	37 VA	10 A	4PST-2NO/2NC (2 Form A 2 Form B)	-25 °C	60 °C	Auxiliary Contacts	690 VAC	Screw Terminal	Chassis Mount DIN Rail	240 VAC/DC	204 VAC
Siemens 3RH24221AP00	33 ms	15 ms	37 VA	10 A	4PST-2NO/2NC (2 Form A 2 Form B)	-25 °C	60 °C	Auxiliary Contacts	690 VAC	Screw Terminal	Chassis Mount DIN Rail	230 VAC	195.5 VAC
Siemens 3RH24221HB400LA0	130 ms	20 ms		10 A	3PST-2NO/1NC (2 Form A 1 Form B)	-40 C	70 °C	Auxiliary Contacts	690 VAC	Screw Terminal	Chassis Mount DIN Rail	24 VDC	16.8 VDC
Siemens 3RH24221BG40	100 ms	13 ms	4 W	10 A	4PST-2NO/2NC (2 Form A 2 Form B)	-25 °C	60 °C	Auxiliary Contacts	690 VAC	Screw Terminal	Chassis Mount DIN Rail	125 VDC	100 VDC
Siemens 3RH24221AF00	33 ms	15 ms	37 VA	10 A	4PST-2NO/2NC (2 Form A 2 Form B)	-25 °C	60 °C	Auxiliary Contacts	690 VAC	Screw Terminal	Chassis Mount DIN Rail	110 VAC/DC	93.5 VAC
Siemens 3RH24221XF400LA2	70 ms	45 ms	4.5 W	10 A	4PST-2NO/2NC (2 Form A 2 Form B)	-40 C	70 °C	Auxiliary Contacts	690 VAC	Screw Terminal	Chassis Mount DIN Rail			125 VDC	72 VDC
Siemens 3RH24221AK60	33 ms	15 ms	37 VA	10 A	4PST-2NO/2NC (2 Form A 2 Form B)	-25 °C	60 °C	Auxiliary Contacts	690 VAC	Screw Terminal	Chassis Mount DIN Rail	120 VAC	102 VAC
