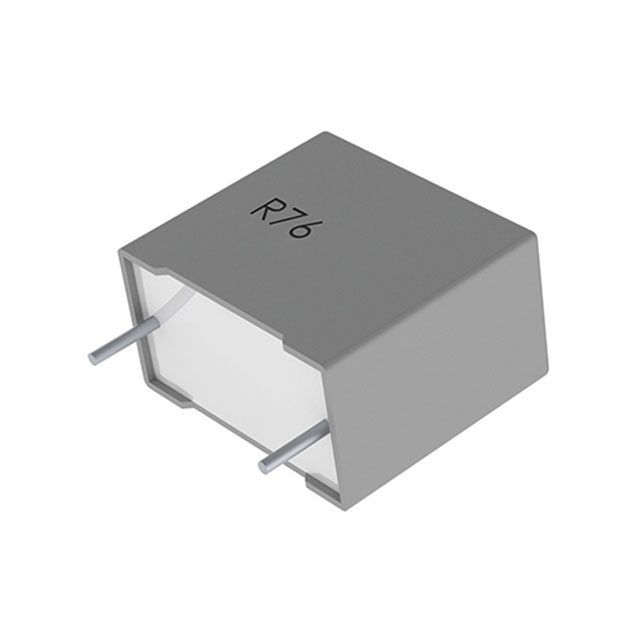

R76 Series

Manufacturer: KEMET

Catalog

FILM CAPACITORS 1K V 0.12 UF 110C 5% 2 PIN LS=22.5 MM AEC-Q200

Part	Voltage Rating - DC	Voltage Rating - DC	Tolerance	Mounting Type	Dielectric Material	ESR (Equivalent Series Resistance)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - AC	Package / Case	Applications	Lead Spacing	Lead Spacing	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Ratings	Capacitance	Termination	Height - Seated (Max) [Max]	Height - Seated (Max)	Height - Seated (Max) [Max] [z]	Size / Dimension [y]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [z]
KEMET R76QN31205050J	1 kV	1 kVDC	5 %	Through Hole	Polypropylene (PP) Metallized	20 mOhms	1.043 in	0.335 in	8.5 mm	26.5 mm	-55 C	110 °C	600 V	Radial	Automotive High Frequency Switching High Pulse DV/DT	0.886 in	22.5 mm	0.673 in	17.1 mm	AEC-Q200	0.12 µF	PC Pins
KEMET R76QF21505050J	1 kV	1 kVDC	5 %	Through Hole	Polypropylene (PP) Metallized	42 mOhms					-55 C	110 °C	600 V	Radial	Automotive High Frequency Switching High Pulse DV/DT	0.394 in	10 mm			AEC-Q200	15000 pF	PC Pins	0.476 "	12.1 mm
KEMET R76MF22705050J		400 V	5 %	Through Hole	Polypropylene (PP) Metallized	24 mOhms	0.512 "	0.157 "	4 mm	13 mm	-55 C	110 °C	250 V	Radial	Automotive High Frequency Switching High Pulse DV/DT	0.394 in	10 mm			AEC-Q200	0.027 µF	PC Pins		9.1 mm	0.358 in
KEMET R76UI14704040J	2 kV	2 kVDC	5 %	Through Hole	Polypropylene (PP) Metallized		0.709 in	0.197 "		18 mm	-55 C	110 °C	700 V	Radial	Automotive High Frequency Switching High Pulse DV/DT	0.591 in	15 mm	11.1 mm		AEC-Q200	0.0047 µF	PC Pins	0.437 in			5 mm
KEMET R76MI2470SE30K		400 V	10 %	Through Hole	Polypropylene (PP) Metallized		0.709 in	0.197 "		18 mm	-55 C	110 °C	250 V	Radial	Automotive High Frequency Switching High Pulse DV/DT	0.591 in	15 mm			AEC-Q200		PC Pins			0.433 in	5 mm	11 mm
KEMET R76QF12204000J	1 kV	1 kVDC	5 %	Through Hole	Polypropylene (PP) Metallized		0.512 "	0.157 "	4 mm	13 mm	-55 C	110 °C	600 V	Radial	Automotive High Frequency Switching High Pulse DV/DT	0.394 in	10 mm			AEC-Q200	2200 pF	PC Pins		9.1 mm	0.358 in
KEMET R76UN2120DQ30K	2 kV	2 kVDC	10 %	Through Hole	Polypropylene (PP) Metallized	53 mOhm	1.043 in	0.236 "	6 mm	26.5 mm	-55 C	110 °C	700 V	Radial	Automotive High Frequency Switching High Pulse DV/DT	0.886 in	22.5 mm	15.1 mm		AEC-Q200	0.012 µF	PC Pins	0.594 in
KEMET R76TF16805050J	1.6 kV	1600 V	5 %	Through Hole	Polypropylene (PP) Metallized	93.6 mOhms					-55 C	110 °C	650 V	Radial	Automotive High Frequency Switching High Pulse DV/DT	0.394 in	10 mm			AEC-Q200	6800 pF	PC Pins	0.476 "	12.1 mm
KEMET R76QN24705050J	1 kV	1 kVDC	5 %	Through Hole	Polypropylene (PP) Metallized	14 mOhms	1.043 in	0.236 "	6 mm	26.5 mm	-55 C	110 °C	600 V	Radial	Automotive High Frequency Switching High Pulse DV/DT	0.886 in	22.5 mm	15.1 mm		AEC-Q200		PC Pins	0.594 in
KEMET R76QI21004040J	1 kV	1 kVDC	5 %	Through Hole	Polypropylene (PP) Metallized		0.709 in	0.157 "	4 mm	18 mm	-55 C	110 °C	600 V	Radial	Automotive High Frequency Switching High Pulse DV/DT	0.591 in	15 mm			AEC-Q200	10000 pF	PC Pins					0.398 in	10.1 mm
