DLCBSM Series

Catalog

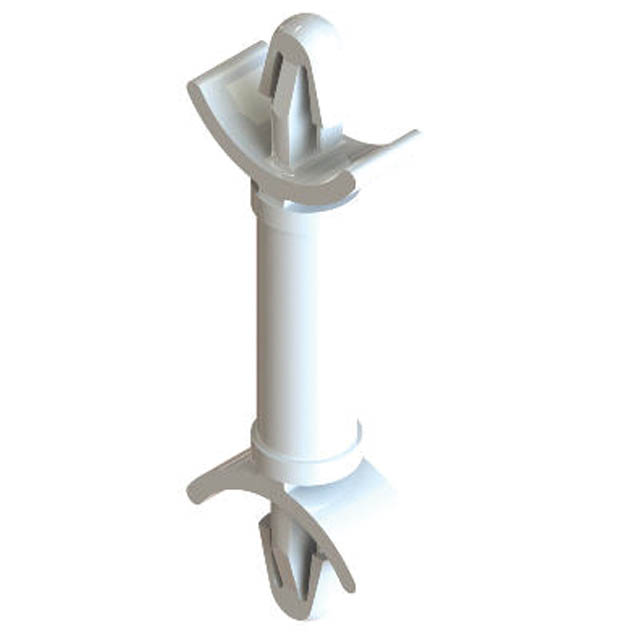

BRD SPT SNAP LOCK NYLON 7/16"

Part	Holding Type	Features	Between Board Height	Between Board Height	Between Board Height	Support Hole Diameter	Support Hole Diameter	Support Hole Diameter	Length - Overall	Length - Overall	Mounting Panel Thickness [Min]	Mounting Panel Thickness [Min]	Mounting Panel Thickness [Max]	Mounting Panel Thickness [Max]	Mounting Type	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Material	Support Panel Thickness [Min]	Support Panel Thickness [Min]	Support Panel Thickness [Max]	Support Panel Thickness [Max]	Length - Overall [x]	Length - Overall [x]
Essentra Components DLCBSM-7-01	Snap Lock	Winged	11.13 mm	0.438 in	0.4375 "	0.125 in	0.125 in	3.18 mm	24.1 mm	0.949 in	0.79 mm	0.031 in	0.078 "	1.98 mm	Snap Lock	3.18 mm	0.125 in	0.125 in	Nylon	0.031 in	0.79 mm	0.078 in	1.98 mm
Essentra Components DLCBSM-9-01	Snap Lock	Winged	14.3 mm	0.563 in	9 "	0.125 in	0.125 in	3.18 mm	27.3 mm	1.075 in	0.79 mm	0.031 in	0.078 "	1.98 mm	Snap Lock	3.18 mm	0.125 in	0.125 in	Nylon	0.031 in	0.79 mm	0.078 in	1.98 mm
Essentra Components DLCBSM-5-01	Snap Lock	Winged	7.95 mm	0.313 in	0.3125 in	0.125 in	0.125 in	3.18 mm			0.79 mm	0.031 in	0.078 "	1.98 mm	Snap Lock	3.18 mm	0.125 in	0.125 in	Nylon	0.031 in	0.79 mm	0.078 in	1.98 mm	0.823 in	20.9 mm
Essentra Components DLCBSM-4-01	Snap Lock	Winged	0.25 in	6.35 mm		0.125 in	0.125 in	3.18 mm	19.4 mm	0.764 in	0.79 mm	0.031 in	0.078 "	1.98 mm	Snap Lock	3.18 mm	0.125 in	0.125 in	Nylon	0.031 in	0.79 mm	0.078 in	1.98 mm
Essentra Components DLCBSM-8-01	Snap Lock	Winged	12.7 mm	0.5 in	0.5 in	0.125 in	0.125 in	3.18 mm			0.79 mm	0.031 in	0.078 "	1.98 mm	Snap Lock	3.18 mm	0.125 in	0.125 in	Nylon	0.031 in	0.79 mm	0.078 in	1.98 mm	1.012 in	25.7 mm
Essentra Components DLCBSM-10-01	Snap Lock	Winged	15.88 mm	0.625 in	5 8	0.125 in	0.125 in	3.18 mm			0.79 mm	0.031 in	0.078 "	1.98 mm	Snap Lock	3.18 mm	0.125 in	0.125 in	Nylon	0.031 in	0.79 mm	0.078 in	1.98 mm	1.138 in	28.9 mm
