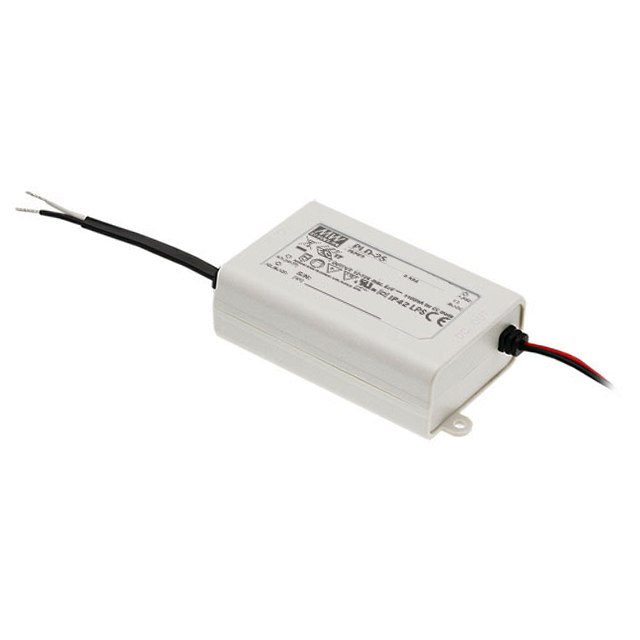

PLD-25 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
LED DRIVER CC AC/DC 12-18V 1.4A
| Part | Mounting Type | Features | Ratings | Voltage - Input (Min) [Min] | Voltage - Isolation | Number of Outputs | Voltage - Output [Min] | Voltage - Output [Max] | Efficiency | Approval Agency | Operating Temperature [Min] | Operating Temperature [Max] | Termination Style | Type | Topology | Current - Output (Max) [Max] | Power (Watts) | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Voltage - Input (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | Chassis Mount | OTP SCP | IP42 | 90 VAC | 3750 VDC | 1 | 12 V | 18 V | 84 % | CB CE cURus | -30 ░C | 60 °C | Wire Leads | Constant Current | AC DC Converter | 1.4 A | 25 W | 2.24 in | 29.5 mm | 3.31 " | 1.16 in | 84 mm | 57 mm | 295 VAC |
