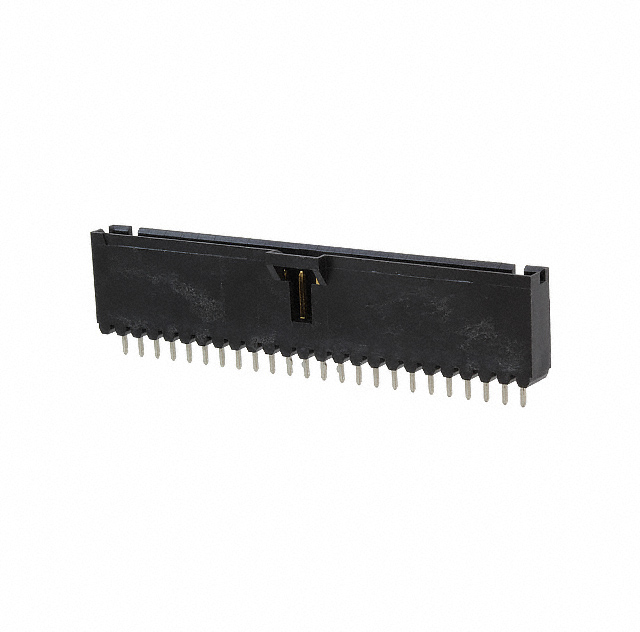

104909 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

23 MTE HDR SRST LATCH W/HLDWN

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Applications	Fastening Type	Contact Finish - Post	Overall Contact Length	Overall Contact Length	Features	Number of Positions	Contact Shape	Pitch - Mating	Pitch - Mating	Termination	Number of Positions Loaded	Insulation Height	Insulation Height	Contact Material	Insulation Color	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post	Contact Length - Post	Current Rating (Amps)	Style	Material Flammability Rating	Number of Rows	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Shrouding	Connector Type	Contact Finish - Mating	Mounting Type	Contact Length - Mating	Contact Length - Mating
TE Connectivity AMP Connectors 7-104909-2	2.54 µm	100 µin	Automotive General Purpose Medical Telecommunications	Latch Holder	Tin	13.84 mm	0.545 in	Keying Slot	23	Square	0.1 "	2.54 mm	Press-Fit Solder	All	13.6 mm	0.535 in	Brass	Black	Thermoplastic	0.38 µm	15 µin	0.13 "	3.3 mm	3 A	Board to Board Cable	UL94 V-0	1	Male Pin	105 ░C	-65 ░C	Shrouded - 4 Wall	Header	Gold	Through Hole	0.23 in	5.84 mm
TE Connectivity AMP Connectors 7-104909-3	2.54 µm	100 µin	Automotive General Purpose Medical Telecommunications	Latch Holder	Tin	13.84 mm	0.545 in	Keying Slot	24	Square	0.1 "	2.54 mm	Press-Fit Solder	All	13.6 mm	0.535 in	Brass	Black	Thermoplastic	0.38 µm	15 µin	0.13 "	3.3 mm	3 A	Board to Board Cable	UL94 V-0	1	Male Pin	105 ░C	-65 ░C	Shrouded - 4 Wall	Header	Gold	Through Hole	0.23 in	5.84 mm
TE Connectivity AMP Connectors 1-104909-7	2.54 µm	100 µin	Automotive General Purpose Medical Telecommunications	Latch Holder	Tin-Lead	13.84 mm	0.545 in	Keying Slot	18	Square	0.1 "	2.54 mm	Press-Fit Solder	All	13.6 mm	0.535 in	Brass	Black	Thermoplastic	0.38 µm	15 µin	0.13 "	3.3 mm	3 A	Board to Board Cable	UL94 V-0	1	Male Pin	105 ░C	-65 ░C	Shrouded - 4 Wall	Header	Gold	Through Hole	0.23 in	5.84 mm
TE Connectivity AMP Connectors 1-104909-2	2.54 µm	100 µin	Automotive General Purpose Medical Telecommunications	Latch Holder	Tin-Lead	13.84 mm	0.545 in	Keying Slot	13	Square	0.1 "	2.54 mm	Press-Fit Solder	All	13.6 mm	0.535 in	Brass	Black	Thermoplastic	0.38 µm	15 µin	0.13 "	3.3 mm	3 A	Board to Board Cable	UL94 V-0	1	Male Pin	105 ░C	-65 ░C	Shrouded - 4 Wall	Header	Gold	Through Hole	0.23 in	5.84 mm
TE Connectivity AMP Connectors 7-104909-0	2.54 µm	100 µin	Automotive General Purpose Medical Telecommunications	Latch Holder	Tin	13.84 mm	0.545 in	Keying Slot	21	Square	0.1 "	2.54 mm	Press-Fit Solder	All	13.6 mm	0.535 in	Brass	Black	Thermoplastic	0.38 µm	15 µin	0.13 "	3.3 mm	3 A	Board to Board Cable	UL94 V-0	1	Male Pin	105 ░C	-65 ░C	Shrouded - 4 Wall	Header	Gold	Through Hole	0.23 in	5.84 mm
