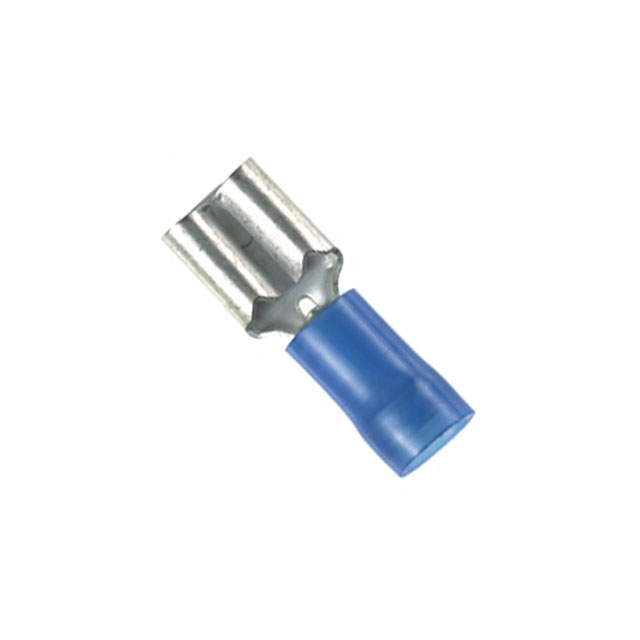

DNF14 Series

Catalog

QUICK DISCONNECT TERMINAL, DNF-FIB SERIES, FEMALE QUICK DISCONNECT, 4.8MM X 0.5MM, 0.187" X 0.02"

Part	Insulation Diameter [diameter]	Insulation Diameter	Tab Width [x]	Tab Width [x]	Color	Gender	Terminal Type	Insulation	Contact Material	Wire Gauge [Min]	Wire Gauge [Max]	Tab Thickness	Tab Thickness	Features	Termination	Contact Finish	Mounting Type	Length - Overall [x]	Length - Overall [x]	Insulation Diameter [diameter]	Tab Width	Tab Width	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]

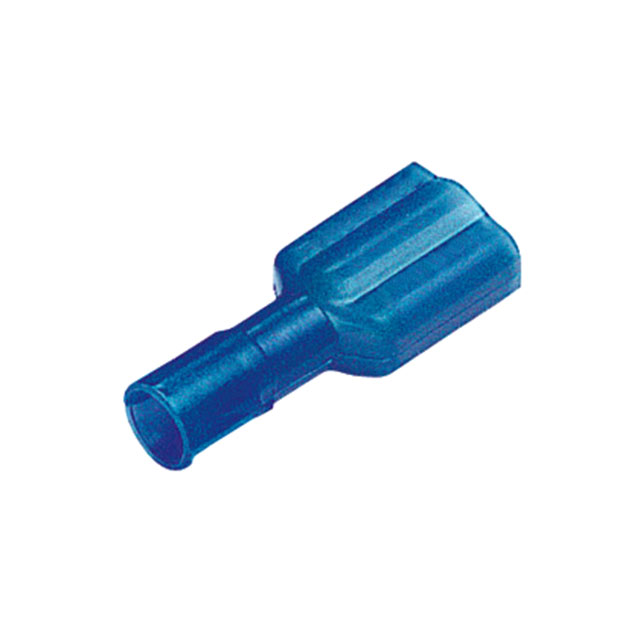

Panduit Corp DNF14-188FIB-3K	0.16 in	4.06 mm	0.187 in	4.75 mm	Blue	Female	Standard	Fully Insulated	Brass	14 AWG	16 AWG	0.02 in	0.51 mm	Butted Seam	Crimp	Tin	Free Hanging (In-Line)	0.78 in	19.81 mm

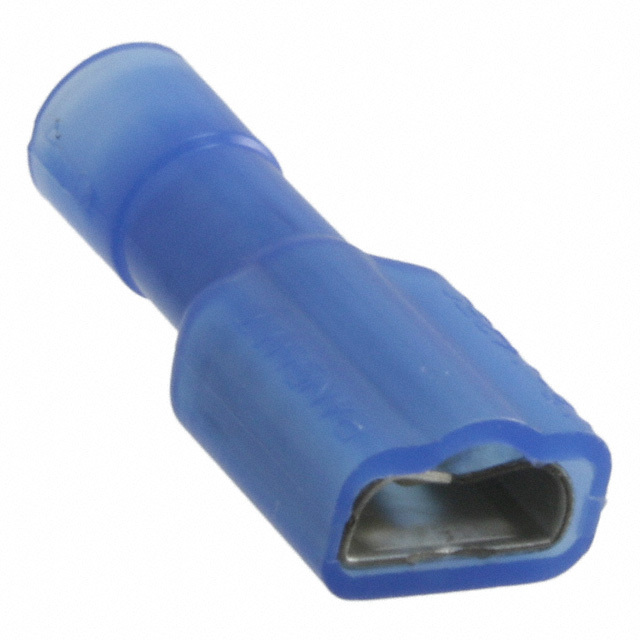

Panduit Corp DNF14-250FIB-C	0.16 in	4.06 mm	0.25 in	6.35 mm	Blue	Female	Standard	Fully Insulated	Brass	14 AWG	16 AWG	0.032 in	0.81 mm	Serrated Termination	Crimp	Tin	Free Hanging (In-Line)	0.84 in	21.34 mm

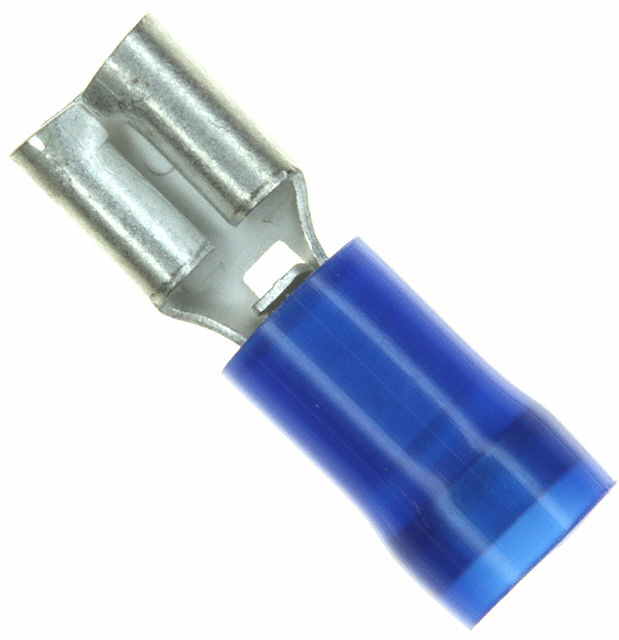

Panduit Corp DNF14-187-M	0.162 in		0.187 in	4.75 mm	Blue	Female	Standard	Non-Mating End Insulated	Brass	14 AWG	16 AWG	0.032 in	0.81 mm	Serrated Termination	Crimp	Tin	Free Hanging (In-Line)	0.76 "	19.3 mm	4.11 mm
Panduit Corp DNF14-206FIB-3K	0.16 in	4.06 mm			Blue	Female	Standard	Fully Insulated	Brass	14 AWG	16 AWG	0.02 in	0.51 mm	Butted Seam	Crimp	Tin	Free Hanging (In-Line)	0.78 in	19.81 mm		0.187 " 0.205 in	4.75 mm 5.21 mm
Panduit Corp DNF14-205-M	0.162 in				Blue	Female	Standard	Non-Mating End Insulated	Brass	14 AWG	16 AWG	0.032 in	0.81 mm	Serrated Termination	Crimp	Tin	Free Hanging (In-Line)	0.76 "	19.3 mm	4.11 mm	0.187 " 0.205 in	4.75 mm 5.21 mm
Panduit Corp DNF14-205-C	0.162 in				Blue	Female	Standard	Non-Mating End Insulated	Brass	14 AWG	16 AWG	0.032 in	0.81 mm	Serrated Termination	Crimp	Tin	Free Hanging (In-Line)	0.76 "	19.3 mm	4.11 mm	0.187 " 0.205 in	4.75 mm 5.21 mm

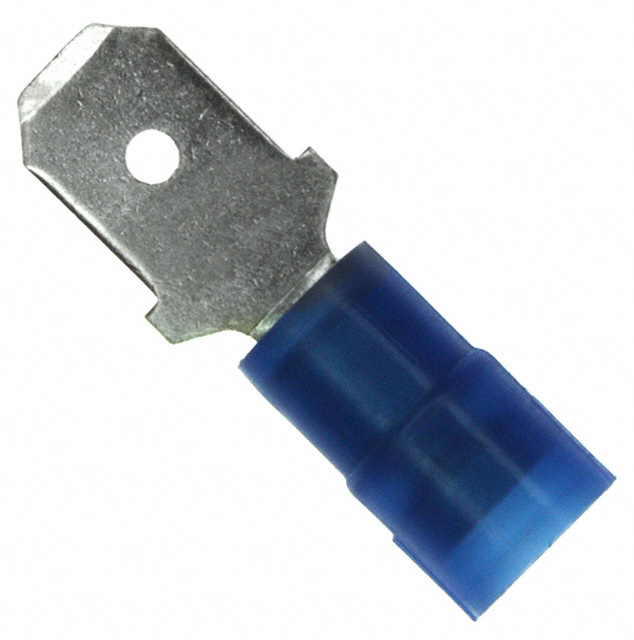

Panduit Corp DNF14-250M-C			0.25 in	6.35 mm	Blue	Male	Standard	Non-Mating End Insulated	Copper	14 AWG	16 AWG	0.032 in	0.81 mm	Serrated Termination	Crimp	Nickel	Free Hanging (In-Line)	0.9 "	22.86 mm				0.05 "	0.162 "	1.27 mm	4.11 mm

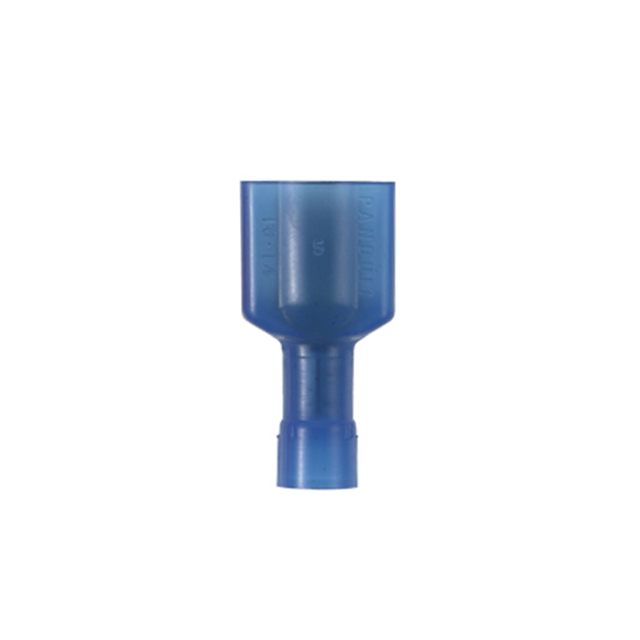

Panduit Corp DNF14-250FIM-L	0.158 in		0.25 in	6.35 mm	Blue	Male	Standard	Fully Insulated	Brass	14 AWG	16 AWG	0.032 in	0.81 mm	Serrated Termination	Crimp	Nickel	Free Hanging (In-Line)	0.9 "	22.86 mm	4.01 mm

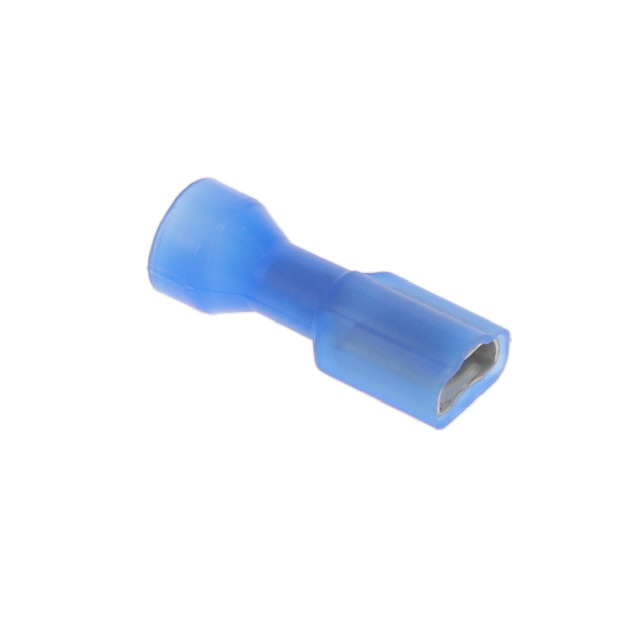

Panduit Corp DNF14250FIBX-L	0.24 "		0.25 in	6.35 mm	Blue	Female	Standard	Fully Insulated	Brass	14 AWG	16 AWG	0.032 in	0.81 mm	Butted Seam	Crimp	Tin	Free Hanging (In-Line)	0.93 in	23.62 mm	6.1 mm
Panduit Corp DNF14-250FIM-2K	0.158 in		0.25 in	6.35 mm	Blue	Male	Standard	Fully Insulated	Brass	14 AWG	16 AWG	0.032 in	0.81 mm	Serrated Termination	Crimp	Nickel	Free Hanging (In-Line)	0.9 "	22.86 mm	4.01 mm
