845-120 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FML 120POS 0.100

...

Part	Material - Insulation	Termination Rows [custom]	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Number of Positions	Contact Finish	Mounting Type	Flange Feature	Contact Finish Thickness	Contact Finish Thickness	Card Type	Read Out	Features	Pitch	Pitch	Card Thickness [Max]	Card Thickness [Min]	Gender	Contact Material	Color	Number of Rows [custom]	Number of Positions/Bay/Row [custom]	Flange Feature [diameter]	Flange Feature [diameter]

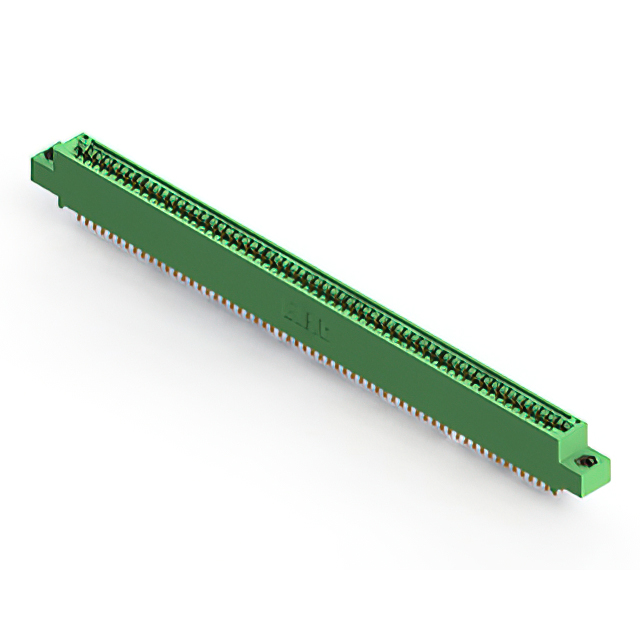

EDAC Inc. 845-120-556-508	Diallyl Phthalate (DAP)	2	Solder	125 °C	-40 C	Cantilever	120	Gold	Board Edge Straddle Mount	4-40 Threaded Insert Top Mount Opening	0.25 Ám	10 Áin	Non Specified - Dual Edge	Dual	Card Extender	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Copper Alloy	Green	2	60
EDAC Inc. 845-120-544-807	Diallyl Phthalate (DAP)	2	Wire Wrap	125 °C	-40 C	Cantilever	120	Gold	Through Hole	M3 Threaded Insert Top Mount Opening	0.25 Ám	10 Áin	Non Specified - Dual Edge	Dual		0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Copper Alloy	Green	2	60
EDAC Inc. 845-120-541-504	Diallyl Phthalate (DAP)	2	Wire Wrap	125 °C	-40 C	Cantilever	120	Gold	Through Hole		0.25 Ám	10 Áin	Non Specified - Dual Edge	Dual		0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Copper Alloy	Green	2	60	0.156 "	3.96 mm

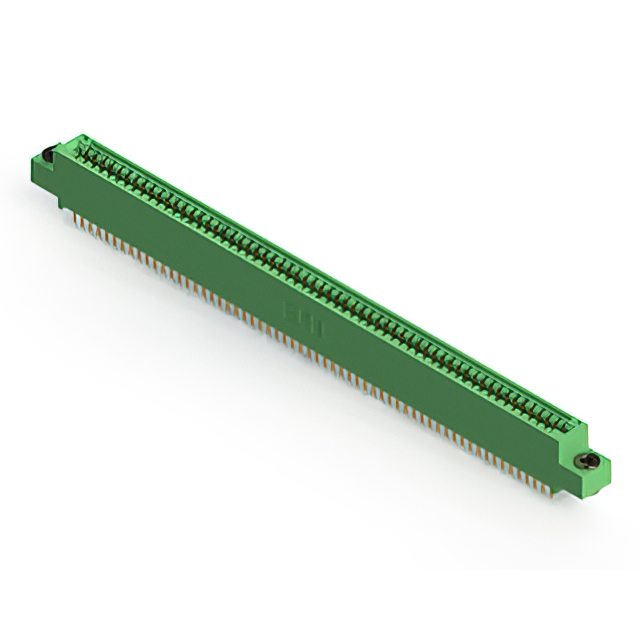

EDAC Inc. 845-120-525-503	Diallyl Phthalate (DAP)	2	Solder	125 °C	-40 C	Cantilever	120	Gold	Through Hole	Floating Bobbin Top Mount Opening	0.25 Ám	10 Áin	Non Specified - Dual Edge	Dual		0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Copper Alloy	Green	2	60	0.116 "	2.95 mm

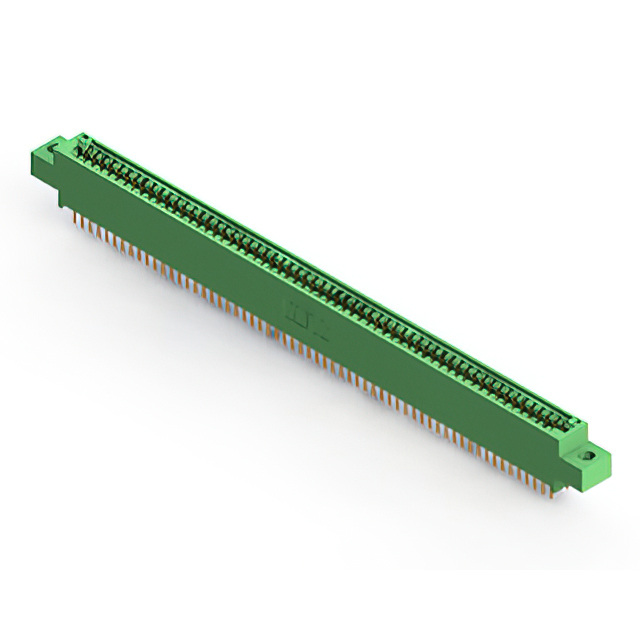

EDAC Inc. 845-120-524-804	Diallyl Phthalate (DAP)	2	Solder	125 °C	-40 C	Cantilever	120	Gold	Through Hole		0.25 Ám	10 Áin	Non Specified - Dual Edge	Dual		0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Copper Alloy	Green	2	60	0.156 "	3.96 mm

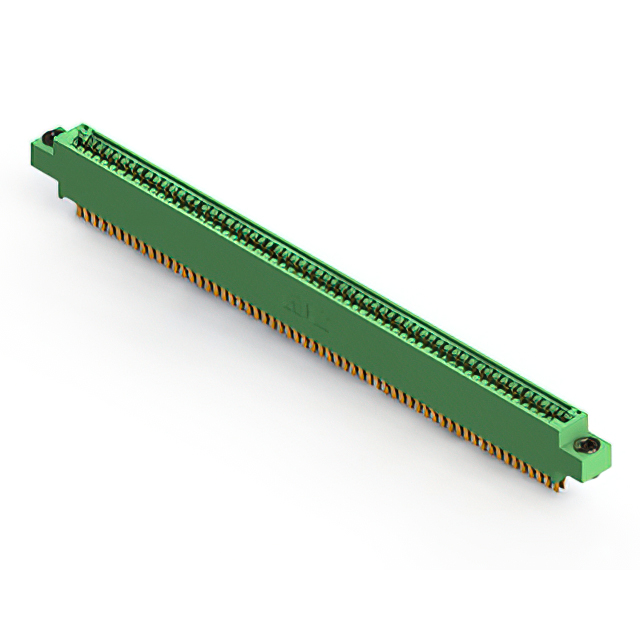

EDAC Inc. 845-120-560-803	Diallyl Phthalate (DAP)	2	Solder	125 °C	-40 C	Cantilever	120	Gold	Board Edge Straddle Mount	Floating Bobbin Top Mount Opening	0.25 Ám	10 Áin	Non Specified - Dual Edge	Dual	Card Extender	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Copper Alloy	Green	2	60	0.116 "	2.95 mm

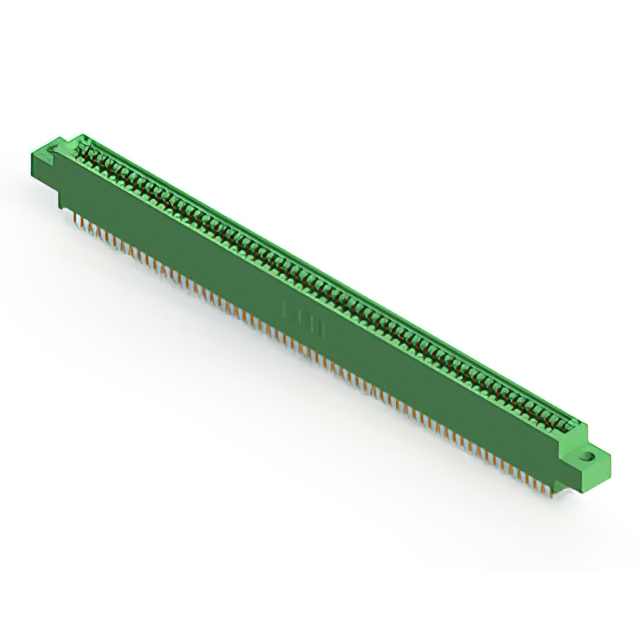

EDAC Inc. 845-120-525-804	Diallyl Phthalate (DAP)	2	Solder	125 °C	-40 C	Cantilever	120	Gold	Through Hole		0.25 Ám	10 Áin	Non Specified - Dual Edge	Dual		0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Copper Alloy	Green	2	60	0.156 "	3.96 mm

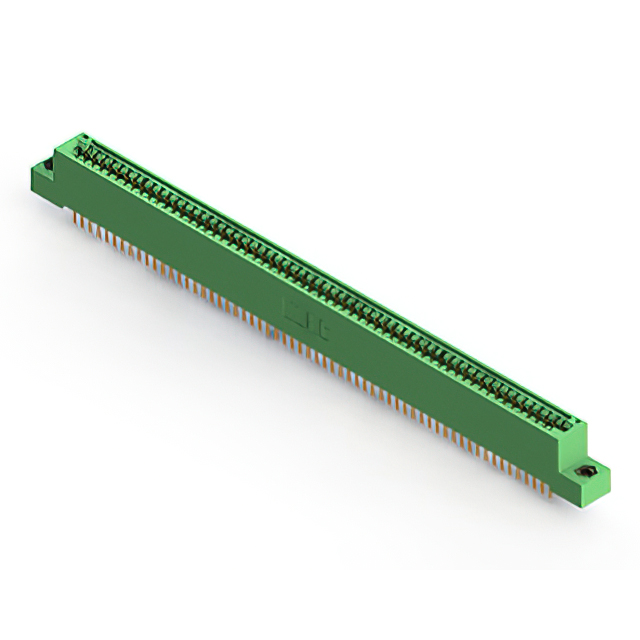

EDAC Inc. 845-120-524-207	Diallyl Phthalate (DAP)	2	Solder	125 °C	-40 C	Cantilever	120	Gold	Through Hole	Flush Mount M3 Threaded Insert Top Opening	0.25 Ám	10 Áin	Non Specified - Dual Edge	Dual		0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Copper Alloy	Green	2	60
EDAC Inc. 845-120-558-507	Diallyl Phthalate (DAP)	2	Solder	125 °C	-40 C	Cantilever	120	Gold	Right Angle Through Hole	M3 Threaded Insert Top Mount Opening	0.25 Ám	10 Áin	Non Specified - Dual Edge	Dual		0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Copper Alloy	Green	2	60
EDAC Inc. 845-120-541-802	Diallyl Phthalate (DAP)	2	Wire Wrap	125 °C	-40 C	Cantilever	120	Gold	Through Hole		0.25 Ám	10 Áin	Non Specified - Dual Edge	Dual		0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Copper Alloy	Green	2	60	0.128 "	3.25 mm
