M50-361 Series

Catalog

CONN, HEADER, 12POS, 2ROW, 1.27MM ROHS COMPLIANT: YES

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mated Stacking Heights	Style	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Number of Positions	Mounting Type	Termination	Fastening Type	Number of Positions Loaded	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Contact Finish - Mating	Material Flammability Rating	Contact Length - Mating	Contact Length - Mating	Shrouding	Insulation Height [z]	Insulation Height [z]	Contact Shape	Row Spacing - Mating	Row Spacing - Mating	Contact Finish - Post	Voltage Rating	Number of Rows [custom]	Insulation Color	Features	Pitch - Mating	Pitch - Mating

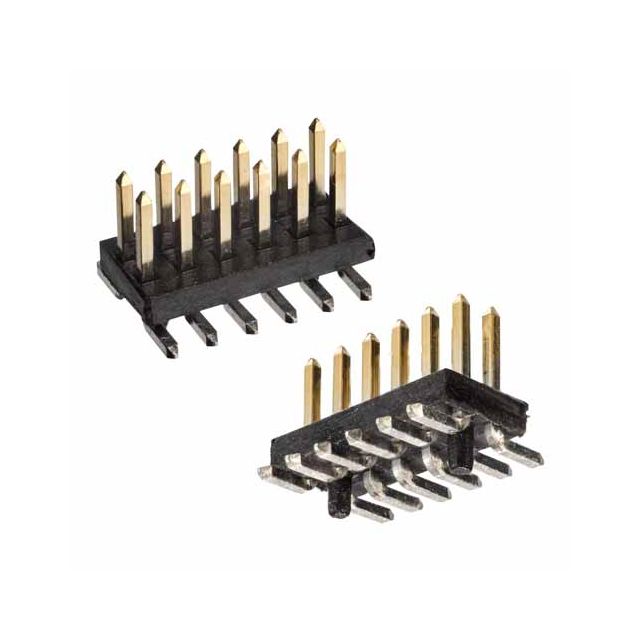

Harwin Inc. M50-3610642	2.03 µm	80 µin	3.9 mm 5.3 mm 6.08 mm 6.18 mm	Board to Board Cable	Male Pin	8 µin	0.203 µm	Brass	12	Surface Mount	Solder	Push-Pull	All	Thermoplastic	-55 C	105 ░C	Header	Gold	UL94 V-0	3 mm	0.118 in	Unshrouded	1 mm	0.039 in	Square	0.05 in	1.27 mm	Tin	250 VAC	2	Black	Board Guide	1.27 mm	0.05 in

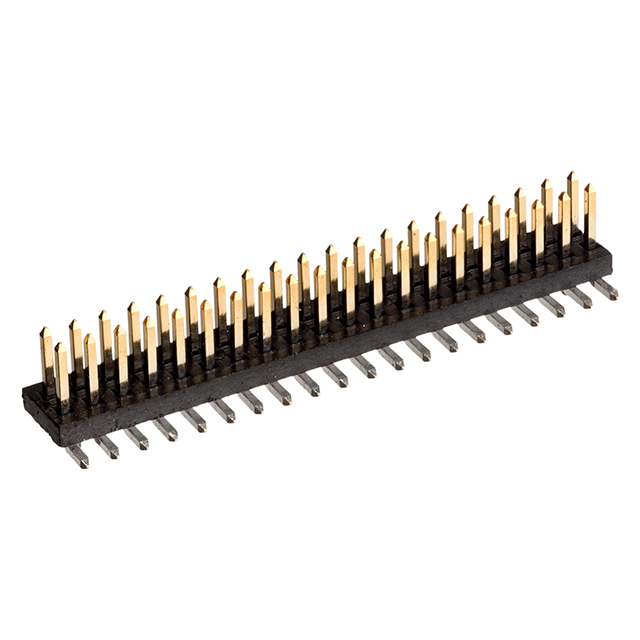

Harwin Inc. M50-3612042	2.03 µm	80 µin	3.9 mm 5.3 mm 6.08 mm 6.18 mm 7 mm	Board to Board Cable	Male Pin	1 µin	0.025 µm	Brass	40	Surface Mount	Solder	Push-Pull	All	Thermoplastic	-55 C	105 ░C	Header	Gold	UL94 V-0	3 mm	0.118 in	Unshrouded	1 mm	0.039 in	Square	0.05 in	1.27 mm	Tin	250 V	2	Black	Board Guide	1.27 mm	0.05 in

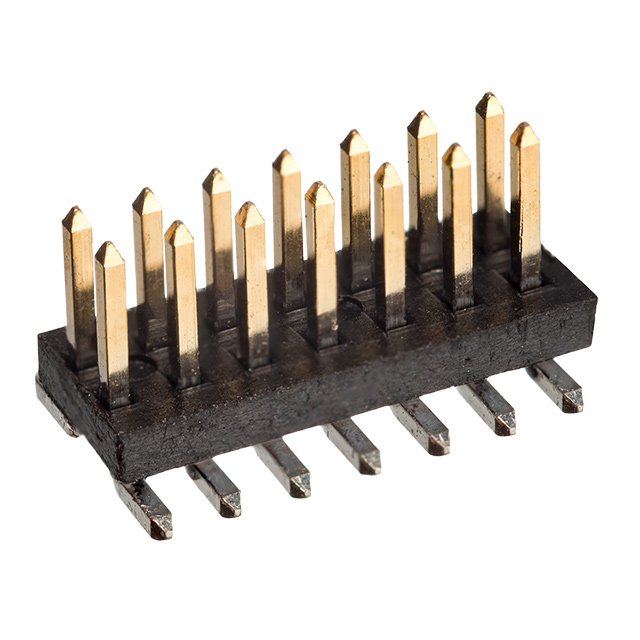

Harwin Inc. M50-3610742R	2.03 µm	80 µin		Board to Board Cable	Male Pin	1 µin	0.025 µm	Brass	14	Surface Mount	Solder	Push-Pull	All	Thermoplastic	-55 C	105 ░C	Header	Gold	UL94 V-0	3 mm	0.118 in	Unshrouded	1 mm	0.039 in	Square	0.05 in	1.27 mm	Tin	250 V	2	Black	Board Guide Pick and Place	1.27 mm	0.05 in
Harwin Inc. M50-3610642R	2.03 µm	80 µin	3.9 mm 5.3 mm 6.08 mm 6.18 mm 7 mm	Board to Board Cable	Male Pin	1 µin	0.025 µm	Brass	12	Surface Mount	Solder	Push-Pull	All	Thermoplastic	-55 C	105 ░C	Header	Gold	UL94 V-0	3 mm	0.118 in	Unshrouded	1 mm	0.039 in	Square	0.05 in	1.27 mm	Tin	250 V	2	Black	Board Guide Pick and Place	1.27 mm	0.05 in
Harwin Inc. M50-3610542	2.03 µm	80 µin	3.9 mm 5.3 mm 6.08 mm 6.18 mm 7 mm	Board to Board Cable	Male Pin	1 µin	0.025 µm	Brass	10	Surface Mount	Solder	Push-Pull	All	Thermoplastic	-55 C	105 ░C	Header	Gold	UL94 V-0	3 mm	0.118 in	Unshrouded	1 mm	0.039 in	Square	0.05 in	1.27 mm	Tin	250 V	2	Black	Board Guide	1.27 mm	0.05 in
Harwin Inc. M50-3610542R	2.03 µm	80 µin		Board to Board Cable	Male Pin	1 µin	0.025 µm	Brass	10	Surface Mount	Solder	Push-Pull	All	Thermoplastic	-55 C	105 ░C	Header	Gold	UL94 V-0	3 mm	0.118 in	Unshrouded	1 mm	0.039 in	Square	0.05 in	1.27 mm	Tin	250 V	2	Black	Board Guide Pick and Place	1.27 mm	0.05 in
