725-033 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SINGLE FML 33POS 0.100

Part	Material - Insulation	Termination Rows	Contact Finish	Gender	Contact Type	Color	Card Type	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Number of Positions [custom]	Contact Material	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Card Thickness [Max]	Card Thickness [Min]	Read Out	Pitch	Pitch	Number of Positions/Bay/Row	Mounting Type

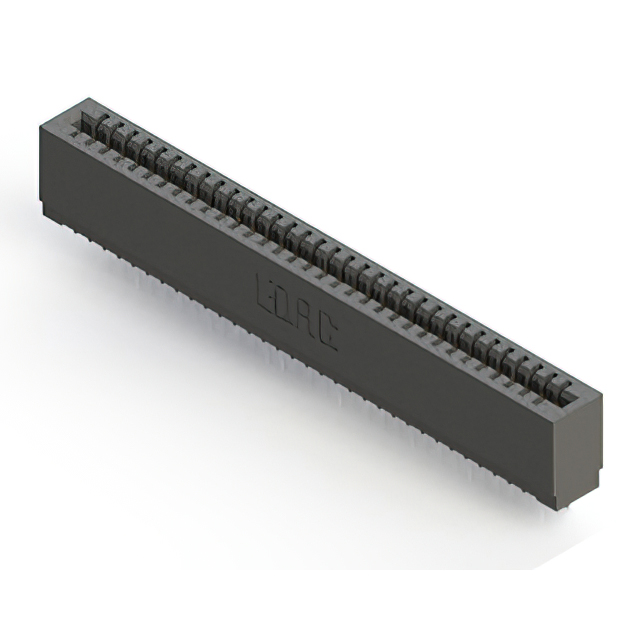

EDAC Inc. 725-033-520-101	Polyester Thermoplastic	1	Gold	Female	Cantilever	Black	Non Specified - Single Edge	-40 C	105 ░C	Press-Fit	33	Copper Alloy	1	30 Áin	0.76 Ám	0.07 in 1.78 mm	0.054 in 1.37 mm	Single	0.1 "	2.54 mm	33	Through Hole
EDAC Inc. 725-033-522-101	Polyester Thermoplastic	1	Gold	Female	Cantilever	Black	Non Specified - Single Edge	-40 C	105 ░C	Press-Fit	33	Copper Alloy	1	30 Áin	0.76 Ám	0.07 in 1.78 mm	0.054 in 1.37 mm	Single	0.1 "	2.54 mm	33	Through Hole
EDAC Inc. 725-033-540-101	Polyester Thermoplastic	1	Gold	Female	Cantilever	Black	Non Specified - Single Edge	-40 C	105 ░C	Press-Fit Wire Wrap	33	Copper Alloy	1	30 Áin	0.76 Ám	0.07 in 1.78 mm	0.054 in 1.37 mm	Single	0.1 "	2.54 mm	33	Through Hole
EDAC Inc. 725-033-545-101	Polyester Thermoplastic	1	Gold	Female	Cantilever	Black	Non Specified - Single Edge	-40 C	105 ░C	Press-Fit Wire Wrap	33	Copper Alloy	1	30 Áin	0.76 Ám	0.07 in 1.78 mm	0.054 in 1.37 mm	Single	0.1 "	2.54 mm	33	Through Hole

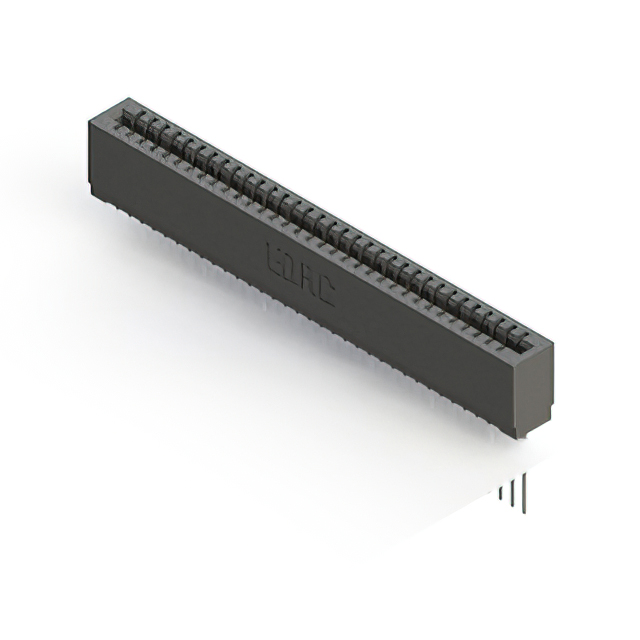

EDAC Inc. 725-033-541-101	Polyester Thermoplastic	1	Gold	Female	Cantilever	Black	Non Specified - Single Edge	-40 C	105 ░C	Press-Fit Wire Wrap	33	Copper Alloy	1	30 Áin	0.76 Ám	0.07 in 1.78 mm	0.054 in 1.37 mm	Single	0.1 "	2.54 mm	33	Through Hole
EDAC Inc. 725-033-525-101	Polyester Thermoplastic	1	Gold	Female	Cantilever	Black	Non Specified - Single Edge	-40 C	105 ░C	Press-Fit	33	Copper Alloy	1	30 Áin	0.76 Ám	0.07 in 1.78 mm	0.054 in 1.37 mm	Single	0.1 "	2.54 mm	33	Through Hole
