5000UL Series
Manufacturer: Belden Inc.
Beta
⌘K

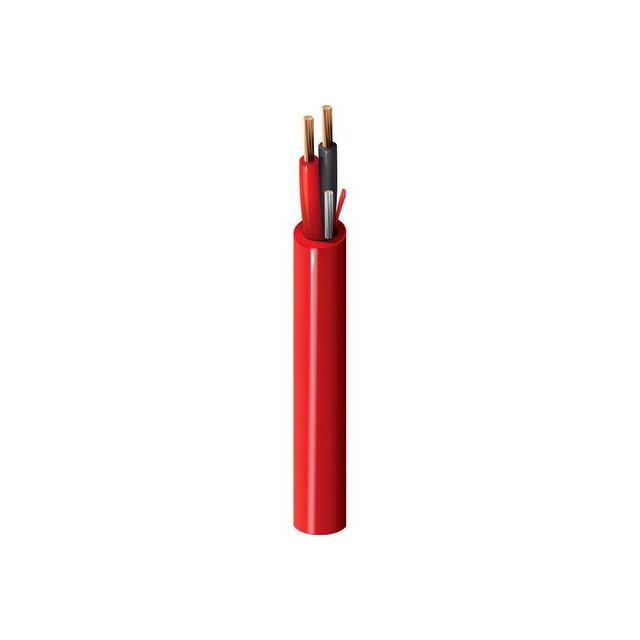

CABLE 2COND 12AWG RED
| Part | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket Color | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Material | Ratings | Usage | Number of Conductors | Cable Type | Length | Length | Conductor Insulation | Wire Gauge | Voltage | Features | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 6.6 mm | 0.26 in | Red | 0.017 " | 0.432 mm | Poly-Vinyl Chloride (PVC) Riser | UL Style FPLR | Alarm Safety | 2 | Multi-Conductor | 304.8 m | 1000 ft | Polypropylene (PP) | 12 AWG | 300 VDC | Rip Cord | 19 | 25 AWG | Copper Bare |
Belden Inc. | 6.6 mm | 0.26 in | Red | 0.017 " | 0.432 mm | Poly-Vinyl Chloride (PVC) Riser | UL Style FPLR | Alarm Safety | 2 | Multi-Conductor | 304.8 m | 1000 ft | Polypropylene (PP) | 12 AWG | 300 VDC | Rip Cord | 19 | 25 AWG | Copper Bare |
