PR20B03VB Series
Manufacturer: METZ CONNECT USA Inc.
Beta
⌘K

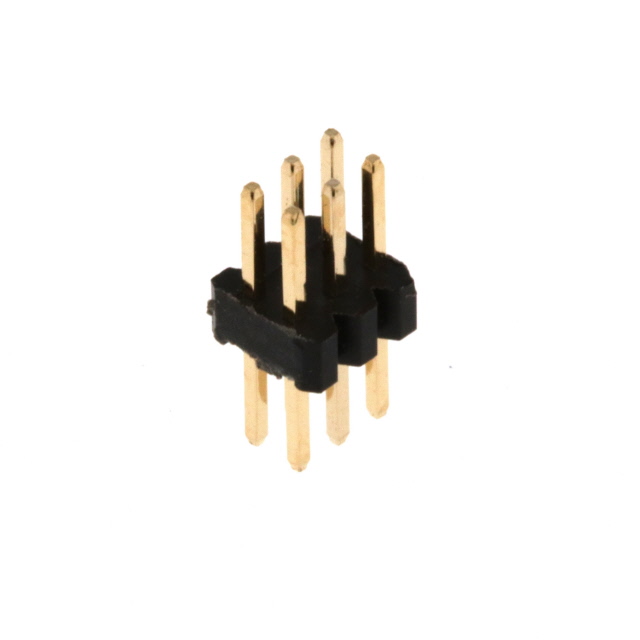

PIN HEADER, THR, DUAL ROW, 1.27
| Part | Overall Contact Length | Overall Contact Length | Number of Positions Loaded | Mounting Type | Pitch - Mating | Pitch - Mating | Contact Material | Shrouding | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness - Mating | Contact Length - Mating | Contact Length - Mating | Connector Type | Contact Length - Post [custom] | Contact Length - Post | Number of Rows [custom] | Insulation Height | Insulation Height | Insulation Color | Contact Finish - Mating | Insulation Material | Number of Positions | Contact Type | Contact Shape | Row Spacing - Mating | Row Spacing - Mating | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 METZ CONNECT USA Inc. | 7.3 mm | 0.287 in | All | Through Hole | 1.27 mm | 0.05 in | Copper Zinc | Unshrouded | Solder | -40 C | 105 ░C | Flash | 3 mm | 0.118 in | Header | 0.11 in | 2.79 mm | 2 | 0.059 in | 1.5 mm | Black | Gold | Polyethylene | 6 | Male Pin | Square | 0.05 in | 1.27 mm | Push-Pull |
