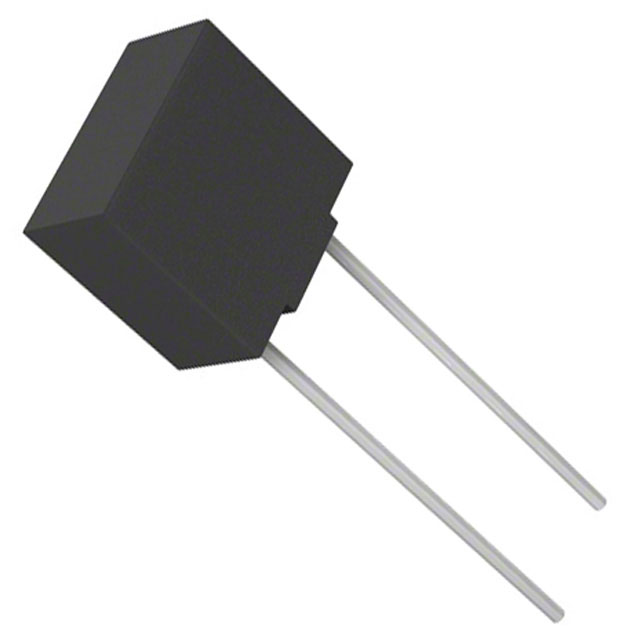

39606300000 Series

FUSE 125V UL TL TE5 LL AMMO .630A

Catalog

FUSE 125V UL TL TE5 LL AMMO .630A

Part	Voltage Rating - AC	Fuse Type	Response Time	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	DC Cold Resistance	Approval Agency	Breaking Capacity @ Rated Voltage	Current Rating (Amps)	Melting I²t	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case
Littelfuse/Commercial Vehicle Products 39606300000	125 V	Board Mount	Slow Blow	8 mm	4 mm	0.315 "	8.5 mm	0.335 "	0.157 in	Through Hole	0.185 Ohms	cUL UL	100 A	0.63 A	1.15 I²t	85 °C	-40 °C	Radial Box

FUSE 125V UL TL TE5 LL AMMO .630A

• Lead free

• Reduced PCB space requirements

• Direct solderable or plug-in versions

• Internationally approved

• Low internal resistance

• Shocksafe casing

• Vibration resistance

• Halogen free
