K85X-ED Series
Manufacturer: Kycon, Inc.
Beta
⌘K

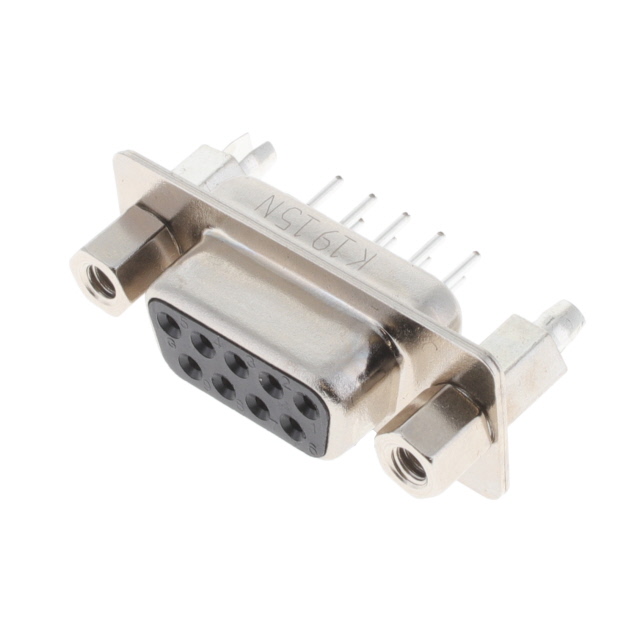

CONN D-SUB RCPT 9POS VERT SOLDER
| Part | Contact Form | Contact Material | Voltage Rating | Color | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Connector Type | Contact Type | Termination | Shell Material, Finish | Number of Rows [custom] | Contact Finish Thickness | Contact Finish Thickness | Material Flammability Rating | Mounting Type | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Contact Finish | Flange Feature | Connector Style | Features | Number of Positions | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Kycon, Inc. | Stamped | Brass | 30 VDC | Black | Polybutylene Terephthalate (PBT) Glass Filled | -55 C | 105 ░C | 2 A | Receptacle Female Sockets | Signal | Solder | Nickel Plated Steel | 2 | 30 Áin | 0.76 Ám | UL94 V-0 | Through Hole | 1 | DE E | Gold | Board Side (4-40) | D-Sub | Board Lock | 9 | |
 Kycon, Inc. | Stamped | Brass | 30 VDC | Black | Polybutylene Terephthalate (PBT) Glass Filled | -55 C | 105 ░C | 2 A | Receptacle Female Sockets | Signal | Solder | Nickel Plated Steel | 2 | UL94 V-0 | Through Hole | 1 | DE E | Gold | Board Side (4-40) Mating Side Female Screwlock (4-40) | D-Sub | Board Lock | 9 | Flash | ||
 Kycon, Inc. | Stamped | Brass | 30 VDC | Black | Polybutylene Terephthalate (PBT) Glass Filled | -55 C | 105 ░C | 2 A | Receptacle Female Sockets | Signal | Solder | Nickel Plated Steel | 2 | 30 Áin | 0.76 Ám | UL94 V-0 | Through Hole | 1 | DE E | Gold | Board Side (4-40) Mating Side Female Screwlock (4-40) | D-Sub | 9 |
