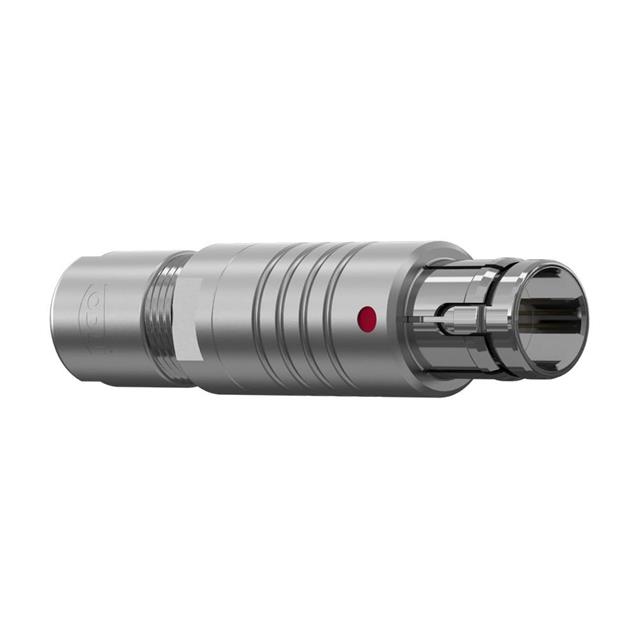

S30B0C-P Series
Manufacturer: ODU
Beta
⌘K
CONN CIRC PLUG 9 POS SOLDER
| Part | Mounting Type | Fastening Type | Connector Type | Ingress Protection | Shell Finish | Color | Current Rating (Amps) | Contact Finish - Mating | Cable Opening [Min] | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Max] | Number of Positions | Shell Size - Insert [custom] | Primary Material | Shielding | Shell Material | Orientation | Operating Temperature [Max] | Operating Temperature [Min] | Insert Material | Backshell Material, Plating | Features | Contact Material | Applications | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Free Hanging (In-Line) | Push-Pull | Plug Male Pins | IP68 - Dust Tight Waterproof | Chrome | Silver | 4 A | Gold | 0.177 in | 5 mm | 4.5 mm | 0.197 in | 9 | 0 | Metal | Shielded | Brass | 0 | 120 °C | -40 C | |||||||
Free Hanging (In-Line) | Push-Pull | Plug Male Pins | IP68 - Dust Tight Waterproof | Chrome over Nickel | Silver | 4 A | Gold | 0.118 in | 3.5 mm | 3 mm | 0.138 in | 7 | 0 | Metal | Unshielded | Brass | 0 | 120 °C | -40 C | Polyetheretherketone (PEEK) | Brass Chrome over Nickel | Backshell | Brass | Industrial Medical Military Testing Equipment & Measurement | 300 VDC | |
Free Hanging (In-Line) | Push-Pull | Plug Male Pins | IP68 - Dust Tight Waterproof | Chrome over Nickel | Silver | 4 A | Gold | 0.157 in | 4.5 mm | 4 mm | 0.177 " | 10 | 0 | Metal | Unshielded | Brass | 0 | 120 °C | -40 C | Polyetheretherketone (PEEK) | Brass Chrome over Nickel | Backshell | Brass | Industrial Medical Military Testing Equipment & Measurement | 200 V | |
Free Hanging (In-Line) | Push-Pull | Plug Male Pins | IP68 - Dust Tight Waterproof | Chrome over Nickel | Silver | 6 A | Gold | 0.118 in | 3.5 mm | 3 mm | 0.138 in | 5 | 0 | Metal | Unshielded | Brass | 0 | 120 °C | -40 C | Polyetheretherketone (PEEK) | Brass Chrome over Nickel | Backshell | Brass | Industrial Medical Military Testing Equipment & Measurement | 366 V | |
Free Hanging (In-Line) | Push-Pull | Plug Male Pins | IP68 - Dust Tight Waterproof | Chrome over Nickel | Silver | 7.5 A | Gold | 0.177 in | 5 mm | 4.5 mm | 0.197 in | 4 | 0 | Metal | Unshielded | Brass | 0 | 120 °C | -40 C | Polyetheretherketone (PEEK) | Brass Chrome over Nickel | Backshell | Brass | Industrial Medical Military Testing Equipment & Measurement | 300 VDC | |
Free Hanging (In-Line) | Push-Pull | Plug Male Pins | IP68 - Dust Tight Waterproof | Chrome over Nickel | Silver | 4 A | Gold | 0.157 in | 4.5 mm | 4 mm | 0.177 " | 7 | 0 | Metal | Unshielded | Brass | 0 | 120 °C | -40 C | Polyetheretherketone (PEEK) | Brass Chrome over Nickel | Backshell | Brass | Industrial Medical Military Testing Equipment & Measurement | 300 VDC | |
Free Hanging (In-Line) | Push-Pull | Plug Male Pins | IP68 - Dust Tight Waterproof | Chrome over Nickel | Silver | 7.5 A | Gold | 0.157 in | 4.5 mm | 4 mm | 0.177 " | 2 | 0 | Metal | Unshielded | Brass | 0 | 120 °C | -40 C | Polyetheretherketone (PEEK) | Brass Chrome over Nickel | Backshell | Brass | Industrial Medical Military Testing Equipment & Measurement | 500 V | |
Free Hanging (In-Line) | Push-Pull | Plug Male Pins | IP68 - Dust Tight Waterproof | Chrome over Nickel | Silver | 7.5 A | Gold | 0.177 in | 5 mm | 4.5 mm | 0.197 in | 5 | 0 | Metal | Unshielded | Brass | 0 | 120 °C | -40 C | Polyetheretherketone (PEEK) | Brass Chrome over Nickel | Backshell | Brass | Industrial Medical Military Testing Equipment & Measurement | 200 V | |
Free Hanging (In-Line) | Push-Pull | Plug Male Pins | IP68 - Dust Tight Waterproof | Chrome over Nickel | Silver | 4 A | Gold | 0.138 " | 4 mm | 3.5 mm | 0.157 in | 7 | 0 | Metal | Unshielded | Brass | 0 | 120 °C | -40 C | Polyetheretherketone (PEEK) | Brass Chrome over Nickel | Backshell | Brass | Industrial Medical Military Testing Equipment & Measurement | 300 VDC | |
Free Hanging (In-Line) | Push-Pull | Plug Male Pins | IP68 - Dust Tight Waterproof | Chrome over Nickel | Silver | 7.5 A | Gold | 0.157 in | 4.5 mm | 4 mm | 0.177 " | 4 | 0 | Metal | Unshielded | Brass | 0 | 120 °C | -40 C | Polyetheretherketone (PEEK) | Brass Chrome over Nickel | Backshell | Brass | Industrial Medical Military Testing Equipment & Measurement | 300 VDC |
