XZFDGK20 Series
Manufacturer: SunLED
Beta
⌘K

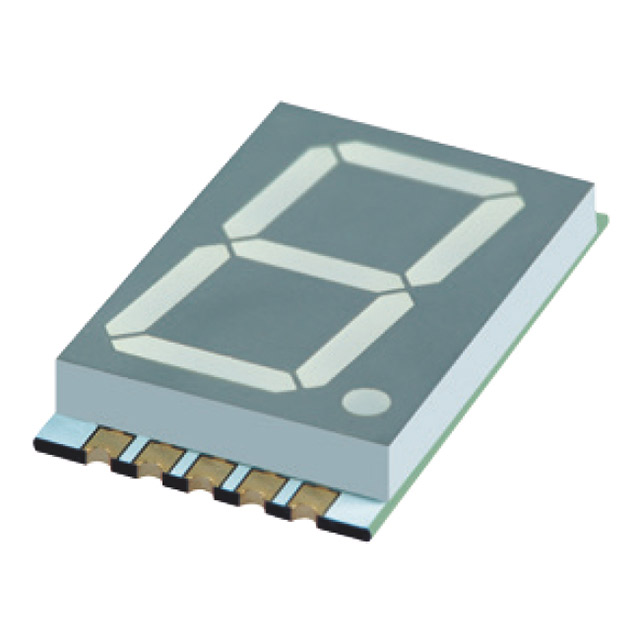

DISPLAY 7SEG 0.8" SGL GRN 10SMD
| Part | Common Pin | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Display Type | Voltage - Forward (Vf) (Typ) | Package / Case | Number of Characters | Current - Test | Digit/Alpha Size | Digit/Alpha Size | Color | Wavelength - Peak | Power Dissipation (Max) | Millicandela Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SunLED | Common Anode | 0.945 " | 3.75 mm | 0.148 in | 0.661 in | 24 mm | 16.8 mm | 7-Segment | 3 V | 10-SMD No Lead | 1 | 10 mA | 0.8 in | 20.32 mm | Green | 515 nm | 102.5 mW | 40 mcd |
 SunLED | Common Cathode | 0.945 " | 3.75 mm | 0.148 in | 0.661 in | 24 mm | 16.8 mm | 7-Segment | 3 V | 10-SMD No Lead | 1 | 10 mA | 0.8 in | 20.32 mm | Green | 515 nm | 102.5 mW | 40 mcd |
