861400031 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

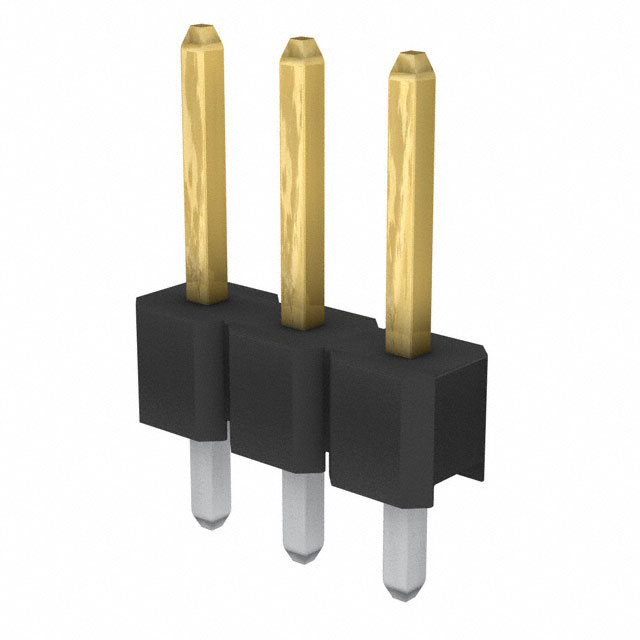

CONN HEADER VERT 3POS 2.54MM
| Part | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Overall Contact Length | Overall Contact Length | Contact Material | Fastening Type | Voltage Rating | Number of Rows | Contact Length - Post | Contact Length - Post | Contact Finish - Mating | Insulation Material | Contact Shape | Number of Positions Loaded | Termination | Connector Type | Material Flammability Rating | Contact Length - Mating | Contact Length - Mating | Mounting Type | Shrouding | Pitch - Mating | Pitch - Mating | Current Rating (Amps) | Contact Type | Insulation Height [z] | Insulation Height [z] | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | 0.203 Ám | 8 Áin | 11.9 mm | 0.469 in | Copper Alloy | Push-Pull | 1000 VDC | 1 | 3.46 mm | 0.136 " | Gold or Gold GXT™ | Thermoplastic | Square | All | Solder | Breakaway Header | UL94 V-0 | 0.228 in | 5.8 mm | Through Hole | Unshrouded | 0.1 in | 2.54 mm | 3 A | Male Pin | 0.102 in | 2.6 mm | ||
Amphenol ICC (FCI) | 0.75 Ám | 29.5 Áin | 12.6 mm | 0.496 in | Copper Alloy | Push-Pull | 1000 VDC | 1 | 3 mm | 0.118 in | Gold or Gold GXT™ | Thermoplastic | Square | All | Solder | Breakaway Header | UL94 V-0 | 0.276 in | 7 mm | Through Hole | Unshrouded | 0.1 in | 2.54 mm | 3 A | Male Pin | 0.102 in | 2.6 mm | -55 °C | 125 °C |
