SU9HD Series

Manufacturer: KEMET

Catalog

COMMON MODE FILTER, 7.98UH, 4A ROHS COMPLIANT: YES

Part	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Current Rating (Max) [Max]	DC Resistance (DCR) (Max) [Max]	Height (Max) [Max] [z]	Height (Max) [z]	Inductance @ Frequency	Operating Temperature [Max]	Operating Temperature [Min]	Number of Lines	Voltage Rating - AC	Filter Type	Package / Case

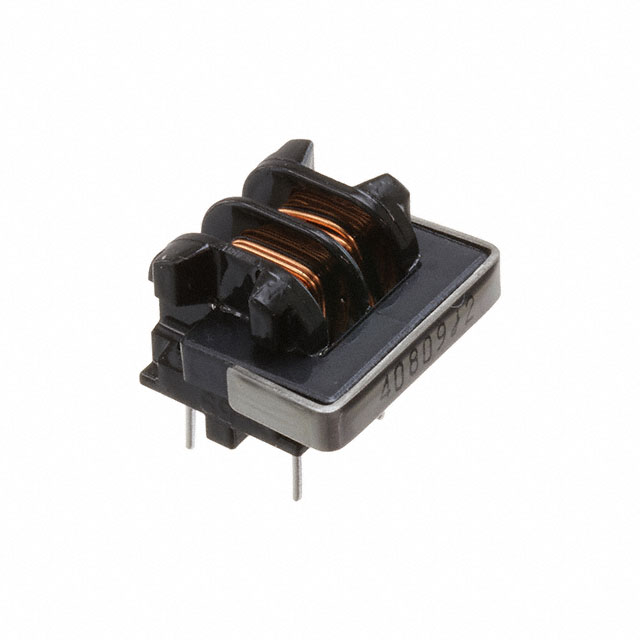

KEMET SU9HD-40008	Through Hole	15.5 mm	17 mm	0.61 in	0.669 in	4 A	31.25 mOhm	0.492 in	12.5 mm	1 kHz 7.98 µH	120 °C	-25 °C	2	250 V	Power Line	Vertical 4 PC Pin

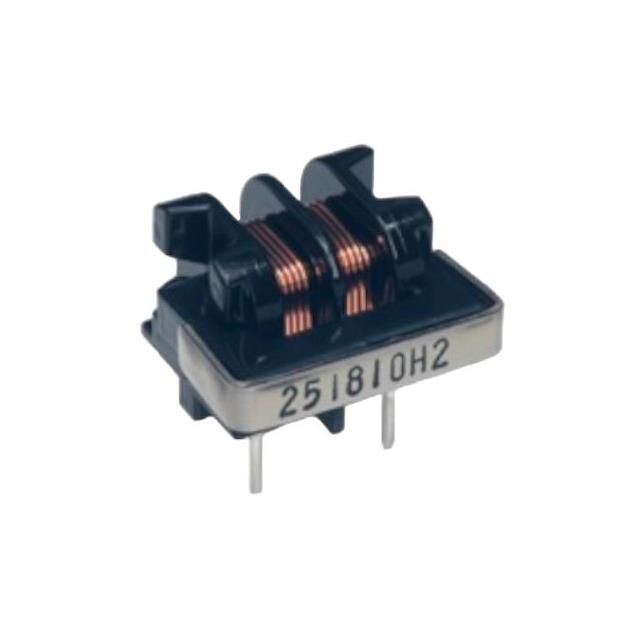

KEMET SU9HD-40006	Through Hole	15.5 mm	17 mm	0.61 in	0.669 in	4 A	27.5 mOhm	0.492 in	12.5 mm	1 kHz 5.95 µH	120 °C	-25 °C	2	250 V	Power Line	Vertical 4 PC Pin

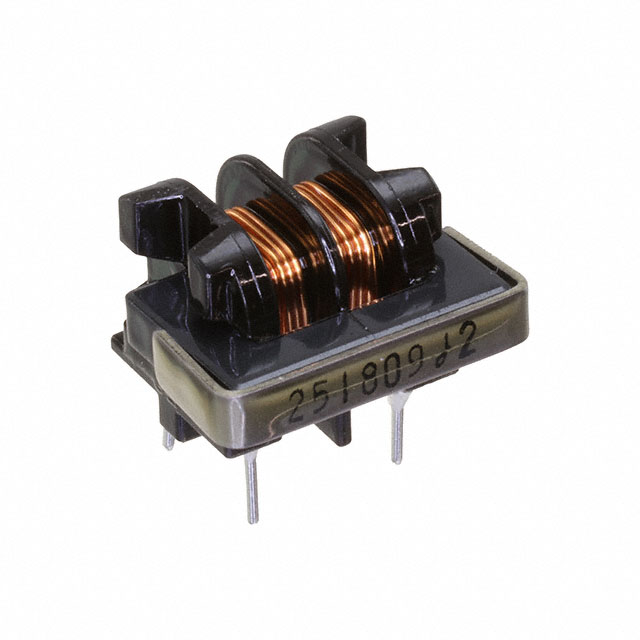

KEMET SU9HD-25018	Through Hole	15.5 mm	17 mm	0.61 in	0.669 in	2.5 A	55 mOhm	0.492 in	12.5 mm	17.99 µH	120 °C	-25 °C	2	250 V	Power Line	Vertical 4 PC Pin
