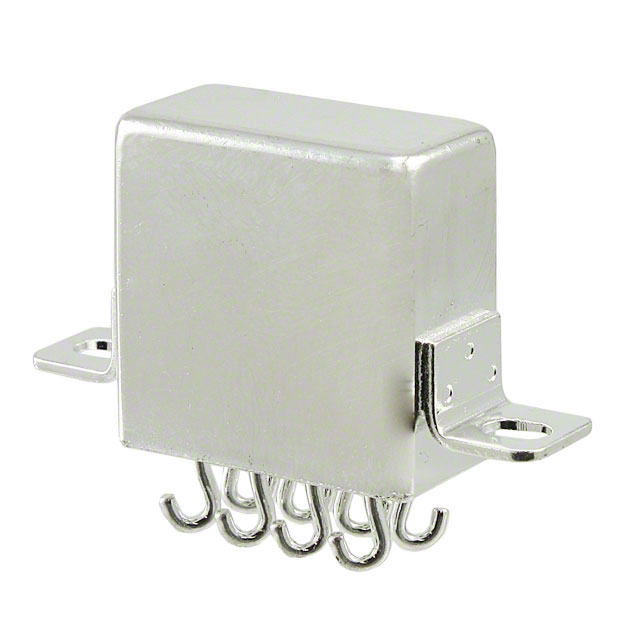

B07D11 Series
Manufacturer: TE Connectivity Aerospace, Defense and Marine
Beta
⌘K
B07D111BC4-0202 = MS27247-2
| Part | Coil Type | Mounting Type | Must Operate Voltage | Release Time | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Contact Rating (Current) | Contact Material | Relay Type | Seal Rating | Coil Resistance | Coil Current | Operate Time | Contact Form | Coil Voltage | Must Release Voltage | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Aerospace, Defense and Marine | Non Latching | Chassis Mount | 13 VDC | 10 ms | PC Pin | 125 °C | -65 ░C | 10 A | Silver Cadmium Oxide (AgCdO) | General Purpose | Sealed - Hermetically | 300 Ohms | 88.3 mA | 10 ms | DPDT (2 Form C) | 26.5 VDC | 1.8 VDC | ||
 TE Connectivity Aerospace, Defense and Marine | Non Latching | Chassis Mount | 13 VDC | 10 ms | Solder Hook | 125 °C | -70 °C | 10 A | Silver Cadmium Oxide (AgCdO) | General Purpose | Sealed - Hermetically | 300 Ohms | 93.3 mA | 10 ms | DPDT (2 Form C) | 28 VDC | 1.6 VDC | Military | MS27245 |
