SMP1302 Series

Catalog

RF DIODE PIN 200V 250MW SC79

Part	Resistance @ If, F	Power Dissipation (Max) [Max]	Capacitance @ Vr, F	Voltage - Peak Reverse (Max)	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Diode Type	Supplier Device Package	Current - Max [Max]	Contents	Frequency [Max]	Frequency [Min]	Utilized IC / Part	Type
Skyworks Solutions Inc. SMP1302-079LF	1.5 Ohm	250 mW	0.3 pF	200 V	150 °C	-65 °C	SC-79 SOD-523	PIN - Single	SC-79
Skyworks Solutions Inc. SMP1302-085LF	1.5 Ohm	3 W	0.35 pF	200 V	150 °C	-40 °C	2-VDFN Exposed Pad	PIN - Single	3-QFN (2x2)	1.5 A
Skyworks Solutions Inc. SMP1302-040LF	1.5 Ohm	250 mW	0.3 pF	200 V	150 °C	-65 °C	SOD-882	PIN - Single	SOD-882
Skyworks Solutions Inc. SMP1302-078LF	1.5 Ohm	250 mW	0.3 pF	200 V	150 °C	-65 °C	6-TSSOP SC-88 SOT-363	PIN - 2 Pair Common Cathode	SC-88

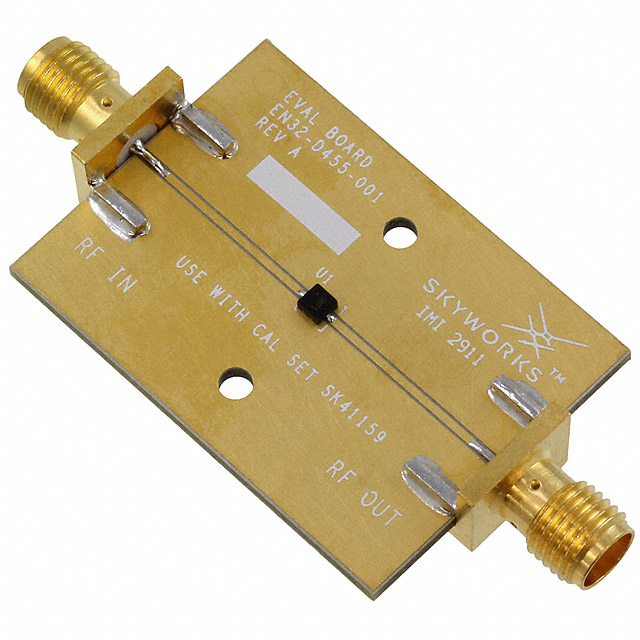

Skyworks Solutions Inc. SMP1302-085LF-EVB											Board(s)	6 GHz	10 MHz	SMP1302-085LF	PIN Diode
Skyworks Solutions Inc. SMP1302-003LF	1.5 Ohm	250 mW	0.3 pF	200 V	150 °C	-65 °C	SC-59 SOT-23-3 TO-236-3	PIN - 1 Pair Common Anode	SOT-23-3
