NPPN042 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HDR 8POS 0.079 GOLD SMD

Part	Contact Material	Contact Shape	Contact Finish Thickness - Post	Insulation Material	Number of Positions	Contact Finish - Post	Fastening Type	Mounting Type	Material Flammability Rating	Connector Type	Termination	Current Rating (Amps)	Number of Rows [custom]	Insulation Color	Contact Finish Thickness - Mating	Contact Finish - Mating	Features	Row Spacing - Mating	Row Spacing - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Contact Type	Pitch - Mating	Pitch - Mating	Contact Length - Post [custom]	Contact Length - Post	Insulation Height	Insulation Height	Insulation Height	Contact Length - Post	Insulation Height [z]
Sullins Connector Solutions NPPN042GFNP-RC	Phosphor Bronze	Square	Flash	Nylon 6T Polyamide (PA6T)	8	Gold	Push-Pull	Surface Mount	UL94 V-0	Header Top or Bottom Entry	Solder	2 A	2	Black	Flash	Gold	Board Guide	2 mm	0.079 in	-40 C	105 ░C	All	Female Socket	0.079 "	2 mm
Sullins Connector Solutions NPPN042GFNP-M81RC	Phosphor Bronze	Square	Flash	Nylon 6T Polyamide (PA6T)	8	Gold	Push-Pull	Surface Mount	UL94 V-0	Header Top or Bottom Entry	Solder	2 A	2	Black	Flash	Gold	Board Guide Pick and Place	2 mm	0.079 in	-40 C	105 ░C	All	Female Socket	0.079 "	2 mm
Sullins Connector Solutions NPPN042AFEN-RC	Phosphor Bronze	Square	Flash	Nylon 6T Polyamide (PA6T)	8	Gold	Push-Pull	Through Hole	UL94 V-0	Header	Solder		2	Black	Flash	Gold		2 mm	0.079 in	-40 C	105 ░C	All	Female Socket	0.079 "	2 mm	0.11 in	2.79 mm	4.3 mm	0.169 "

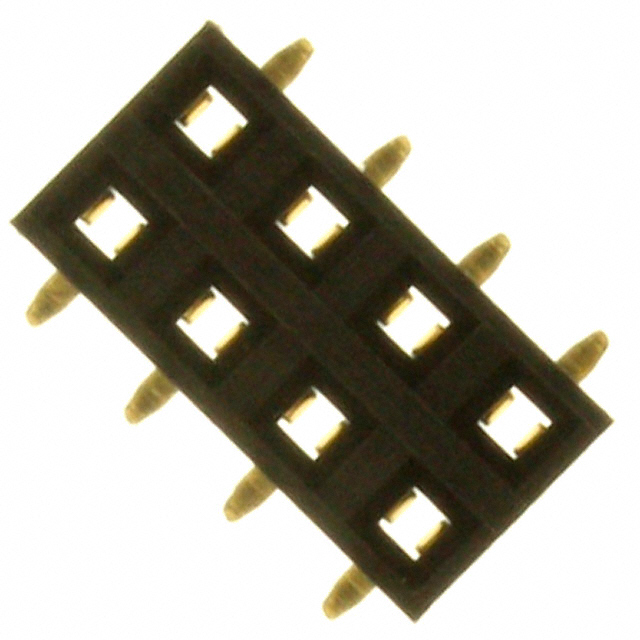

Sullins Connector Solutions NPPN042FFKS-RC	Phosphor Bronze	Square	Flash	Nylon 6T Polyamide (PA6T)	8	Gold	Push-Pull	Surface Mount	UL94 V-0	Header	Solder	2 A	2	Black	Flash	Gold		2 mm	0.079 in	-40 C	105 ░C	All	Female Socket	0.079 "	2 mm			0.173 in		4.4 mm

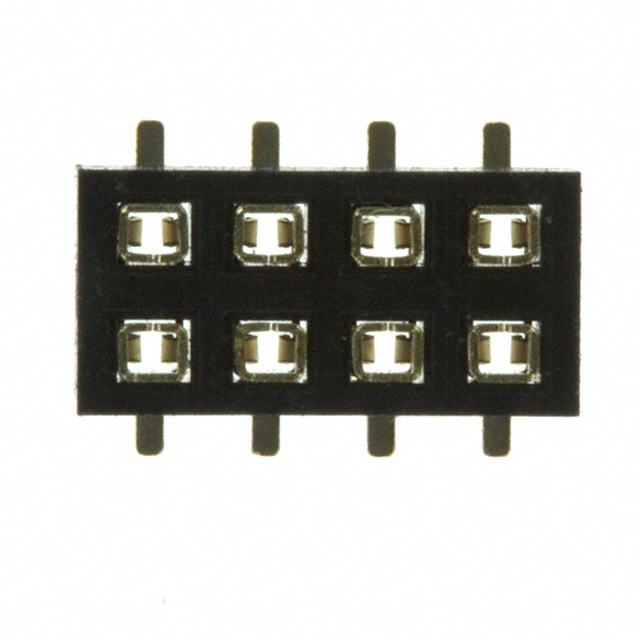

Sullins Connector Solutions NPPN042GFNS-RC	Phosphor Bronze	Square	Flash	Nylon 6T Polyamide (PA6T)	8	Gold	Push-Pull	Surface Mount	UL94 V-0	Header Top or Bottom Entry	Solder	2 A	2	Black	Flash	Gold		2 mm	0.079 in	-40 C	105 ░C	All	Female Socket	0.079 "	2 mm

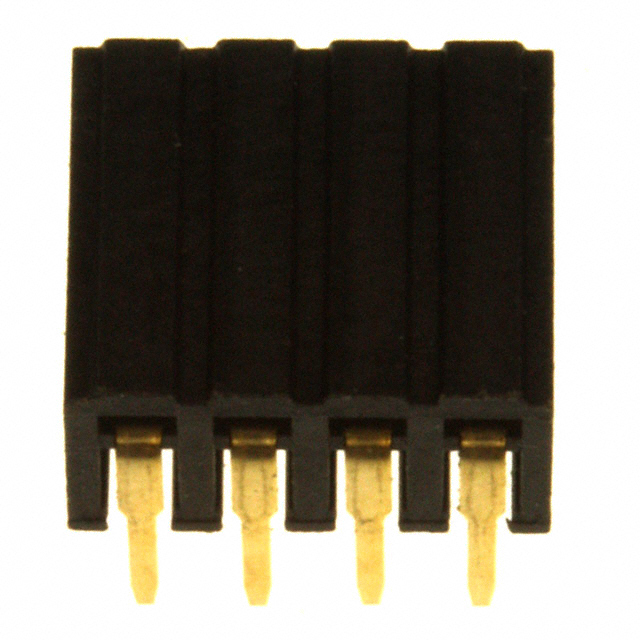

Sullins Connector Solutions NPPN042FJFN-RC	Phosphor Bronze	Square	Flash	Nylon 6T Polyamide (PA6T)	8	Gold	Push-Pull	Right Angle Through Hole	UL94 V-0	Header	Solder		2	Black	Flash	Gold		2 mm	0.079 in	-40 C	105 ░C	All	Female Socket	0.079 "	2 mm		3 mm	4.85 mm			0.118 in	0.191 in

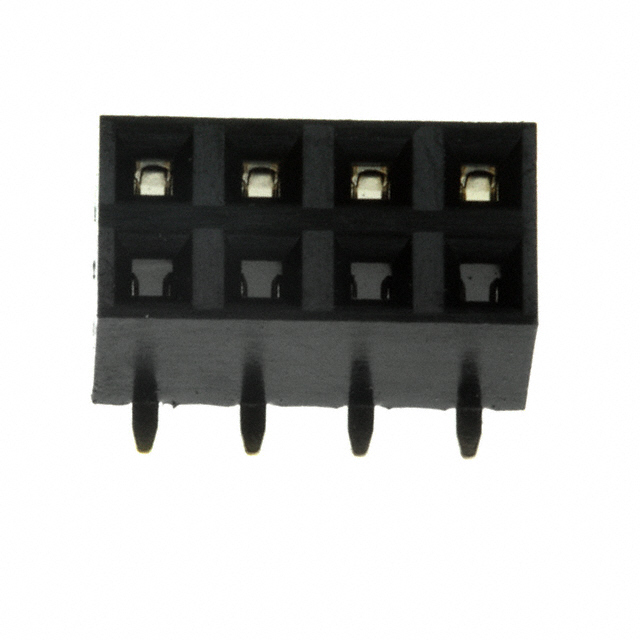

Sullins Connector Solutions NPPN042FFKP-RC	Phosphor Bronze	Square	Flash	Nylon 6T Polyamide (PA6T)	8	Gold	Push-Pull	Surface Mount	UL94 V-0	Header	Solder	2 A	2	Black	Flash	Gold	Board Guide	2 mm	0.079 in	-40 C	105 ░C	All	Female Socket	0.079 "	2 mm			0.173 in		4.4 mm
