EN3P7M Series
Manufacturer: Switchcraft Inc.
Beta
⌘K
CONN CIRCULAR PIN 7 POS SOLDER CUP ST PANEL MOUNT 7 TERMINAL 1 PORT BULK
| Part | Connector Type | Contact Material | Mounting Feature | Operating Temperature [Max] | Operating Temperature [Min] | Orientation | Number of Positions | Fastening Type | Primary Material | Ingress Protection | Applications | Voltage Rating | Shielding | Current Rating (Amps) | Contact Finish - Mating | Color | Insert Material | Material Flammability Rating | Mounting Type | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

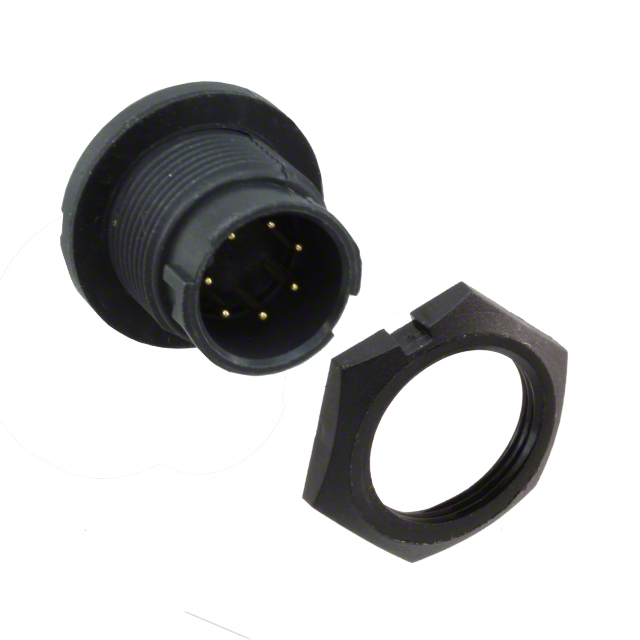

 Switchcraft Inc. | Male Pins Receptacle | Copper Alloy | Bulkhead - Front Side Nut | 65 °C | -40 °C | Keyed | 7 | Bayonet Lock | Plastic | IP66/IP68 | General Purpose Instrumentation Marine Medical | 250 VAC | Unshielded | 6.5 A | Gold | Black | Elastomer | UL94 V-0 | ||

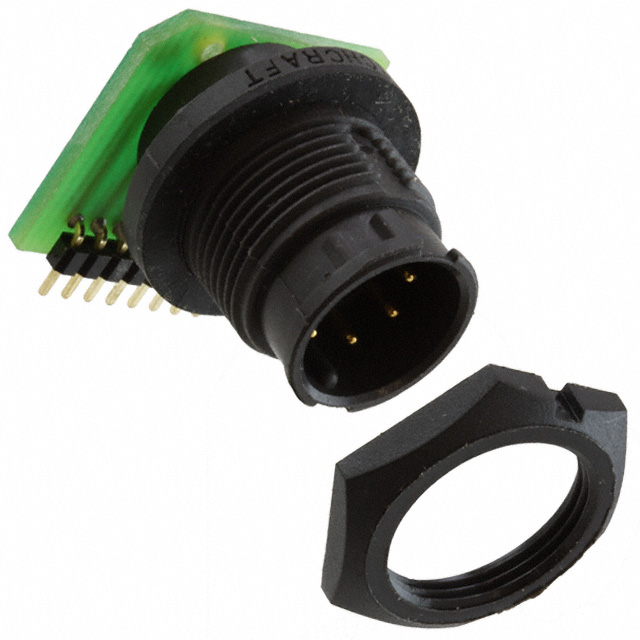

 Switchcraft Inc. | Male Pins Receptacle | Copper Alloy | Bulkhead - Front Side Nut | 65 °C | -40 °C | Keyed | 7 | Bayonet Lock | Plastic | IP66/IP68 | General Purpose Instrumentation Marine Medical | 250 VAC | Unshielded | 4 A | Gold | Black | Elastomer | UL94 V-0 | Panel Mount Right Angle Through Hole | Circuit Board Solder |
Switchcraft Inc. | Male Pins Receptacle | Copper Alloy | Bulkhead - Front Side Nut | 65 °C | -40 °C | Keyed | 7 | Bayonet Lock | Plastic | IP66/IP68 | General Purpose Instrumentation Marine Medical | 250 VAC | Unshielded | 6.5 A | Gold | Black | Elastomer | UL94 V-0 | Crimp | |

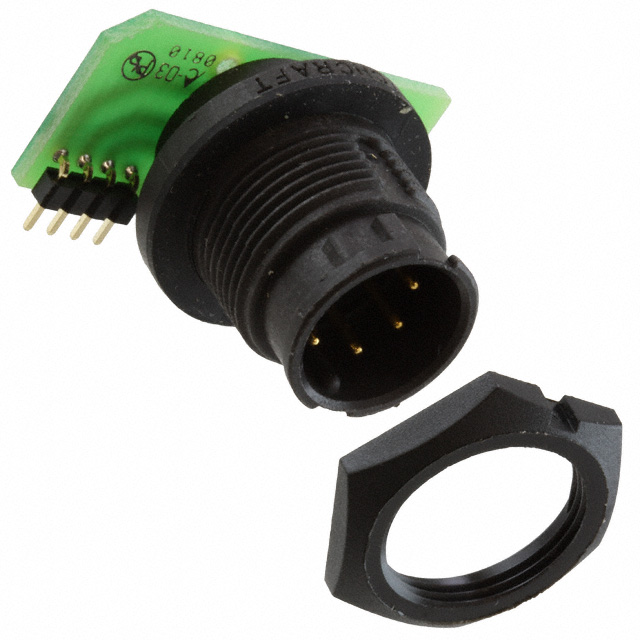

 Switchcraft Inc. | Male Pins Receptacle | Copper Alloy | Bulkhead - Front Side Nut | 65 °C | -40 °C | Keyed | 7 | Bayonet Lock | Plastic | IP66/IP68 | General Purpose Instrumentation Marine Medical | 250 VAC | Unshielded | 4 A | Gold | Black | Elastomer | UL94 V-0 | Panel Mount Right Angle Through Hole | Circuit Board Solder |
