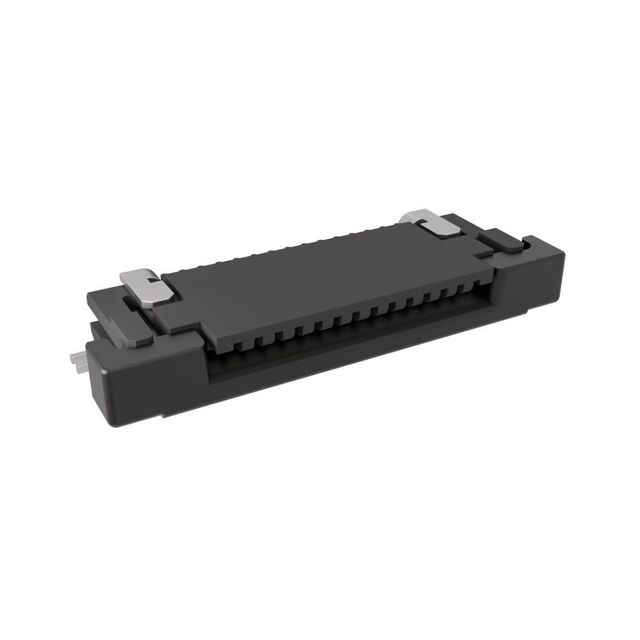

SFV14R Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K
CONN FPC TOP 14POS 0.5MM R/A
| Part | Actuator Color | Housing Color | Current Rating (Amps) | Mating Cycles | Termination | Flat Flex Type | Operating Temperature [Min] | Operating Temperature [Max] | Cable End Type | Material Flammability Rating | Connector/Contact Type | Locking Feature | Pitch | Pitch | FFC, FCB Thickness | Mounting Type | Actuator Material | Number of Positions | Contact Finish | Height Above Board [z] | Height Above Board [z] | Voltage Rating | Housing Material | Contact Material | FFC, FCB Thickness [custom] | FFC, FCB Thickness [custom] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | Beige | Black | 0.5 A | 20 | Solder | FPC | -55 C | 105 ░C | Tapered | UL94 V-0 | Contacts Top | Slide Lock | 0.02 " | 0.5 mm | 0.3 mm | Right Angle Surface Mount | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | 14 | Gold | 0.071 in | 1.8 mm | 50 V | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | Phosphor Bronze | |||
 Amphenol ICC (FCI) | Brown | Black | 0.5 A | 20 | Solder | FFC FPC | -55 C | 105 ░C | Tapered | UL94 V-0 | Contacts Top | Slide Lock | 0.02 " | 0.5 mm | 0.33 mm | Right Angle Surface Mount | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | 14 | Gold | 0.071 in | 1.8 mm | 50 V | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | Phosphor Bronze | |||
Amphenol ICC (FCI) | Black | Black | 0.5 A | 20 | Solder | FPC | -55 C | 105 ░C | Straight Tapered | UL94 V-0 | Contacts Bottom | Slide Lock | 0.02 " | 0.5 mm | Right Angle Surface Mount | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | 14 | Gold | 0.071 in | 1.8 mm | 50 V | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | Phosphor Bronze | 0.3 mm | 0.33 mm | ||
 Amphenol ICC (FCI) | Black | Black | 0.5 A | 20 | Solder | FPC | -55 C | 105 ░C | Straight Tapered | UL94 V-0 | Contacts Top | Slide Lock | 0.02 " | 0.5 mm | Right Angle Surface Mount | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | 14 | Tin | 0.071 in | 1.8 mm | 50 V | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | Phosphor Bronze | 0.3 mm | 0.33 mm | ||
 Amphenol ICC (FCI) | Brown | Black | 0.5 A | 20 | Solder | FFC FPC | -55 C | 105 ░C | Straight Tapered | UL94 V-0 | Contacts Top | Slide Lock | 0.02 " | 0.5 mm | Right Angle Surface Mount | Polyphenylene Sulfide (PPS) Glass Filled | 14 | Tin Alloy | 0.071 in | 1.8 mm | 50 V | Glass Filled Nylon Polyamide (PA) | Phosphor Bronze | 0.3 mm | 0.33 mm | Solder Retention Zero Insertion Force (ZIF) | |
Amphenol ICC (FCI) | Black | Black | 0.5 A | 20 | Solder | FFC FPC | -55 C | 105 ░C | Straight Tapered | UL94 V-0 | Contacts Bottom | Slide Lock | 0.02 " | 0.5 mm | Right Angle Surface Mount | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | 14 | Gold | 0.071 in | 1.8 mm | 50 V | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | Phosphor Bronze | 0.3 mm | 0.33 mm | Solder Retention Zero Insertion Force (ZIF) | |
 Amphenol ICC (FCI) | Black | Black | 0.5 A | 20 | Solder | FFC FPC | -55 C | 105 ░C | Tapered | UL94 V-0 | Contacts Bottom | Slide Lock | 0.02 " | 0.5 mm | Right Angle Surface Mount | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | 14 | Gold | 0.071 in | 1.8 mm | 50 V | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | Phosphor Bronze | 0.3 mm | 0.33 mm | Solder Retention Zero Insertion Force (ZIF) | |
 Amphenol ICC (FCI) | Black | Black | 0.5 A | 20 | Solder | FPC | -55 C | 105 ░C | Notched Tabbed | UL94 V-0 | Contacts Bottom | Flip Lock Slide Lock | 0.02 " | 0.5 mm | 0.3 mm | Right Angle Surface Mount | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | 14 | Tin | 0.071 in | 1.8 mm | 50 V | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | Phosphor Bronze | Solder Retention Zero Insertion Force (ZIF) | ||
Amphenol ICC (FCI) | Black | Black | 0.5 A | 20 | Solder | FFC FPC | -55 C | 105 ░C | Straight Tapered | UL94 V-0 | Contacts Top | Slide Lock | 0.02 " | 0.5 mm | Right Angle Surface Mount | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | 14 | Tin | 0.071 in | 1.8 mm | 50 V | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | Phosphor Bronze | 0.3 mm | 0.33 mm | Solder Retention Zero Insertion Force (ZIF) | |
Amphenol ICC (FCI) | Black | Black | 0.5 A | 20 | Solder | FFC FPC | -55 C | 105 ░C | Straight Tapered | UL94 V-0 | Contacts Bottom | Slide Lock | 0.02 " | 0.5 mm | Right Angle Surface Mount | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | 14 | Tin | 0.071 in | 1.8 mm | 50 V | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | Phosphor Bronze | 0.3 mm | 0.33 mm | Solder Retention Zero Insertion Force (ZIF) |
