181-026 Series
Manufacturer: NorComp Inc.
Beta
⌘K

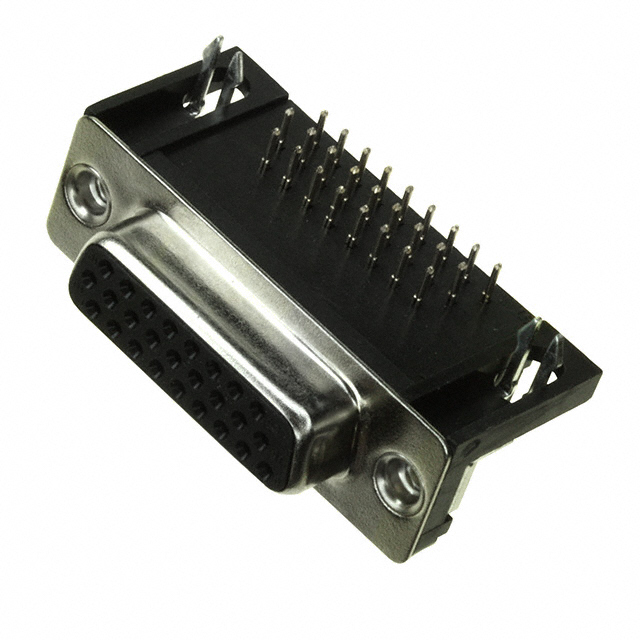

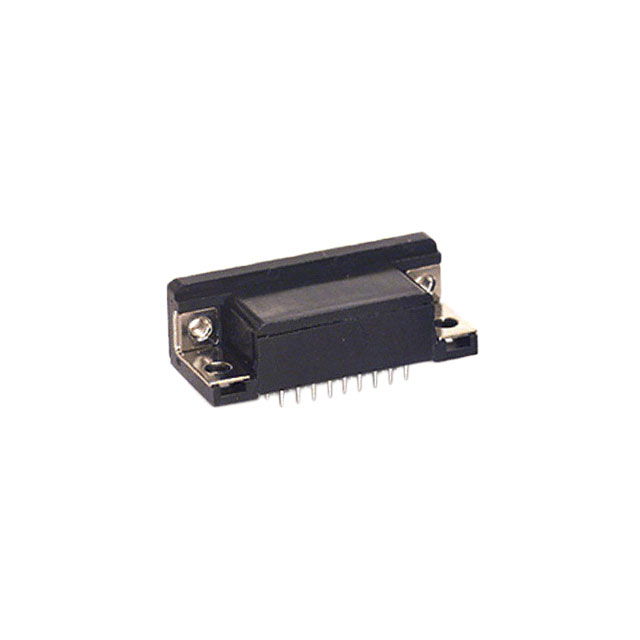

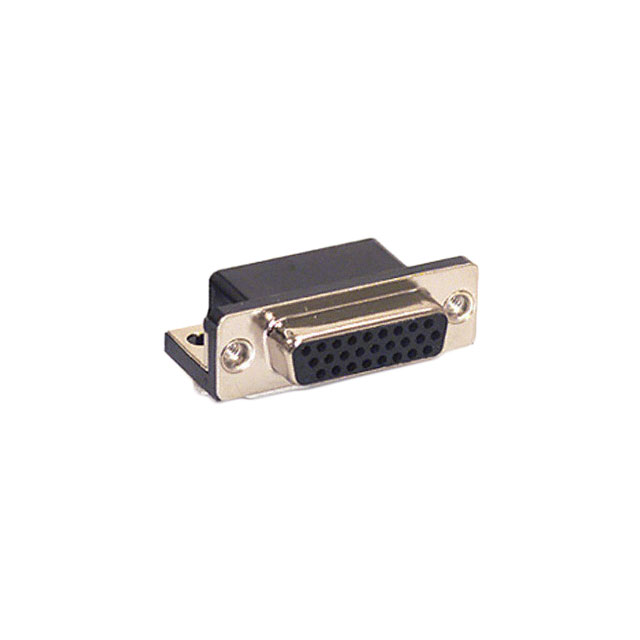

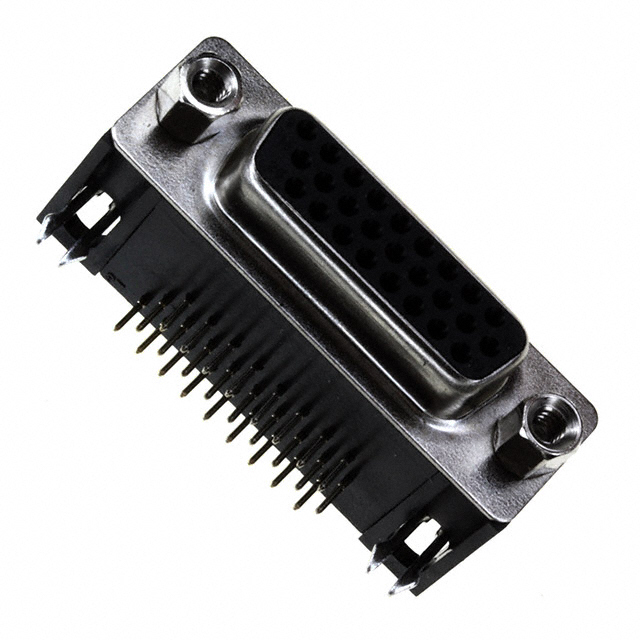

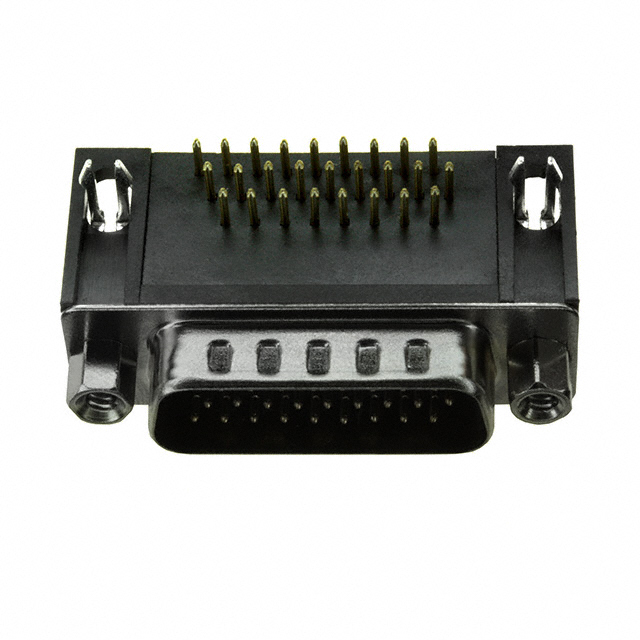

CONN D-SUB HD PLUG 26P R/A SLDR
| Part | Color | Operating Temperature [Max] | Operating Temperature [Min] | Dielectric Material | Contact Material | Termination | Material Flammability Rating | Mounting Type | Backset Spacing | Backset Spacing | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout | Contact Finish | Features | Contact Type | Connector Type | Connector Style | Flange Feature | Flange Feature | Number of Positions | Number of Rows [custom] | Contact Finish Thickness | Current Rating (Amps) | Voltage Rating | Shell Material, Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | Black | 100 °C | -50 °C | Polybutylene Terephthalate (PBT) | Brass | Solder | UL94 V-0 | Panel Mount Right Angle Through Hole | 8.89 mm | 0.35 in | 2 | DA A | Gold | Board Lock Grounding Indents | Signal | Plug Male Pins | D-Sub High Density | Housing/Shell | 4-40 | 26 | 3 | Flash | 2 A | ||
 NorComp Inc. | Black | 100 °C | -50 °C | Polybutylene Terephthalate (PBT) | Brass | Solder | UL94 V-0 | Panel Mount Right Angle Through Hole | 8.89 mm | 0.35 in | 2 | DA A | Gold | Ground Strap | Signal | Receptacle Female Sockets | D-Sub High Density | Housing/Shell | 4-40 | 26 | 3 | Flash | 2 A | ||
 NorComp Inc. | Black | 105 ░C | -55 C | Nylon 9T Polyamide (PA9T) | Brass | Solder | UL94 V-0 | Panel Mount Right Angle Through Hole | 8.89 mm | 0.35 in | 2 | DA A | Gold | Board Lock Shielded | Signal | Receptacle Female Sockets | D-Sub High Density | Housing/Shell | 4-40 | 26 | 3 | Flash | 3 A | 250 V | Nickel Plated Steel |
 NorComp Inc. | Black | 105 ░C | -55 C | Nylon 9T Polyamide (PA9T) | Brass | Solder | UL94 V-0 | Panel Mount Right Angle Through Hole | 8.89 mm | 0.35 in | 2 | DA A | Gold | Board Lock Grounding Indents Shielded | Signal | Plug Male Pins | D-Sub High Density | 4-40 Mating Side Female Screwlock | 26 | 3 | Flash | 3 A | 250 V | Nickel Plated Steel | |
NorComp Inc. | Black | 105 ░C | -55 C | Nylon 9T Polyamide (PA9T) | Brass | Solder | UL94 V-0 | Panel Mount Right Angle Through Hole | 8.89 mm | 0.35 in | 2 | DA A | Gold | Ground Strap Shielded | Signal | Receptacle Female Sockets | D-Sub High Density | Housing/Shell (Unthreaded) | 26 | 3 | Flash | 3 A | 250 V | Nickel Plated Steel | |
NorComp Inc. | Black | 100 °C | -50 °C | Polybutylene Terephthalate (PBT) | Brass | Solder | UL94 V-0 | Panel Mount Right Angle Through Hole | 8.89 mm | 0.35 in | 2 | DA A | Gold | Board Lock | Signal | Receptacle Female Sockets | D-Sub High Density | Housing/Shell | 4-40 | 26 | 3 | Flash | 2 A | ||
NorComp Inc. | Black | 105 ░C | -55 C | Nylon 9T Polyamide (PA9T) | Brass | Solder | UL94 V-0 | Panel Mount Right Angle Through Hole | 8.89 mm | 0.35 in | 2 | DA A | Gold | Ground Strap Grounding Indents Shielded | Signal | Plug Male Pins | D-Sub High Density | Housing/Shell | 4-40 | 26 | 3 | Flash | 3 A | 250 V | Nickel Plated Steel |
NorComp Inc. | Black | 105 ░C | -55 C | Nylon 9T Polyamide (PA9T) | Brass | Solder | UL94 V-0 | Panel Mount Right Angle Through Hole | 8.89 mm | 0.35 in | 2 | DA A | Gold | Ground Strap Shielded | Signal | Receptacle Female Sockets | D-Sub High Density | Housing/Shell | 4-40 | 26 | 3 | Flash | 3 A | 250 V | Nickel Plated Steel |
NorComp Inc. | Black | 105 ░C | -55 C | Nylon 9T Polyamide (PA9T) | Brass | Solder | UL94 V-0 | Panel Mount Right Angle Through Hole | 8.89 mm | 0.35 in | 2 | DA A | Gold | Ground Strap Shielded | Signal | Receptacle Female Sockets | D-Sub High Density | 4-40 Mating Side Female Screwlock | 26 | 3 | Flash | 3 A | 250 V | Nickel Plated Steel | |
 NorComp Inc. | Black | 105 ░C | -55 C | Nylon 9T Polyamide (PA9T) | Brass | Solder | UL94 V-0 | Panel Mount Right Angle Through Hole | 8.89 mm | 0.35 in | 2 | DA A | Gold | Board Lock Shielded | Signal | Receptacle Female Sockets | D-Sub High Density | 4-40 Mating Side Female Screwlock | 26 | 3 | Flash | 3 A | 250 V | Nickel Plated Steel |
