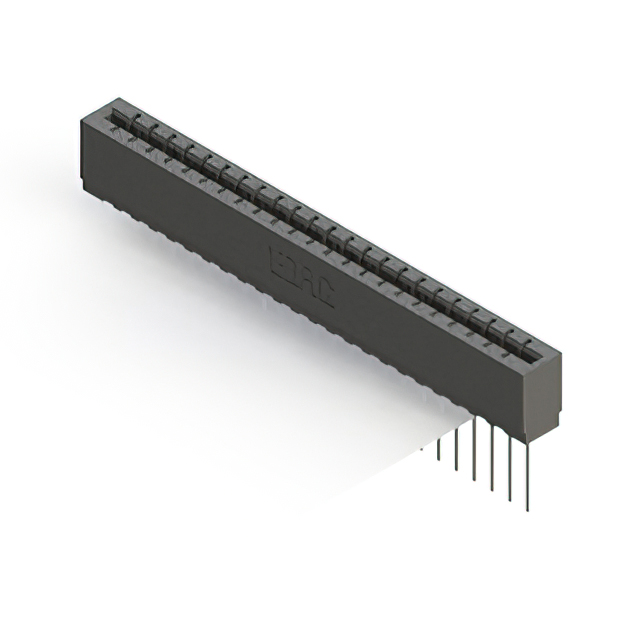

717-023 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE SGL FMALE 23POS 0.156
| Part | Termination Rows | Material - Insulation | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Read Out | Contact Finish Thickness | Contact Finish Thickness | Termination | Color | Number of Rows | Gender | Contact Finish | Mounting Type | Pitch | Pitch | Card Type | Number of Positions/Bay/Row | Card Thickness [Max] | Card Thickness [Min] | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Polyester Thermoplastic | Cantilever | -40 C | 105 ░C | Copper Alloy | Single | 30 Áin | 0.76 Ám | Press-Fit Wire Wrap | Black | 1 | Female | Gold | Through Hole | 3.96 mm | 0.156 in | Non Specified - Single Edge | 23 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 23 |
 EDAC Inc. | 1 | Polyester Thermoplastic | Cantilever | -40 C | 105 ░C | Copper Alloy | Single | 30 Áin | 0.76 Ám | Press-Fit | Black | 1 | Female | Gold | Through Hole | 3.96 mm | 0.156 in | Non Specified - Single Edge | 23 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 23 |
 EDAC Inc. | 1 | Polyester Thermoplastic | Cantilever | -40 C | 105 ░C | Copper Alloy | Single | 30 Áin | 0.76 Ám | Press-Fit Wire Wrap | Black | 1 | Female | Gold | Through Hole | 3.96 mm | 0.156 in | Non Specified - Single Edge | 23 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 23 |
 EDAC Inc. | 1 | Polyester Thermoplastic | Cantilever | -40 C | 105 ░C | Copper Alloy | Single | 30 Áin | 0.76 Ám | Press-Fit | Black | 1 | Female | Gold | Through Hole | 3.96 mm | 0.156 in | Non Specified - Single Edge | 23 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 23 |
