DFE252012PD Series

Catalog

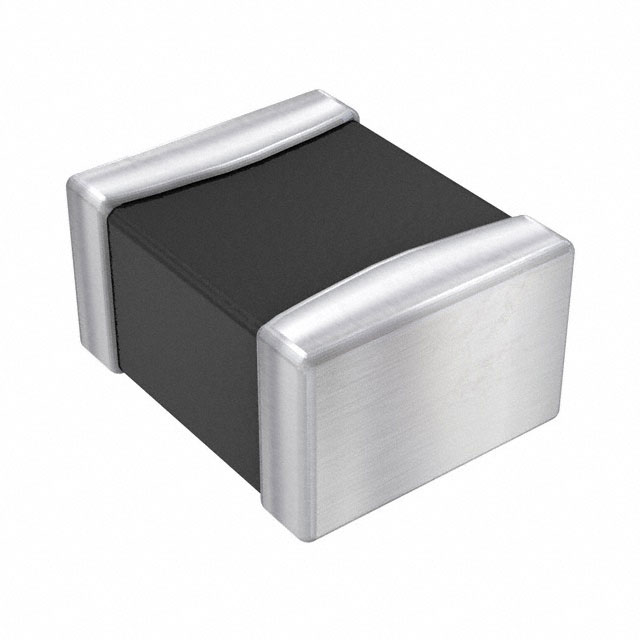

FIXED IND 470NH 4A 0.027OHM SMD

Part	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	DC Resistance (DCR)	Inductance Frequency - Test	Features	Tolerance	Ratings	Material - Core	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Inductance	Package / Case	Package / Case	Current Rating (Amps)	Current - Saturation (Isat)	Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Supplier Device Package	Mounting Type	DC Resistance (DCR) [Max]
Murata Electronics DFE252012PD-R47M=P2	125 °C	-40 C	Shielded	27 mOhm	1 MHz	Flat Wire	20 %	AEC-Q200	Iron Powder	2.5 mm	0.079 in	0.098 in	2 mm	470 nH	2520 Metric	1008	4 A	5.2 A	Drum Core Wirewound	1.2 mm	0.047 "	2520	Surface Mount
Murata Electronics DFE252012PD-3R3M=P2	125 °C	-40 C	Shielded		1 MHz	Flat Wire	20 %	AEC-Q200	Iron Powder	2.5 mm	0.079 in	0.098 in	2 mm	3.3 µH	2520 Metric	1008	1.7 A	2.1 A	Drum Core Wirewound	1.2 mm	0.047 "	2520	Surface Mount	140 mOhm
