VK10 Series

Catalog

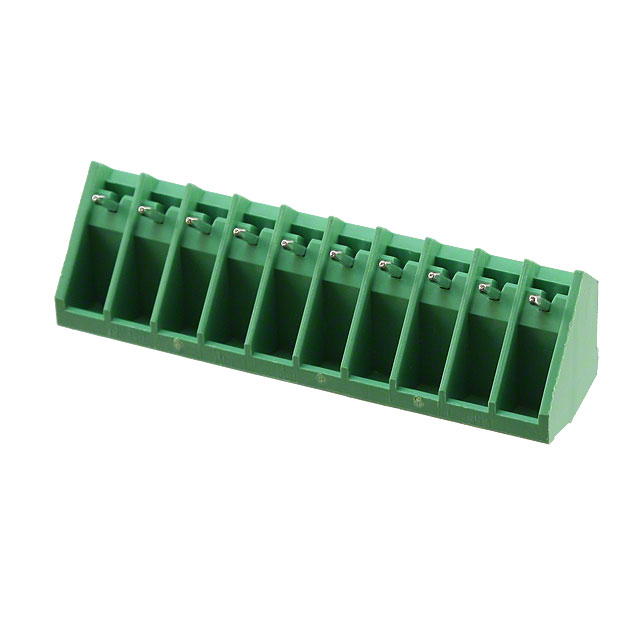

TERM BLOCK HDR 10POS 45DEG 3.5MM

Part	Contact Mating Finish	Color	Operating Temperature [Min]	Operating Temperature [Max]	Housing Material	Positions Per Level	Number of Levels	Insulation Height	Insulation Height	Pitch [x]	Pitch [x]	Contact Tail Length	Contact Tail Length	Contact Material	Current - UL	Type	Voltage - UL	Termination Style	Mounting Type	Material Flammability Rating	Header Orientation	Number of Positions	Features
Amphenol Anytek VK1011500000G	Tin	Green	-40 °C	115 °C	Thermoplastic	10	1	0.433 in	11 mm	3.5 mm	0.138 in	3.4 mm	0.134 in	Copper	8 A	Header Male Pins Shrouded (4 Side)	300 V	Solder	Through Hole	UL94 V-0	45 °	10
Amphenol Anytek VK1071500000G	Tin	Green	-40 °C	115 °C	Thermoplastic Resin	10	1	0.571 in	14.5 mm	5 mm	0.197 in	4.1 mm	0.161 in	Copper Alloy		Header Male Pins Shrouded (4 Side)	300 V	Solder	Through Hole	UL94 V-0	45 °	10
Amphenol Anytek VK1032500000G	Tin	Green	-40 °C	115 °C	Thermoplastic Resin	10	1	0.433 in	11 mm	3.81 mm	0.15 in	3.4 mm	0.134 in	Copper Alloy	8 A	Header Male Pins Shrouded (4 Side)	300 V	Solder	Through Hole	UL94 V-0	45 °	10	Mating Flange
Amphenol Anytek VK1052500000G	Tin	Green	-40 °C	115 °C	Thermoplastic Resin	10	1	0.571 in	14.5 mm	5.08 mm	0.2 in	4.1 mm	0.161 in	Copper Alloy		Header Male Pins Shrouded (4 Side)	300 V	Solder	Through Hole	UL94 V-0	45 °	10	Mating Flange
Amphenol Anytek VK1070500000G	Tin	Green	-40 °C	115 °C	Thermoplastic	10	1	0.571 in	14.5 mm	5 mm	0.197 in	4.1 mm	0.161 in	Copper		Header Male Pins Shrouded (2 Side)	300 V	Solder	Through Hole	UL94 V-0	45 °	10
Amphenol Anytek VK1072500000G	Tin	Green	-40 °C	115 °C	Thermoplastic Resin	10	1	0.571 in	14.5 mm	5 mm	0.197 in	4.1 mm	0.161 in	Copper Alloy		Header Male Pins Shrouded (4 Side)	300 V	Solder	Through Hole	UL94 V-0	45 °	10	Mating Flange
Amphenol Anytek VK1050500000G	Tin	Green	-40 °C	115 °C	Thermoplastic	10	1	0.571 in	14.5 mm	5.08 mm	0.2 in	4.1 mm	0.161 in	Copper		Header Male Pins Shrouded (2 Side)	300 V	Solder	Through Hole	UL94 V-0	45 °	10
