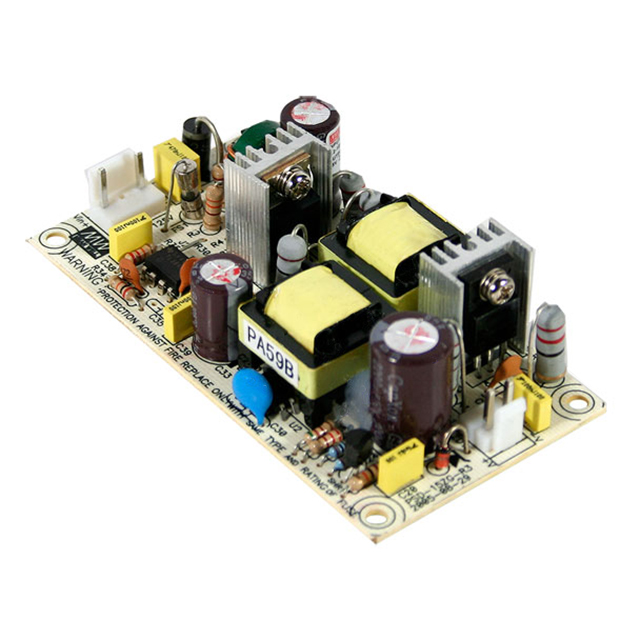

PSD-15 Series

Catalog

DC/DC CONVERTER 24V 14W

Part	Approval Agency	Current - Output (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Number of Outputs	Voltage - Input (Max) [Max]	Voltage - Isolation	Voltage - Output 1	Mounting Type	Applications	Efficiency	Type	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Input (Min) [Min]	Power (Watts)
MEAN WELL USA Inc. PSD-15A-24	CE	600 mA	-10 °C	60 °C	1	18 V	2000 V	24 V	Chassis Mount	ITE (Commercial)	72 %	Open Frame	0.98 in	49 mm	3.7 in	25 mm	94 mm	1.93 in
MEAN WELL USA Inc. PSD-15C-5	CE	3 A	-10 °C	60 °C	1	72 V	2000 V	5 V	Chassis Mount	ITE (Commercial)	78 %	Open Frame	0.98 in	49 mm	3.7 in	25 mm	94 mm	1.93 in	36 V	15 W
MEAN WELL USA Inc. PSD-15C-24	CE	600 mA	-10 °C	60 °C	1	72 V	2000 V	24 V	Chassis Mount	ITE (Commercial)	79 %	Open Frame	0.98 in	49 mm	3.7 in	25 mm	94 mm	1.93 in	36 V
MEAN WELL USA Inc. PSD-15B-24	CE	600 mA	-10 °C	60 °C	1	36 V	2000 V	24 V	Chassis Mount	ITE (Commercial)	78 %	Open Frame	0.98 in	49 mm	3.7 in	25 mm	94 mm	1.93 in	18 V
MEAN WELL USA Inc. PSD-15C-12	CE	1.25 A	-10 °C	60 °C	1	72 V	2000 V	12 V	Chassis Mount	ITE (Commercial)	78 %	Open Frame	0.98 in	49 mm	3.7 in	25 mm	94 mm	1.93 in	36 V	15 W
