FX23LS Series

Catalog

OM3 2F 3MM LSZH DUP SCSC STD POL

Part	Operating Temperature [Min]	Operating Temperature [Max]	Bend Radius [radius]	Color - Connectors	Jacket (Insulation) Material	Insertion Loss	Color - Cable	Return Loss	1st Connector	Cable Diameter [diameter]	Cable Diameter [diameter]	Fiber Type	2nd Connector	Type	Length - Overall [x]	Length - Overall [x]	Cable Type	Length - Overall	Length - Overall
Panduit Corp FX23LSNSNSNM5.5	-20 ░C	70 °C	29 mm	Black	Low Smoke Zero Halogen (LSZH)	0.5 dB	Yellow	26 dB	SC Duplex	3 mm	0.12 in	9/125	SC Duplex	Duplex Multimode OM3	18 ft	5.5 m	Buffered Fiber
Panduit Corp FX23LSNSNSNM4.5	-20 ░C	70 °C	29 mm	Black	Low Smoke Zero Halogen (LSZH)	0.5 dB	Yellow	26 dB	SC Duplex	3 mm	0.12 in	9/125	SC Duplex	Duplex Multimode OM3			Buffered Fiber	14.8 ft	4.5 m
Panduit Corp FX23LSNSNSNM0.5	-20 ░C	70 °C	29 mm	Black	Low Smoke Zero Halogen (LSZH)	0.5 dB	Yellow	26 dB	SC Duplex	3 mm	0.12 in	9/125	SC Duplex	Duplex Multimode OM3	1.64 ft	500 mm	Buffered Fiber

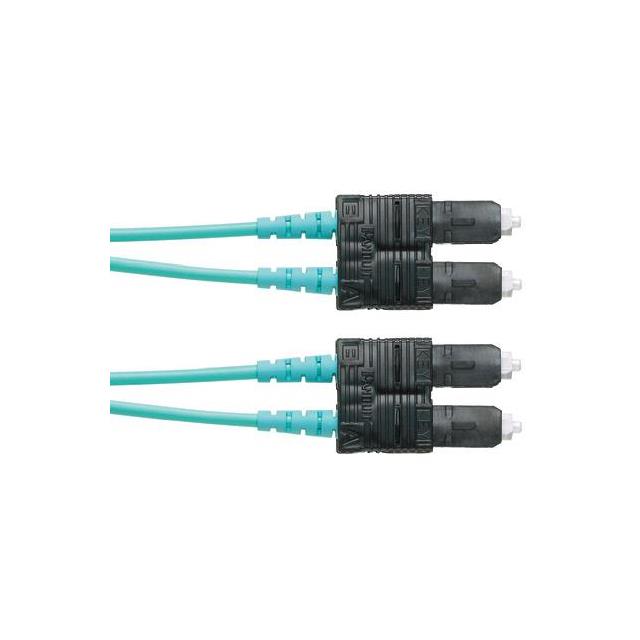

Panduit Corp FX23LSNSNSNM010	-20 ░C	70 °C	29 mm	Black	Low Smoke Zero Halogen (LSZH)	0.5 dB	Yellow	26 dB	SC Duplex	3 mm	0.12 in	9/125	SC Duplex	Duplex Multimode OM3	32.8 '	10 m	Buffered Fiber
Panduit Corp FX23LSNSNSNM050	-20 ░C	70 °C	29 mm	Black	Low Smoke Zero Halogen (LSZH)	0.5 dB	Yellow	26 dB	SC Duplex	3 mm	0.12 in	9/125	SC Duplex	Duplex Multimode OM3			Buffered Fiber	164 ft	50 m

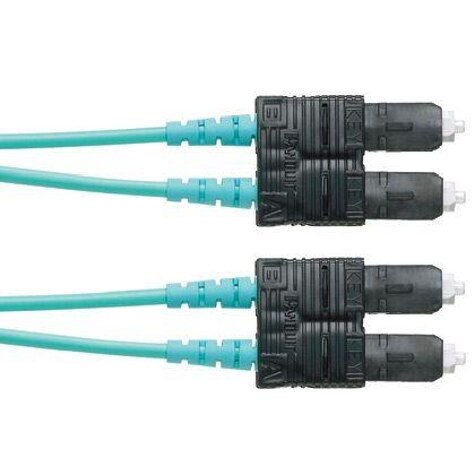

Panduit Corp FX23LSNSNSNM042	-20 ░C	70 °C	29 mm	Black	Low Smoke Zero Halogen (LSZH)	0.5 dB	Yellow	26 dB	SC Duplex	3 mm	0.12 in	9/125	SC Duplex	Duplex Multimode OM3			Buffered Fiber	137.8 ft	42 m
Panduit Corp FX23LSNSNSNM029	-20 ░C	70 °C	29 mm	Black	Low Smoke Zero Halogen (LSZH)	0.5 dB	Yellow	26 dB	SC Duplex	3 mm	0.12 in	9/125	SC Duplex	Duplex Multimode OM3			Buffered Fiber
Panduit Corp FX23LSNSNSNM1.5	-20 ░C	70 °C	29 mm	Black	Low Smoke Zero Halogen (LSZH)	0.5 dB	Yellow	26 dB	SC Duplex	3 mm	0.12 in	9/125	SC Duplex	Duplex Multimode OM3	4.9 ft	1.5 m	Buffered Fiber
Panduit Corp FX23LSNSNSNM037	-20 ░C	70 °C	29 mm	Black	Low Smoke Zero Halogen (LSZH)	0.5 dB	Yellow	26 dB	SC Duplex	3 mm	0.12 in	9/125	SC Duplex	Duplex Multimode OM3			Buffered Fiber	121.4 ft	37 m
Panduit Corp FX23LSNSNSNM004	-20 ░C	70 °C	29 mm	Black	Low Smoke Zero Halogen (LSZH)	0.5 dB	Yellow	26 dB	SC Duplex	3 mm	0.12 in	9/125	SC Duplex	Duplex Multimode OM3	13.1 ft	4 m	Buffered Fiber
