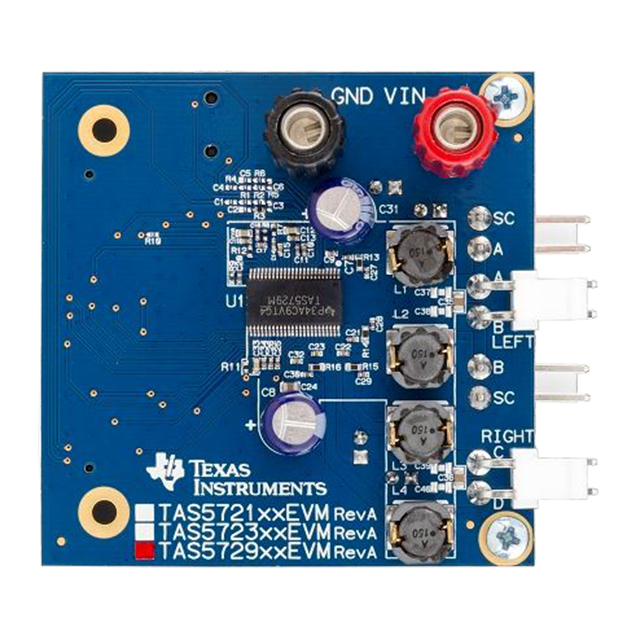

TAS5721 Series
10-W stereo, 8- to 26.4-V, digital input, open loop Class-D audio amplifier w/ 2.1 support & HP
Manufacturer: Texas Instruments
Catalog
10-W stereo, 8- to 26.4-V, digital input, open loop Class-D audio amplifier w/ 2.1 support & HP
Key Features
• Audio Input/Output10 W x 2 into 8 Ω With PVDD = 24 V8 W × 2 + 12 W × 1 into 8 Ω With PVDD = 24 VSupports 2.0, Single Device 2.1, and Mono ModesSupports 8-kHz to 48-kHz Sample Rate (LJ/RJ/I2S)Integrated DirectPath™ Headphone Amplifier and 2 VRMSLine DriverAudio/PWM ProcessingIndependent Channel Volume Controls With 24-dB to Mute in 0.5 dB StepsSeparate Dynamic Range Control for Satellite and Sub Channels21 Programmable Biquads for Speaker EQProgrammable Two-Band Dynamic Range ControlSupport for 3D EffectsGeneral FeaturesI2C™ Serial Control Interface Operational Without MCLKConfigurable I2C Address (0x34 or 0x36)Automatic Sample Rate DetectionThermal and Short-Circuit ProtectionWide PVDD Supply Range (4.5 V to 24 V)Audio Input/Output10 W x 2 into 8 Ω With PVDD = 24 V8 W × 2 + 12 W × 1 into 8 Ω With PVDD = 24 VSupports 2.0, Single Device 2.1, and Mono ModesSupports 8-kHz to 48-kHz Sample Rate (LJ/RJ/I2S)Integrated DirectPath™ Headphone Amplifier and 2 VRMSLine DriverAudio/PWM ProcessingIndependent Channel Volume Controls With 24-dB to Mute in 0.5 dB StepsSeparate Dynamic Range Control for Satellite and Sub Channels21 Programmable Biquads for Speaker EQProgrammable Two-Band Dynamic Range ControlSupport for 3D EffectsGeneral FeaturesI2C™ Serial Control Interface Operational Without MCLKConfigurable I2C Address (0x34 or 0x36)Automatic Sample Rate DetectionThermal and Short-Circuit ProtectionWide PVDD Supply Range (4.5 V to 24 V)
Description
AI
The TAS5721 is an efficient, digital-input audio amplifier for driving 2.0 speaker systems configured as a bridge tied load (BTL), 2.1 systems with two satellite speakers and one subwoofer, or in PBTL systems driving a single speaker configured as a parallel bridge tied load (PBTL). One serial data input allows processing of up to two discrete audio channels and seamless integration to most digital audio processors and MPEG decoders. The device accepts a wide range of input data formats and sample rates. A fully programmable data path routes these channels to the internal speaker drivers.
The TAS5721 is a slave-only device, receiving all clocks from external sources. The TAS5721 operates with a PWM carrier frequency between a 384-kHz switching rate and a 288-KHz switching rate, depending on the input sample rate. Oversampling, combined with a fourth-order noise shaper, provides a flat noise floor and excellent dynamic range from 20 Hz to 20 kHz.
An integrated ground centered DirectPath™ combination headphone amplifier and 2VRMSline driver is integrated in the TAS5721.
The TAS5721 is an efficient, digital-input audio amplifier for driving 2.0 speaker systems configured as a bridge tied load (BTL), 2.1 systems with two satellite speakers and one subwoofer, or in PBTL systems driving a single speaker configured as a parallel bridge tied load (PBTL). One serial data input allows processing of up to two discrete audio channels and seamless integration to most digital audio processors and MPEG decoders. The device accepts a wide range of input data formats and sample rates. A fully programmable data path routes these channels to the internal speaker drivers.
The TAS5721 is a slave-only device, receiving all clocks from external sources. The TAS5721 operates with a PWM carrier frequency between a 384-kHz switching rate and a 288-KHz switching rate, depending on the input sample rate. Oversampling, combined with a fourth-order noise shaper, provides a flat noise floor and excellent dynamic range from 20 Hz to 20 kHz.
An integrated ground centered DirectPath™ combination headphone amplifier and 2VRMSline driver is integrated in the TAS5721.
