TPS2561-Q1 Series

2-ch, 0.25-2.8A adj. ILIMIT (tuned for 2.3±0.2A), 2.5-6.5V, 44mΩ USB power switch, active-high

Catalog

2-ch, 0.25-2.8A adj. ILIMIT (tuned for 2.3±0.2A), 2.5-6.5V, 44mΩ USB power switch, active-high

Part	Interface	Rds On (Typ)	Package / Case	Current - Output (Max) [Max]	Input Type	Output Type	Fault Protection	Number of Outputs	Switch Type	Output Configuration	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Features	Ratio - Input:Output [custom]	Supplier Device Package	Voltage - Load [Max]	Voltage - Load [Min]	Function	Type	Utilized IC / Part	Supplied Contents	Qualification	Grade
Texas Instruments TPS2561ADRCT	On/Off	44 mOhm	10-VFDFN Exposed Pad	2.5 A	Non-Inverting	N-Channel	Current Limiting (Adjustable) Over Temperature UVLO	2	General Purpose	High Side	-40 °C	125 ¯C	Surface Mount	Slew Rate Controlled Status Flag	1:2	10-VSON (3x3)	6.5 V	2.5 V

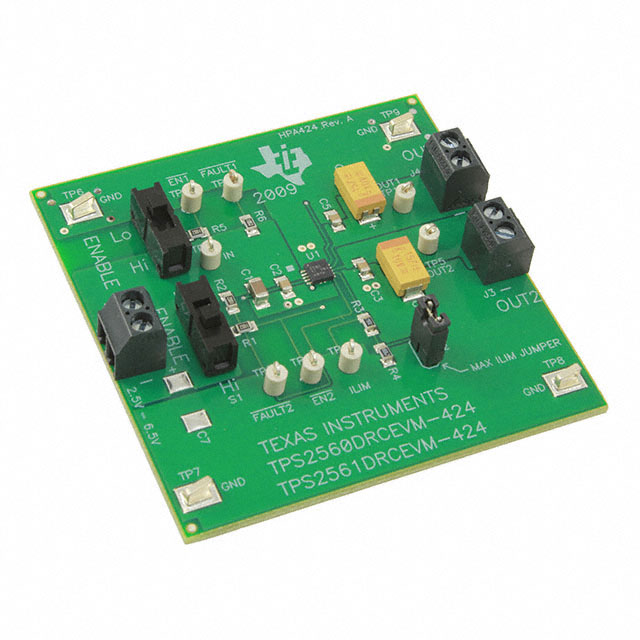

Texas Instruments TPS2561DRCEVM-424																			Power Distribution Switch (Load Switch)	Power Management	TPS2561	Board(s)
Texas Instruments TPS2561DRCT	On/Off	44 mOhm	10-VFDFN Exposed Pad	2.5 A	Non-Inverting	N-Channel	Current Limiting (Adjustable) Over Temperature UVLO	2	General Purpose	High Side	-40 °C	125 ¯C	Surface Mount	Slew Rate Controlled Status Flag	1:2	10-VSON (3x3)	6.5 V	2.5 V
Texas Instruments TPS2561QDRCRQ1	On/Off	44 mOhm	10-VFDFN Exposed Pad	2.5 A	Non-Inverting	N-Channel	Current Limiting (Adjustable) Over Temperature UVLO	2	General Purpose	High Side	-40 °C	125 ¯C	Surface Mount	Slew Rate Controlled Status Flag	1:2	10-VSON (3x3)	6.5 V	2.5 V					AEC-Q100	Automotive

Catalog

2-ch, 0.25-2.8A adj. ILIMIT (tuned for 2.3±0.2A), 2.5-6.5V, 44mΩ USB power switch, active-high

Key Features

• Qualified for Automotive ApplicationsTwo Separate Current Limiting ChannelsMeets USB Current-Limiting RequirementsAdjustable Current Limit, 250 mA–2.8 A (typ)± 7.5% Current-Limit Accuracy at 2.8 AFast Overcurrent Response - 3.5-µS (typ)Two 44-mΩ High-Side MOSFETsOperating Range: 2.5 V to 6.5 V2-µA Maximum Standby Supply CurrentBuilt-in Soft-Start15 kV or 8 kV System-Level ESD CapableUL Listed – File No. E169910CB and Nemko CertifiedQualified for Automotive ApplicationsTwo Separate Current Limiting ChannelsMeets USB Current-Limiting RequirementsAdjustable Current Limit, 250 mA–2.8 A (typ)± 7.5% Current-Limit Accuracy at 2.8 AFast Overcurrent Response - 3.5-µS (typ)Two 44-mΩ High-Side MOSFETsOperating Range: 2.5 V to 6.5 V2-µA Maximum Standby Supply CurrentBuilt-in Soft-Start15 kV or 8 kV System-Level ESD CapableUL Listed – File No. E169910CB and Nemko Certified

Description

The TPS2560A and TPS2561A are dual-channel power-distribution switches intended for applications where precision current limiting is required or heavy capacitive loads and short circuits are encountered. These devices offer a programmable current-limit threshold between 250 mA and 2.8 A (typ) per channel via an external resistor. The power-switch rise and fall times are controlled to minimize current surges during turn on/off. Each channel of the TPS2560A/61A devices limits the output current to a safe level by switching into a constant-current mode when the output load exceeds the current-limit threshold. TheFAULTxlogic output for each channel independently asserts low during overcurrent and over temperature conditions. The TPS2560A and TPS2561A are dual-channel power-distribution switches intended for applications where precision current limiting is required or heavy capacitive loads and short circuits are encountered. These devices offer a programmable current-limit threshold between 250 mA and 2.8 A (typ) per channel via an external resistor. The power-switch rise and fall times are controlled to minimize current surges during turn on/off. Each channel of the TPS2560A/61A devices limits the output current to a safe level by switching into a constant-current mode when the output load exceeds the current-limit threshold. TheFAULTxlogic output for each channel independently asserts low during overcurrent and over temperature conditions.
