1744048 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

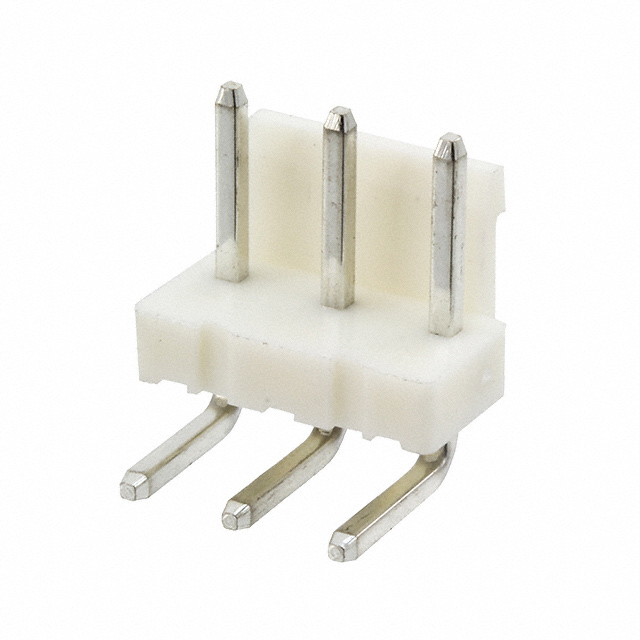

03P EC PWR.200 CL HDR ASSY RA

Part	Mounting Type	Number of Rows	Contact Type	Insulation Color	Number of Positions Loaded	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Post	Applications	Insulation Height	Insulation Height	Style	Contact Length - Post	Contact Length - Post	Termination	Contact Shape	Pitch - Mating	Pitch - Mating	Voltage Rating	Material Flammability Rating	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Mating	Contact Length - Mating	Fastening Type	Current Rating (Amps)	Connector Type	Insulation Material	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions
TE Connectivity Raychem Cable Protection 1744048-3	Through Hole Right Angle	1	Male Pin	Natural	All	2.03 µm	80 µin	Tin	General Purpose Industrial Lighting	0.335 "	8.51 mm	Board to Cable/Wire	3.6 mm	0.142 in	Solder	Square	5.08 mm	0.2 in	250 VAC	UL94 V-0	Shrouded - 1 Wall	2.03 µm	80 µin	8.59 mm	0.338 "	Locking Ramp	7.5 A	Header	Polyamide (PA66) Nylon 6/6	Copper Alloy	-25 °C	105 ░C

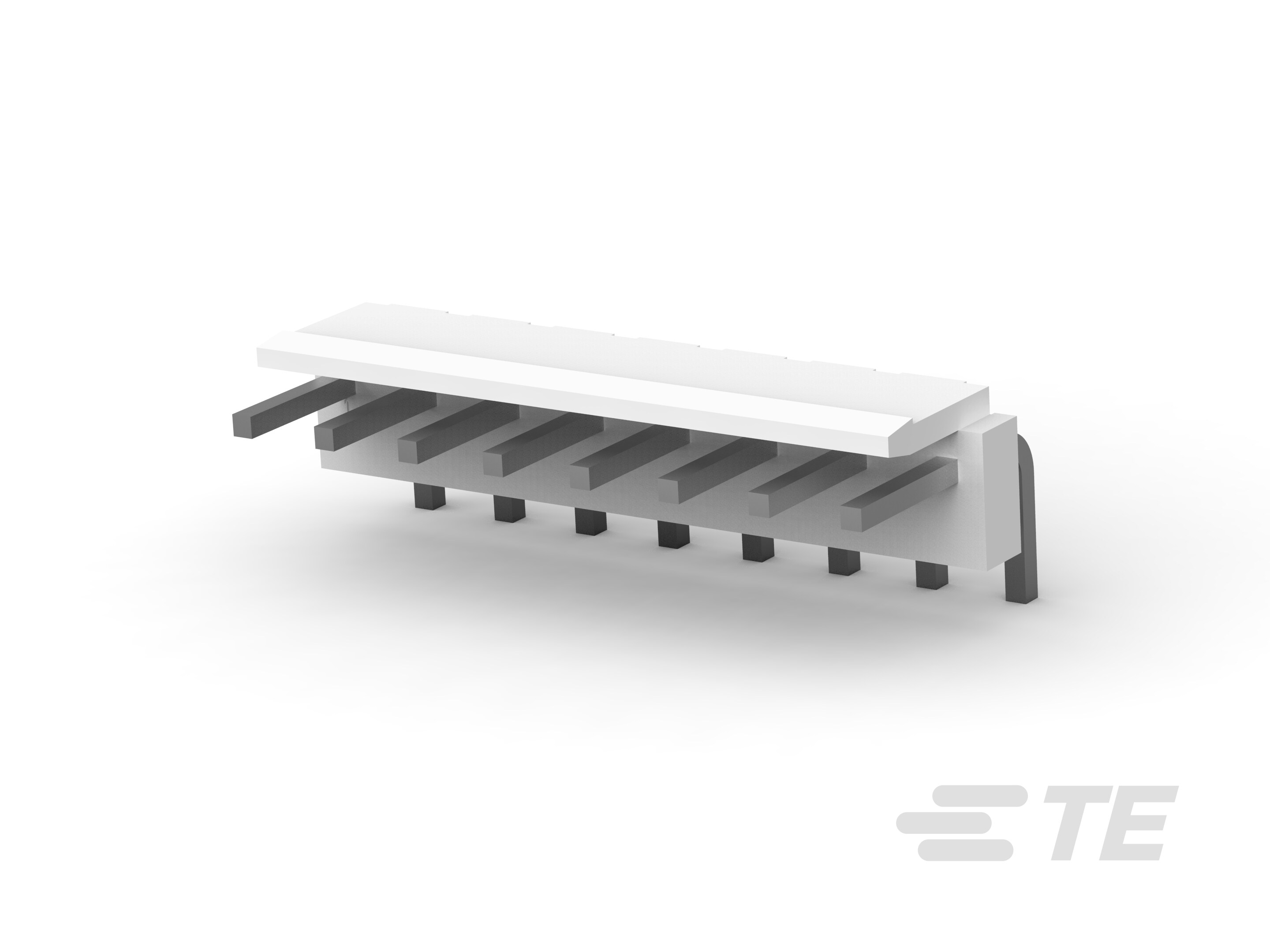

TE Connectivity Raychem Cable Protection 1744048-8	Through Hole Right Angle	1	Male Pin	Natural	All	2.03 µm	80 µin	Tin	General Purpose Industrial Lighting	0.335 "	8.51 mm	Board to Cable/Wire	3.6 mm	0.142 in	Solder	Square	5.08 mm	0.2 in	250 VAC	UL94 V-0	Shrouded - 1 Wall	2.03 µm	80 µin	8.59 mm	0.338 "	Locking Ramp	7.5 A	Header	Polyamide (PA66) Nylon 6/6	Copper Alloy	-25 °C	105 ░C	8

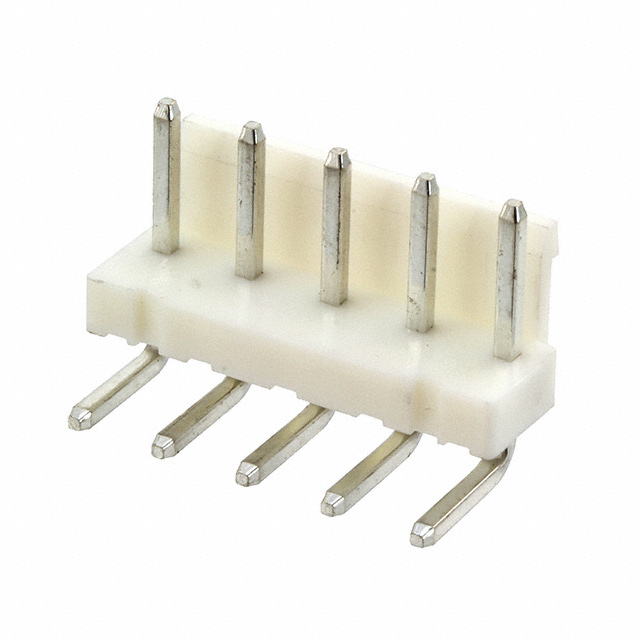

TE Connectivity Raychem Cable Protection 1744048-5	Through Hole Right Angle	1	Male Pin	Natural	All	2.03 µm	80 µin	Tin	General Purpose Industrial Lighting	0.335 "	8.51 mm	Board to Cable/Wire	3.6 mm	0.142 in	Solder	Square	5.08 mm	0.2 in	250 VAC	UL94 V-0	Shrouded - 1 Wall	2.03 µm	80 µin	8.59 mm	0.338 "	Locking Ramp	7.5 A	Header	Polyamide (PA66) Nylon 6/6	Copper Alloy	-25 °C	105 ░C
