BLM18KG Series

Catalog

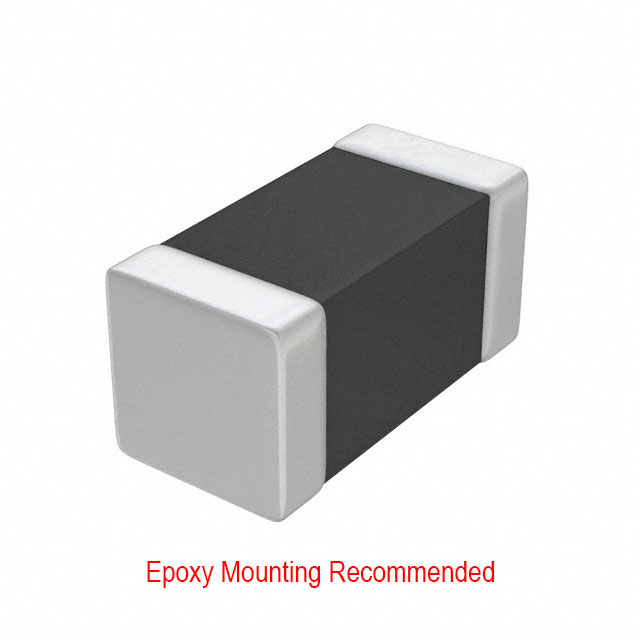

FERRITE BEADS MULTI-LAYER POWER 70OHM 25% 100MHZ 3.5A 0.022OHM DCR 0603 T/R AUTOMOTIVE AEC-Q200

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Impedance @ Frequency	Operating Temperature [Min]	Operating Temperature [Max]	Number of Lines	Mounting Type	Height (Max) [z]	Height (Max) [z]	DC Resistance (DCR) (Max) [Max]	Filter Type	Current Rating (Max) [Max]	Size / Dimension [y]	Package / Case	Package / Case	Ratings
Murata Electronics BLM18KG700TH1D	0.031 in 0.032 in	0.063 "	1.6 mm	0.8 mm	70 Ohms	-55 C	125 °C	1	Surface Mount	0.75 mm	0.03 in	22 mOhm	Power Line	3.5 A	0.8 mm	1608 Metric	0603	AEC-Q200
Murata Electronics BLM18KG221SH1D	0.031 in 0.032 in	0.063 "	1.6 mm	0.8 mm	220 Ohms	-55 C	125 °C	1	Surface Mount	0.95 mm	0.037 in	50 mOhm	Power Line	2.2 A	0.8 mm	1608 Metric	0603	AEC-Q200
Murata Electronics BLM18KG121TZ1D	0.031 in 0.032 in	0.063 "	1.6 mm	0.8 mm	120 Ohms	-55 C	125 °C	1	Surface Mount	0.75 mm	0.03 in	30 mOhm	Power Line	3 A	0.8 mm	1608 Metric	0603	AEC-Q200
Murata Electronics BLM18KG700JH1D	0.031 in 0.032 in	0.063 "	1.6 mm	0.8 mm	70 Ohms	-55 C	150 °C	1	Surface Mount	0.75 mm	0.03 in	22 mOhm	Power Line	2.2 A	0.8 mm	1608 Metric	0603	AEC-Q200
Murata Electronics BLM18KG331SN1D	0.031 in 0.032 in	0.063 "	1.6 mm	0.8 mm	330 Ohms	-55 C	125 °C	1	Surface Mount	0.95 mm	0.037 in	80 mOhm	Power Line		0.8 mm	1608 Metric	0603
Murata Electronics BLM18KG221BH1D	0.031 in 0.032 in	0.063 "	1.6 mm	0.8 mm	220 Ohms	-55 C	150 °C	1	Surface Mount	0.95 mm	0.037 in	50 mOhm	Power Line	1.5 A	0.8 mm	1608 Metric	0603	AEC-Q200
Murata Electronics BLM18KG221SZ1D	0.031 in 0.032 in	0.063 "	1.6 mm	0.8 mm	220 Ohms	-55 C	125 °C	1	Surface Mount	0.95 mm	0.037 in	50 mOhm	Power Line	2.2 A	0.8 mm	1608 Metric	0603	AEC-Q200
Murata Electronics BLM18KG102SZ1D	0.031 in 0.032 in	0.063 "	1.6 mm	0.8 mm	1 kOhms	-55 C	125 °C	1	Surface Mount	0.95 mm	0.037 in	200 mOhm	Power Line	1 A	0.8 mm	1608 Metric	0603	AEC-Q200
Murata Electronics BLM18KG471SH1D	0.031 in 0.032 in	0.063 "	1.6 mm	0.8 mm	470 Ohms	-55 C	125 °C	1	Surface Mount	0.95 mm	0.037 in	130 mOhm	Power Line	1.5 A	0.8 mm	1608 Metric	0603	AEC-Q200
Murata Electronics BLM18KG601SH1D	0.031 in 0.032 in	0.063 "	1.6 mm	0.8 mm	600 Ohms	-55 C	125 °C	1	Surface Mount	0.95 mm	0.037 in	150 mOhm	Power Line	1.3 A	0.8 mm	1608 Metric	0603	AEC-Q200
