M2403 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

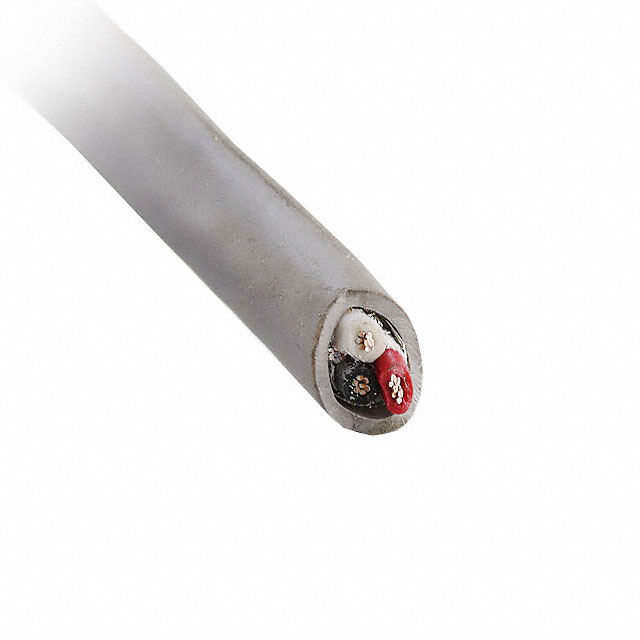

CABLE 3COND 28AWG SHLD
| Part | Shield Material | Shield Coverage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Features | Ratings | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Shield Type | Wire Gauge | Jacket Color | Conductor Material | Voltage | Conductor Strand [custom] | Conductor Strand [custom] | Length | Length | Conductor Insulation | Jacket (Insulation) Material | Operating Temperature [Max] | Operating Temperature [Min] | Number of Conductors | Cable Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum Copper Tinned | 65 % 100 % | 0.813 mm | 0.032 in | Drain Wire Rip Cord | UL Style 2464 | 4.19 mm | 0.165 in | Braid Foil | 28 AWG | Slate | Copper Tinned | 300 VDC | 7 | 36 AWG | 304.8 m | 1000 ft | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | 80 °C | -20 ░C | 3 | Multi-Conductor |
