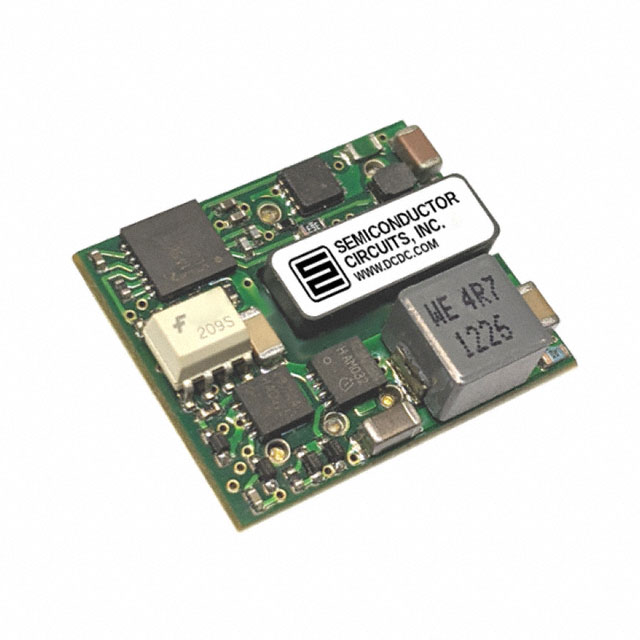

CPZ4A36 Series

Catalog

DC DC CONVERTER 5V 20W

Part	Features	Efficiency	Approval Agency	Voltage - Isolation	Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Supplier Device Package	Voltage - Input (Max) [Max]	Applications	Voltage - Input (Min) [Min]	Package / Case	Current - Output (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Mounting Type	Number of Outputs	Control Features	Voltage - Output 1
Semiconductor Circuits, Inc. CPZ4A36PS	Adjustable Output Remote On/Off Remote Sense	87 %	TUV	1.5 kV	Isolated Module	0.94 in	23.9 mm	8.9 mm	0.78 in	0.35 in	19.8 mm	Thirty-Second Brick	72 V	ITE (Commercial)	18 V	Thirty-Second Brick	4 A	-40 °C	85 °C	20 W	Surface Mount	1	Active High Enable	5 V
Semiconductor Circuits, Inc. CPZ4A36N	Adjustable Output Remote On/Off Remote Sense	87 %	TUV	1.5 kV	Isolated Module	0.94 in	23.9 mm	8.9 mm	0.78 in	0.35 in	19.8 mm	Thirty-Second Brick	72 V	ITE (Commercial)	18 V	Thirty-Second Brick	4 A	-40 °C	85 °C	20 W	Through Hole	1	Active Low Enable	5 V
