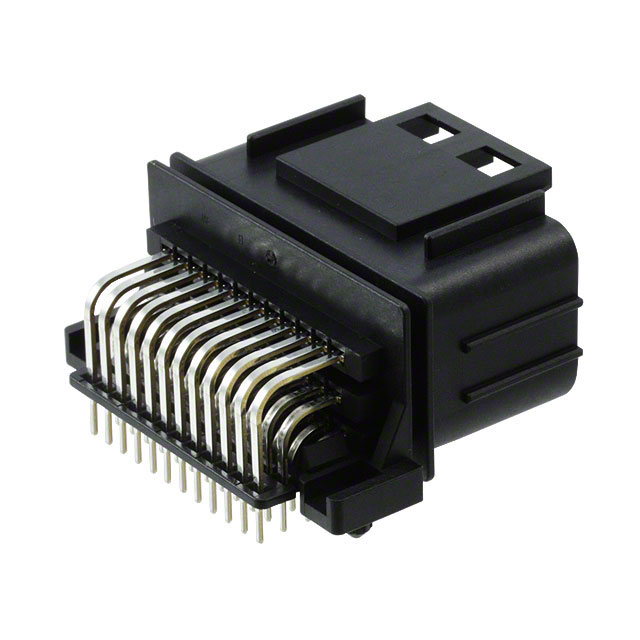

MX23A36N Series
Manufacturer: JAE Electronics
Beta
⌘K
AUTOMOTIVE CONNECTORS PIN HEADER 36P
| Part | Applications | Insulation Material | Contact Type | Ingress Protection | Number of Positions Loaded | Number of Rows [custom] | Termination | Insulation Height | Insulation Height | Pitch - Mating | Pitch - Mating | Contact Shape | Current Rating (Amps) | Contact Material | Contact Finish - Post | Features | Row Spacing - Mating | Row Spacing - Mating | Fastening Type | Contact Length - Post [x] | Contact Length - Post [x] | Mounting Type | Connector Type | Shrouding | Number of Positions | Insulation Color | Operating Temperature [Max] | Operating Temperature [Min] | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JAE Electronics | Automotive | Polybutylene Terephthalate (PBT) Glass Filled | Male Pin | Waterproof | All | 2 | Solder | 0.72 in | 18.3 mm | 2.5 mm | 0.098 in | Square | 3 A | Brass | Tin | Board Guide | 4.4 mm | 0.173 " | Latch Holder | 0.122 in | 3.1 mm | Right Angle Through Hole | Header | Shrouded - 4 Wall | 36 | Black | 125 °C | -40 C | Board to Cable/Wire |
 JAE Electronics | Automotive | Polybutylene Terephthalate (PBT) Glass Filled | Male Pin | Waterproof | All | 2 | Solder | 0.72 in | 18.3 mm | 2.5 mm | 0.098 in | Square | 3 A | Brass | Tin | Board Guide | 4.4 mm | 0.173 " | Latch Holder | 0.122 in | 3.1 mm | Right Angle Through Hole | Header | Shrouded - 4 Wall | 36 | Black | 125 °C | -40 C | Board to Cable/Wire |
