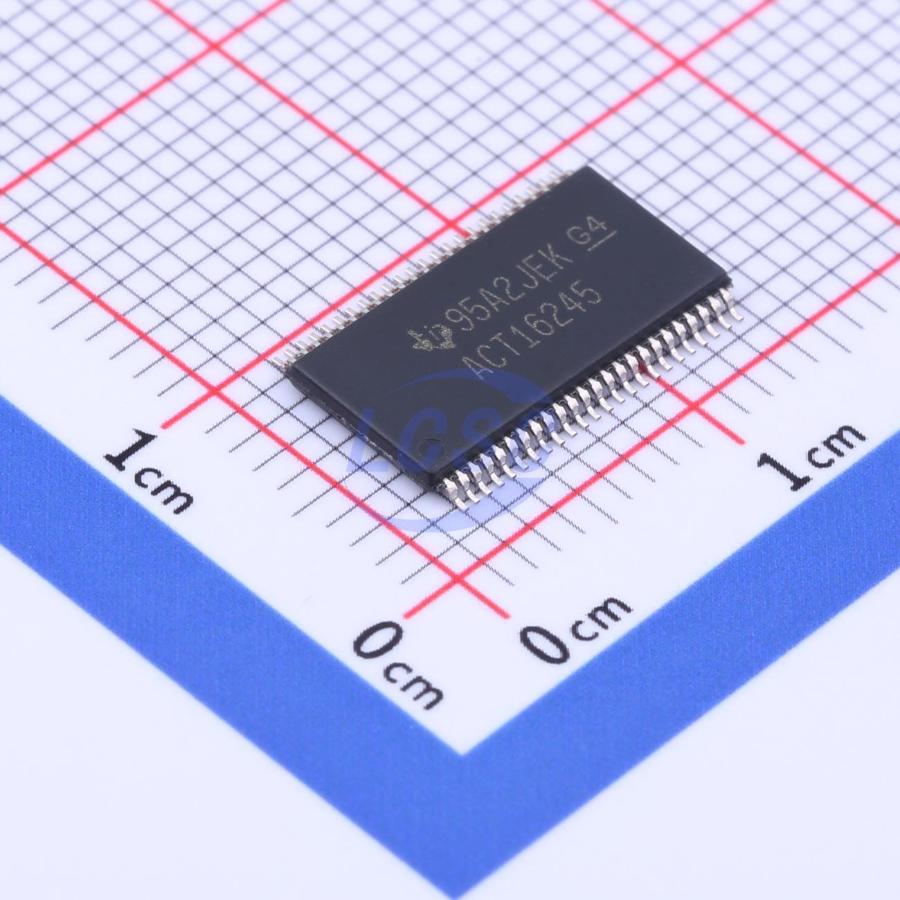

SN74ACT16245-EP Series

Enhanced product 16-ch, 4.5-V to 5.5-V inverters with Schmitt-Trigger inputs

Catalog

Enhanced product 16-ch, 4.5-V to 5.5-V inverters with Schmitt-Trigger inputs

Part	Supplier Device Package	Voltage - Supply [Min]	Voltage - Supply [Max]	Number of Bits per Element	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Mounting Type	Current - Output High, Low	Package / Case [y]	Package / Case	Package / Case [y]	Number of Elements	Package / Case	Package / Case [custom]	Current - Output High, Low [custom]	Current - Output High, Low [custom]
Texas Instruments 74ACT16245DLR	48-SSOP	4.5 V	5.5 V	8	85 °C	-40 °C	3-State	Surface Mount	24 mA	0.295 in	48-BSSOP	7.5 mm	2
Texas Instruments 74ACT16245DGGR	48-TSSOP	4.5 V	5.5 V	8	85 °C	-40 °C	3-State	Surface Mount	24 mA		48-TFSOP		2	0.24 in	6.1 mm
Texas Instruments SN74ACT16245QDLREP	48-SSOP	4.5 V	5.5 V	8	125 °C	-40 °C	3-State	Surface Mount		0.295 in	48-BSSOP	7.5 mm	2			16 mA	16 mA
Texas Instruments 74ACT16245DLRG4	48-SSOP	4.5 V	5.5 V	8	85 °C	-40 °C	3-State	Surface Mount	24 mA	0.295 in	48-BSSOP	7.5 mm	2

Catalog

Enhanced product 16-ch, 4.5-V to 5.5-V inverters with Schmitt-Trigger inputs

Key Features

• Controlled BaselineOne Assembly/Test Site, One Fabrication SiteExtended Temperature Performance of –40°C to 125°CEnhanced Diminishing Manufacturing Sources (DMS) SupportEnhanced Product Change NotificationQualification PedigreeMember of the Texas Instruments Widebus™ FamilyInputs Are TTL-Voltage Compatible3-State Outputs Drive Bus Lines DirectlyFlow-Through Architecture Optimizes PCB LayoutDistributed VCCand GND Pins Minimize High-Speed Switching NoiseComponent qualification in accordance with JEDEC and industry standards to ensure reliable operation over an extended temperature range. This includes, but is not limited to, highly accelerated stress test (HAST) or biased 85/85, temperature cycle, autoclave or unbiased HAST, electromigration, bond intermetallic life, and mold compound life.Widebus is a trademark of Texas Instruments.Controlled BaselineOne Assembly/Test Site, One Fabrication SiteExtended Temperature Performance of –40°C to 125°CEnhanced Diminishing Manufacturing Sources (DMS) SupportEnhanced Product Change NotificationQualification PedigreeMember of the Texas Instruments Widebus™ FamilyInputs Are TTL-Voltage Compatible3-State Outputs Drive Bus Lines DirectlyFlow-Through Architecture Optimizes PCB LayoutDistributed VCCand GND Pins Minimize High-Speed Switching NoiseComponent qualification in accordance with JEDEC and industry standards to ensure reliable operation over an extended temperature range. This includes, but is not limited to, highly accelerated stress test (HAST) or biased 85/85, temperature cycle, autoclave or unbiased HAST, electromigration, bond intermetallic life, and mold compound life.Widebus is a trademark of Texas Instruments.

Description

The SN54ACT16245 and 74ACT16245 are 16-bit bus transceivers organized as dual-octal noninverting 3-state transceivers and designed for asynchronous two-way communication between data buses. The control-function implementation minimizes external timing requirements. The devices allow data transmission from the A bus to the B bus or from the B bus to the A bus, depending on the logic level at the direction-control (DIR) input. The enable (G\) input can be used to disable the devices so that the buses are effectively isolated. The SN54ACT16245 is characterized for operation over the full military temperature range of -55°C to 125°C. The 74ACT16245 is characterized for operation from -40°C to 85°C. The SN54ACT16245 and 74ACT16245 are 16-bit bus transceivers organized as dual-octal noninverting 3-state transceivers and designed for asynchronous two-way communication between data buses. The control-function implementation minimizes external timing requirements. The devices allow data transmission from the A bus to the B bus or from the B bus to the A bus, depending on the logic level at the direction-control (DIR) input. The enable (G\) input can be used to disable the devices so that the buses are effectively isolated. The SN54ACT16245 is characterized for operation over the full military temperature range of -55°C to 125°C. The 74ACT16245 is characterized for operation from -40°C to 85°C.
