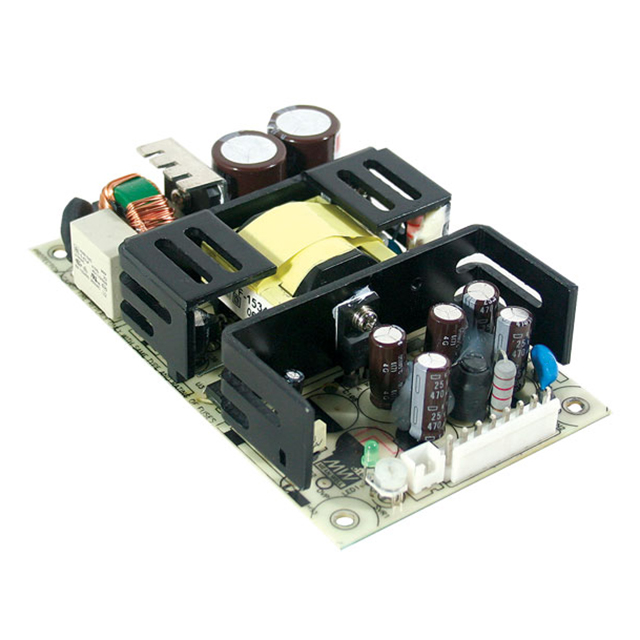

RPS-75 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
AC/DC CONVERTER 5V 70W
| Part | Minimum Load Required | Features | Type | Applications | Voltage - Input [Max] | Voltage - Input [Min] | Number of Outputs | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Current - Output 1 [custom] | Voltage - Isolation | Approval Agency | Operating Temperature [Max] | Operating Temperature [Min] | Efficiency | Power (Watts) | Voltage - Output 1 | Mounting Type | Current - Output 1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | Adjustable Output Universal Input | Open Frame | Household Appliances Medical | 264 VAC 370 VDC | 90 VAC 127 VDC | 1 | 5 " | 76.2 mm | 31 mm | 1.22 in | 3 " | 127 mm | 14 A | 4000 V | CB CE cURus TUV | 70 °C | -20 °C | 78 % | 70 W | 5 V | Chassis Mount | ||
MEAN WELL USA Inc. | Adjustable Output Universal Input | Open Frame | Household Appliances Medical | 264 VAC 370 VDC | 90 VAC 127 VDC | 1 | 5 " | 76.2 mm | 31 mm | 1.22 in | 3 " | 127 mm | 4000 V | CB CE cURus TUV | 70 °C | -20 °C | 86 % | 77 W | 48 V | Chassis Mount | 1.6 A | ||
MEAN WELL USA Inc. | Adjustable Output Universal Input | Open Frame | Household Appliances Medical | 264 VAC 370 VDC | 90 VAC 127 VDC | 1 | 5 " | 76.2 mm | 31 mm | 1.22 in | 3 " | 127 mm | 4000 V | CB CE cURus TUV | 70 °C | -20 °C | 73 % | 50 W | 3.3 V | Chassis Mount | 15 A |
