09330102 Series
Manufacturer: HARTING
Beta
⌘K
HEAVY DUTY CONNECTOR, HAN 6ES PRESS SERIES, INSERT, 10 CONTACTS, 10B, RECEPTACLE
| Part | Housing Material | Material Flammability Rating | Contact Material | Contact Finish | Color | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating | Size | Gender | Termination Style | Connector Type | Current Rating (Amps) | Number of Positions | Contact Material [custom] | Contact Material [custom] | Contact Type | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 HARTING | Polycarbonate (PC) | UL94 V-0 | Copper Alloy | Silver | Gray | 125 °C | -40 C | 500 V | 10B | Female | Tension Clamp | Insert | 16 A | 10+Ground | ||||
 HARTING | Polycarbonate (PC) | UL94 V-0 | Copper Alloy | Silver | Gray | 125 °C | -40 C | 600 V | 10B | Female | Push In | Insert | 16 A | 10+Ground | ||||
 HARTING | Polycarbonate (PC) | UL94 V-0 | Gold | Gray | 125 °C | -40 C | 400 V | 10B | Female | Screw | Insert | 16 A | 10+Ground | FE/KO | Iron-Constantan | |||

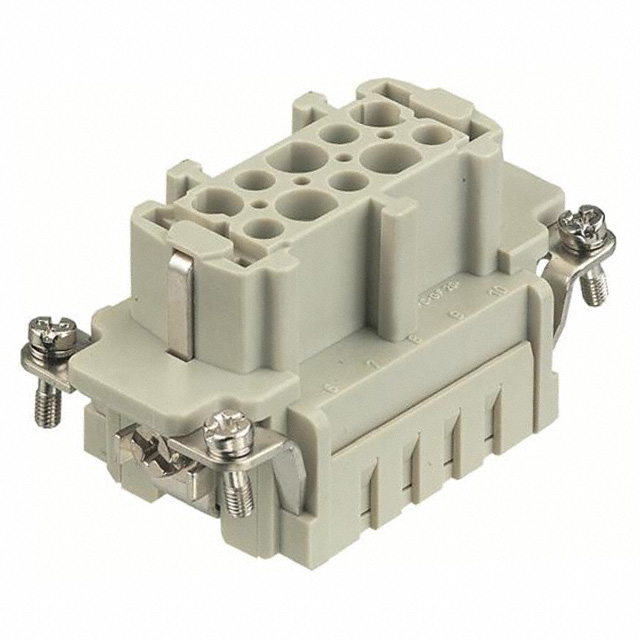

 HARTING | Polycarbonate (PC) | UL94 V-0 | Gray | 125 °C | -40 C | 600 V | 10B | Male | Crimp | Insert without Contacts | 16 A | 10+Ground | Han® | |||||
 HARTING | Male | Crimp | Insert without Contacts | 10 | ||||||||||||||
 HARTING | Polycarbonate (PC) | UL94 V-0 | Gray | 125 °C | -40 C | 600 V | 10B | Female | Crimp | Insert without Contacts | 16 A | 10+Ground | Han® | |||||

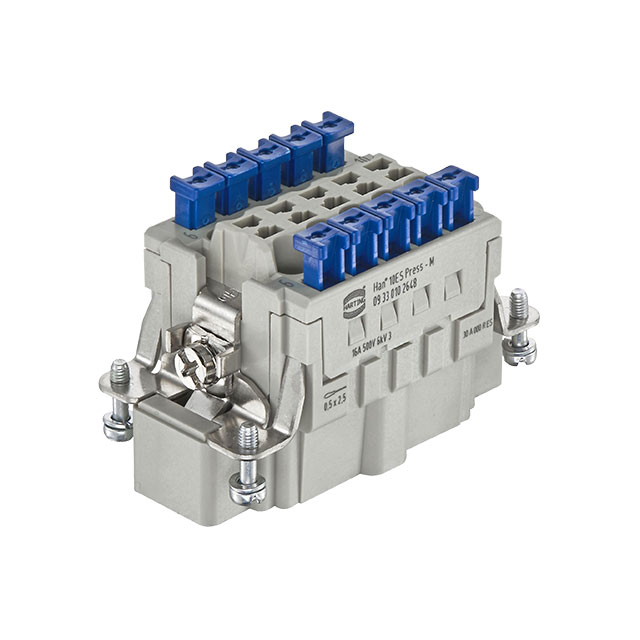

 HARTING | Polycarbonate (PC) | UL94 V-0 | Copper Alloy | Silver | Gray | 125 °C | -40 C | 500 V | 10B | Male | Push In | Insert | 16 A | 10+Ground | ||||
 HARTING | Polycarbonate (PC) | UL94 V-0 | Copper Alloy | Silver | Gray | 125 °C | -40 C | 500 V | 10B | Male | Tension Clamp | Insert | 16 A | 10+Ground |
