BQ24125 Series
Manufacturer: Texas Instruments
Beta
⌘K
STANDALONE 1-3 CELL 2A SYNCHRONOUS BUCK BATTERY CHARGER WITH ENHANCED EMI PERFORMANCE
| Part | Current - Charging | Battery Pack Voltage | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Supply (Max) [Max] | Programmable Features | Battery Chemistry | Fault Protection | Number of Cells [Min] | Number of Cells [Max] | Package / Case | Charge Current - Max [Max] | Supplier Device Package | Contents | Function | Supplied Contents | Type | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | Constant - Programmable | 8.4 V | Surface Mount | 85 °C | -40 °C | 16 V | Current Timer | Lithium Ion/Polymer | Over Temperature | 1 | 3 cells | 20-VFQFN Exposed Pad | 2 A | 20-VQFN (3.5x4.5) | |||||

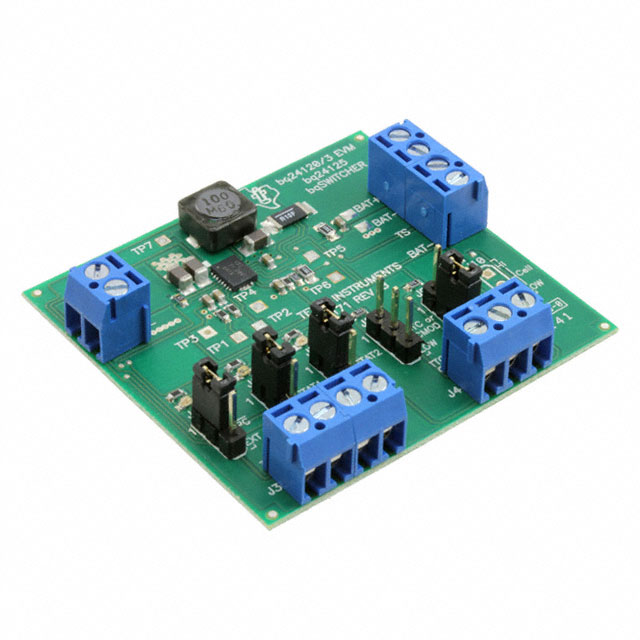

 Texas Instruments | Board(s) | Battery Charger | Board(s) | Power Management | BQ24125 | ||||||||||||||
Texas Instruments | Constant - Programmable | 8.4 V | Surface Mount | 85 °C | -40 °C | 16 V | Current Timer | Lithium Ion/Polymer | Over Temperature | 1 | 3 cells | 20-VFQFN Exposed Pad | 2 A | 20-VQFN (3.5x4.5) |
