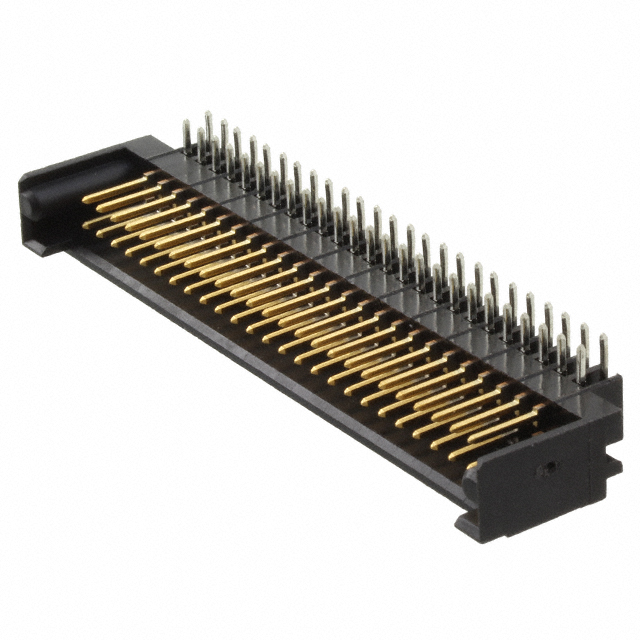

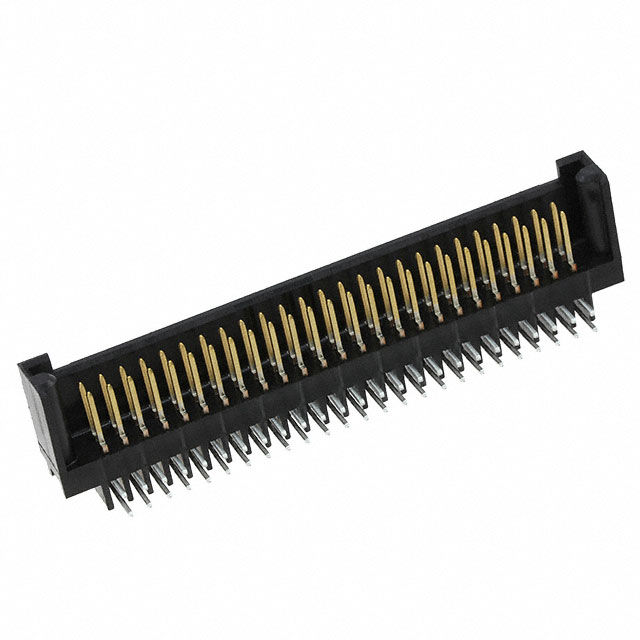

102802 Series

Catalog

72 MODII 2PC HDR DRRA SHRD ROHS COMPLIANT: NO

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions	Voltage Rating	Connector Type	Insulation Color	Mounting Type	Contact Type	Style	Fastening Type	Termination	Number of Rows [custom]	Contact Length - Post	Contact Length - Post	Current Rating (Amps)	Insulation Material	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Mating	Material Flammability Rating	Contact Finish - Post	Insulation Height [z]	Insulation Height [z]	Contact Length - Mating	Contact Length - Mating	Contact Shape	Contact Material	Shrouding	Row Spacing - Mating [x]	Row Spacing - Mating [x]
TE Connectivity AMP Connectors 1-102802-7	2.54 µm	100 µin	72	250 VAC	Header	Black	Right Angle Through Hole	Male Pin	Board to Board Cable	Push-Pull	Solder	2	0.125 in	3.18 mm	2 A	Thermoplastic	All	0.76 Ám	30 Áin	0.1 "	2.54 mm	105 ░C	-65 ░C	Gold	UL94 V-0	Tin-Lead	0.319 in	8.1 mm	0.32 in	8.13 mm	Square	Phosphor Bronze	Shrouded - 3 Wall	0.1 in	2.54 mm
TE Connectivity AMP Connectors 1-102802-2	2.54 µm	100 µin	12	250 VAC	Header	Black	Right Angle Through Hole	Male Pin	Board to Board Cable	Push-Pull	Solder	2	0.125 in	3.18 mm	2 A	Thermoplastic	All	0.76 Ám	30 Áin	0.1 "	2.54 mm	105 ░C	-65 ░C	Gold	UL94 V-0	Tin-Lead	0.319 in	8.1 mm	0.32 in	8.13 mm	Square	Phosphor Bronze	Shrouded - 3 Wall	0.1 in	2.54 mm
