E2E-X18 Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K

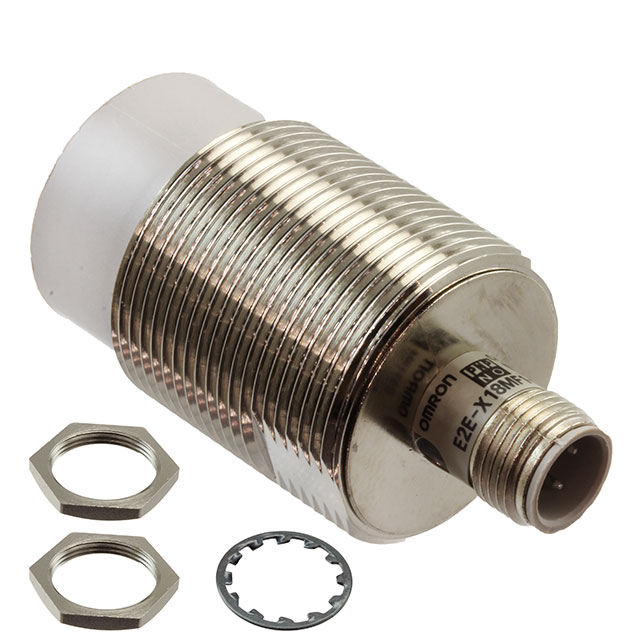

SENSOR INDUCT 15MM NPN M30 NO/NC
| Part | Termination Style | Shielding | Ingress Protection | Package / Case | Voltage - Supply [Max] | Voltage - Supply [Min] | Output Type | Response Frequency | Operating Temperature [Max] | Operating Temperature [Min] | Indicator [custom] | Sensor Type | Sensing Distance | Sensing Distance | Material - Body |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Omron Electronics Inc-EMC Div | Cable with Connector | Unshielded | IP67 IP69K | Cylinder Threaded - M30 | 30 VDC | 10 VDC | 3-Wire NPN-NC/NO | 100 Hz | 70 °C | -25 °C | LED | Inductive | 18 mm | 0.709 in | Nickel-Plated Brass |
Omron Electronics Inc-EMC Div | Cable Leads | Unshielded | IP67 IP69K | Cylinder Threaded - M30 | 30 VDC | 10 VDC | NPN-NO 3-Wire | 100 Hz | 85 °C | -40 °C | LED | Inductive | 18 mm | 0.709 in | Nickel-Plated Brass |
Omron Electronics Inc-EMC Div | Cable Leads | Unshielded | IP67 IP69K | Cylinder Threaded - M30 | 30 VDC | 10 VDC | PNP-NC/NO 3-Wire | 100 Hz | 85 °C | -40 °C | LED | Inductive | 18 mm | 0.709 in | Nickel-Plated Brass |
 Omron Electronics Inc-EMC Div | Cable Leads | Unshielded | IP67 | Cylinder Threaded - M30 | 40 VDC | 10 VDC | NPN-NO 3-Wire | 100 Hz | 85 °C | -40 °C | LED | Inductive | 18 mm | 0.709 in | Nickel-Plated Brass |
Omron Electronics Inc-EMC Div | Connector | Unshielded | IP67 | Cylinder Threaded - M30 | 264 VAC | 20 VAC | SCR-NO 2-Wire | 25 Hz | 70 °C | -25 °C | LED | Inductive | 18 mm | 0.709 in | Nickel-Plated Brass |
Omron Electronics Inc-EMC Div | Cable Leads | Unshielded | IP67 | Cylinder Threaded - M30 | 40 VDC | 10 VDC | NPN-NO 3-Wire | 100 Hz | 85 °C | -40 °C | LED | Inductive | 18 mm | 0.709 in | Nickel-Plated Brass |
Omron Electronics Inc-EMC Div | Connector | Unshielded | IP67 IP69K | Cylinder Threaded - M30 | 30 VDC | 10 VDC | NPN-NO 3-Wire | 100 Hz | 85 °C | -40 °C | LED | Inductive | 18 mm | 0.709 in | Nickel-Plated Brass |
Omron Electronics Inc-EMC Div | Cable Leads | Unshielded | IP67 IP69K | Cylinder Threaded - M30 | 30 VDC | 10 VDC | NPN-NC 3-Wire | 100 Hz | 85 °C | -40 °C | LED | Inductive | 18 mm | 0.709 in | Nickel-Plated Brass |
Omron Electronics Inc-EMC Div | Cable Leads | Unshielded | IP67 IP69K | Cylinder Threaded - M30 | 30 VDC | 10 VDC | PNP-NO 3-Wire | 100 Hz | 85 °C | -40 °C | LED | Inductive | 18 mm | 0.709 in | Nickel-Plated Brass |
Omron Electronics Inc-EMC Div | Cable Leads | Unshielded | IP67 IP69K | Cylinder Threaded - M30 | 30 VDC | 10 VDC | PNP-NO 3-Wire | 100 Hz | 85 °C | -40 °C | LED | Inductive | 18 mm | 0.709 in | Nickel-Plated Brass |
