PCE-B Series
Manufacturer: Adam Tech
Beta
⌘K
RECEPTICAL WITH HOOKS 8P 2.54MM
| Part | Insulation Material | Applications | Contact Shape | Contact Material | Material Flammability Rating | Pitch - Mating | Pitch - Mating | Contact Finish - Post | Features | Current Rating (Amps) | Connector Type | Insulation Color | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Contact Length - Post | Contact Length - Post | Insulation Height [z] | Insulation Height [z] | Style | Voltage Rating | Termination | Mounting Type | Number of Rows | Fastening Type | Contact Type | Number of Positions Loaded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

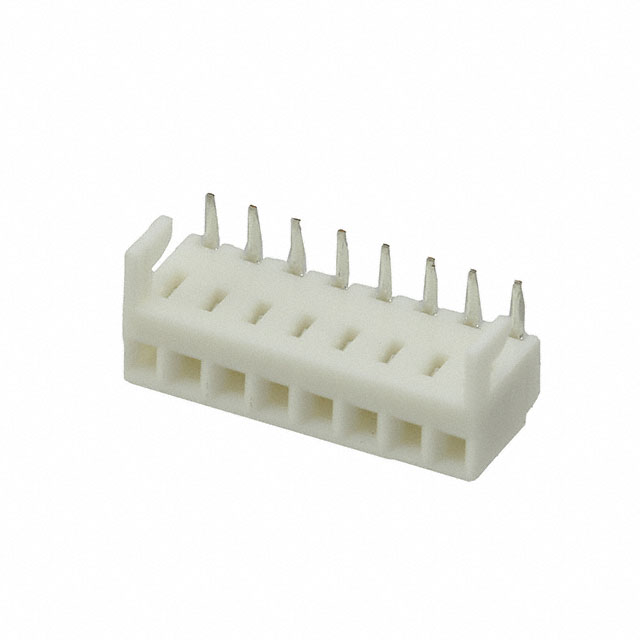

 Adam Tech | Nylon Polyamide (PA) | Automotive General Purpose Medical Telecommunications | Square | Phosphor Bronze | UL94 V-0 | 0.1 " | 2.54 mm | Tin | Board Hooks | 2.5 A | Receptacle | White | 75 ░C | 0 °C | 8 | 0.132 in | 3.35 mm | 0.185 in | 4.7 mm | Board to Board Cable | 250 VAC | Solder | Board Edge Right Angle Through Hole | 1 | Push-Pull | Non-Gendered | All |

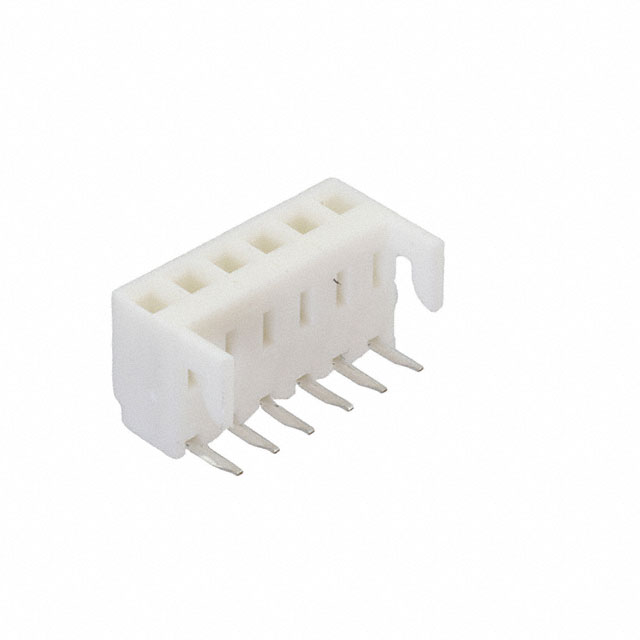

 Adam Tech | Nylon Polyamide (PA) | Automotive General Purpose Medical Telecommunications | Square | Phosphor Bronze | UL94 V-0 | 0.1 " | 2.54 mm | Tin | Board Hooks | 2.5 A | Receptacle | White | 75 ░C | 0 °C | 6 | 0.132 in | 3.35 mm | 0.185 in | 4.7 mm | Board to Board Cable | 250 VAC | Solder | Board Edge Right Angle Through Hole | 1 | Push-Pull | Non-Gendered | All |

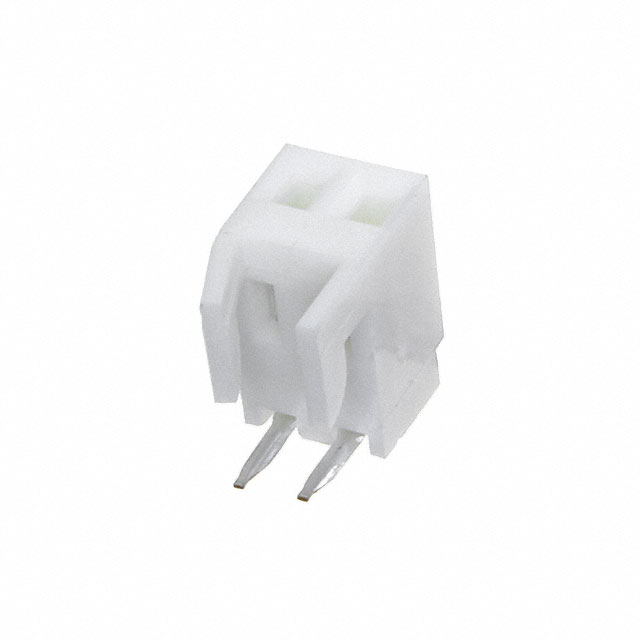

 Adam Tech | Nylon Polyamide (PA) | Automotive General Purpose Medical Telecommunications | Square | Phosphor Bronze | UL94 V-0 | 0.1 " | 2.54 mm | Tin | Board Hooks | 2.5 A | Receptacle | White | 75 ░C | 0 °C | 2 | 0.132 in | 3.35 mm | 0.185 in | 4.7 mm | Board to Board Cable | 250 VAC | Solder | Board Edge Right Angle Through Hole | 1 | Push-Pull | Non-Gendered | All |

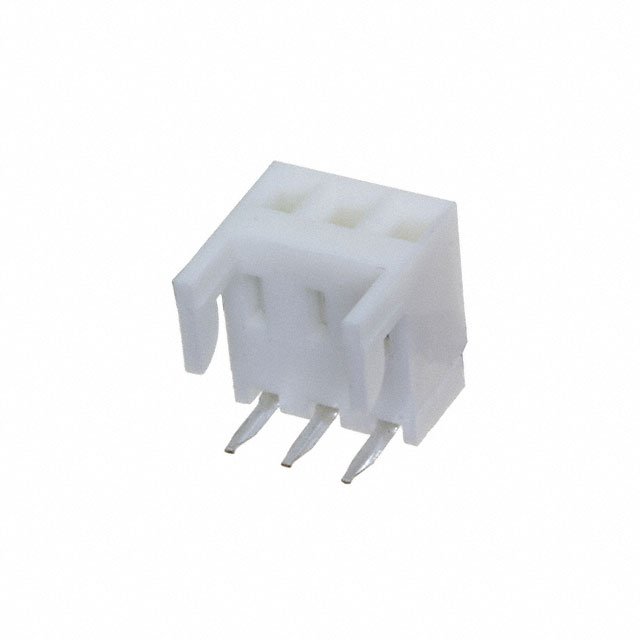

 Adam Tech | Nylon Polyamide (PA) | Automotive General Purpose Medical Telecommunications | Square | Phosphor Bronze | UL94 V-0 | 0.1 " | 2.54 mm | Tin | Board Hooks | 2.5 A | Receptacle | White | 75 ░C | 0 °C | 0.132 in | 3.35 mm | 0.185 in | 4.7 mm | Board to Board Cable | 250 VAC | Solder | Board Edge Right Angle Through Hole | 1 | Push-Pull | Non-Gendered | All |
