324581 Series

Catalog

CONN SPADE TERM 10-12AWG #6 YEL

Part	Tongue Inside Opening [x]	Tongue Inside Opening [x]	Stud/Tab Size	Width - Outer Edges [x]	Width - Outer Edges [x]	Length - Overall	Length - Overall [x]	Material - Insulation	Contact Material	Color	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Insulation Diameter [Max]	Insulation Diameter [Min]	Insulation Diameter [Min]	Insulation Diameter [Max]	Length - Termination	Length - Termination	Features	Insulation	Wire Gauge [Max]	Wire Gauge [Min]	Contact Finish	Terminal Type	Termination	Mounting Type

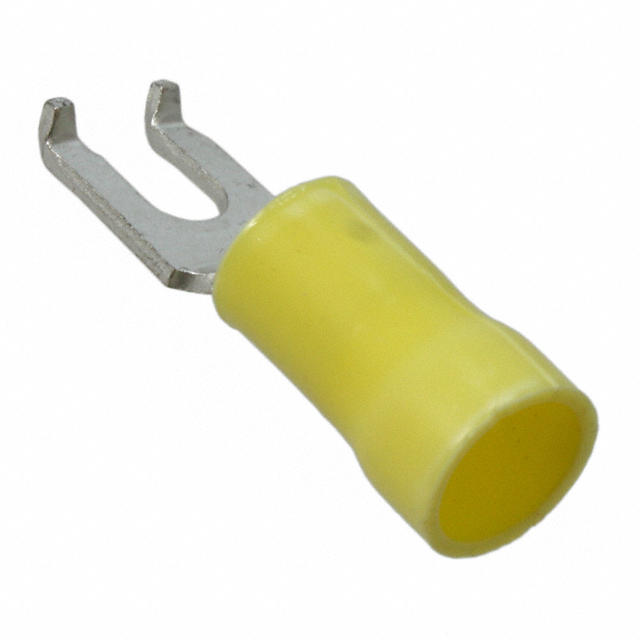

TE Connectivity Raychem Cable Protection 8-324581-2	3.68 mm	0.145 in	6 Stud	0.296 in	7.52 mm	26.85 mm	1.057 in	Poly-Vinyl Chloride (PVC)	Copper	Yellow	0.25 in	6.35 mm	0.25 "	3.81 mm	0.15 "	6.35 mm	0.591 in	15.01 mm	Serrated Termination	Insulated	12 AWG	10 AWG	Tin	Flanged	Crimp	Free Hanging (In-Line)
TE Connectivity Raychem Cable Protection 1-324581-1	3.68 mm	0.145 in	6 Stud	0.296 in	7.52 mm	26.85 mm	1.057 in	Poly-Vinyl Chloride (PVC)	Copper	Yellow	0.25 in	6.35 mm	0.25 "	3.81 mm	0.15 "	6.35 mm	0.591 in	15.01 mm	Serrated Termination	Insulated	12 AWG	10 AWG	Tin	Flanged	Crimp	Free Hanging (In-Line)
