XARR Series

Catalog

CONN RCPT HSG 14POS 2.50MM

Part	Note	Fastening Type	Color	Pitch	Pitch	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Number of Rows	Insulation Material	Contact Termination	Contact Type	Mounting Type

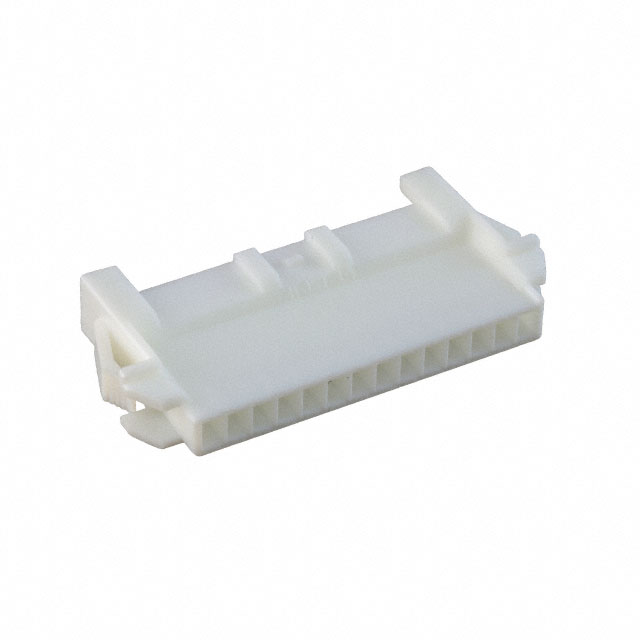

JST Sales America Inc. XARR-14V	Contacts Not Included	Latch Lock	Natural	2.5 mm	0.098 in	Receptacle	85 °C	-25 °C	14	1	Nylon Polyamide (PA)	Crimp	Male Pin	Panel Mount Snap-In

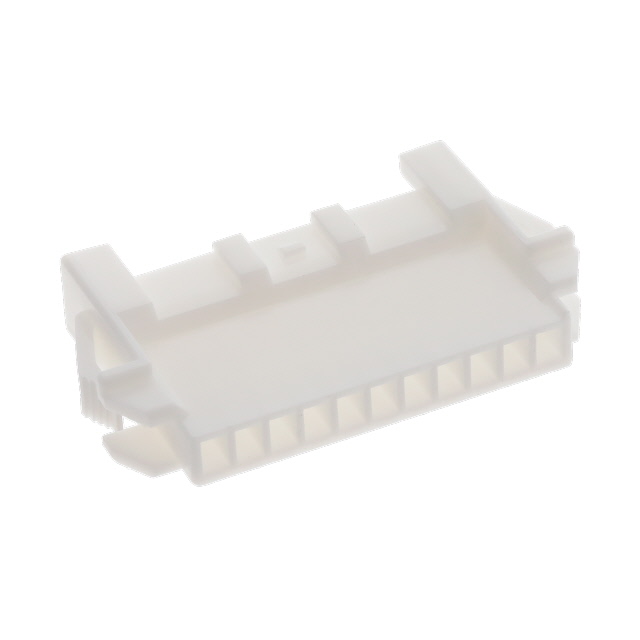

JST Sales America Inc. XARR-11V	Contacts Not Included	Latch Lock	Natural	2.5 mm	0.098 in	Receptacle	85 °C	-25 °C	11	1	Nylon Polyamide (PA)	Crimp	Male Pin	Panel Mount Snap-In

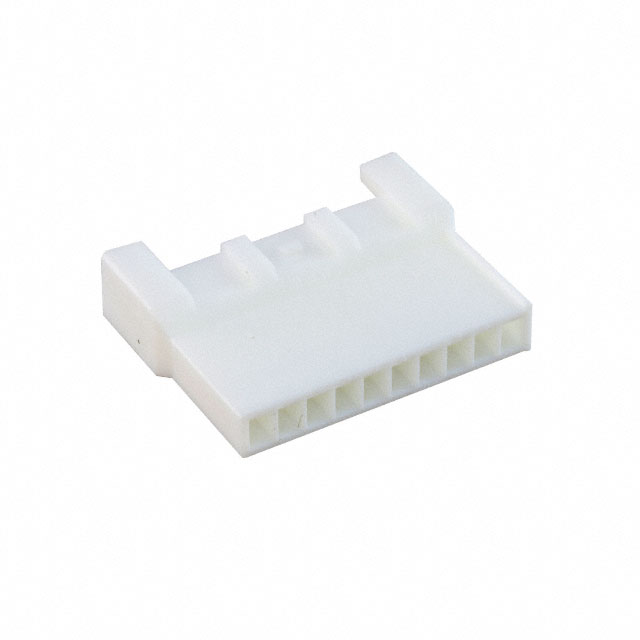

JST Sales America Inc. XARR-10VF	Contacts Not Included	Latch Lock	Natural	2.5 mm	0.098 in	Receptacle	85 °C	-25 °C	10	1	Nylon Polyamide (PA)	Crimp	Male Pin	Panel Mount

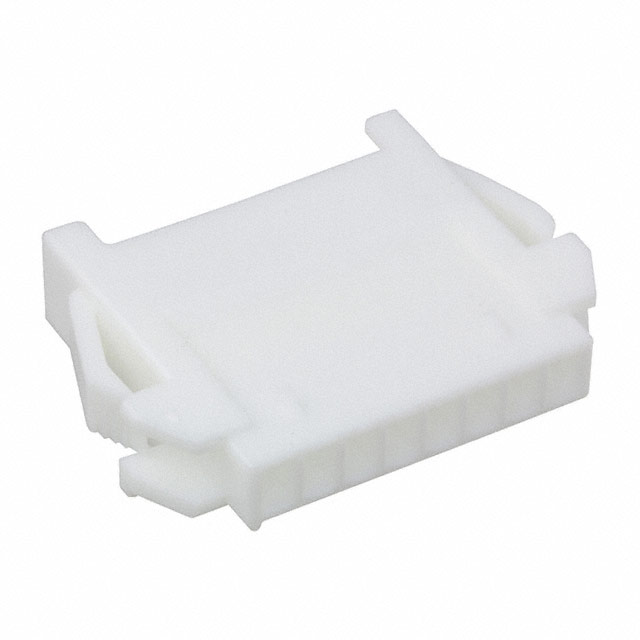

JST Sales America Inc. XARR-08V	Contacts Not Included	Latch Lock	Natural	2.5 mm	0.098 in	Receptacle	85 °C	-25 °C	8	1	Nylon Polyamide (PA)	Crimp	Male Pin	Panel Mount Snap-In
JST Sales America Inc. XARR-06V	Contacts Not Included	Latch Lock	Natural	2.5 mm	0.098 in	Receptacle	85 °C	-25 °C	6	1	Nylon Polyamide (PA)	Crimp	Male Pin	Panel Mount Snap-In

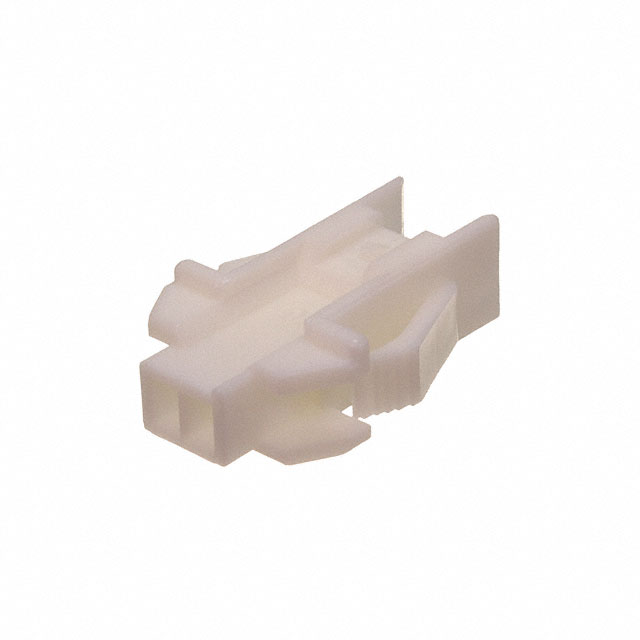

JST Sales America Inc. XARR-02V	Contacts Not Included	Latch Lock	Natural	2.5 mm	0.098 in	Receptacle	85 °C	-25 °C	2	1	Nylon Polyamide (PA)	Crimp	Male Pin	Panel Mount Snap-In

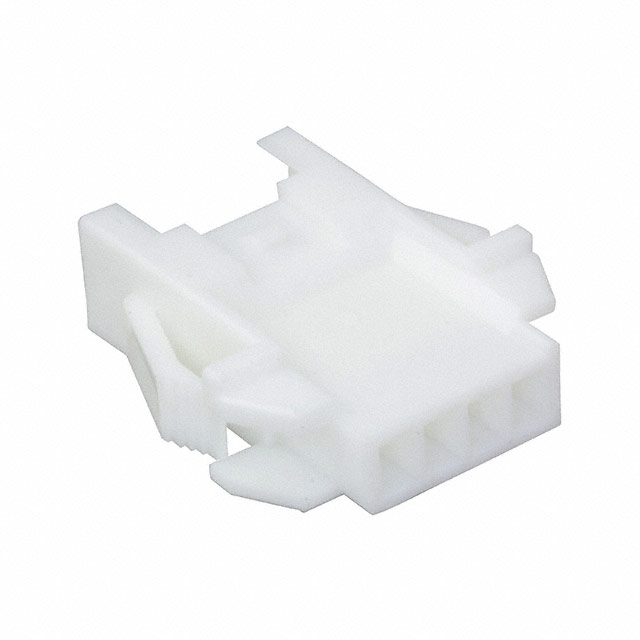

JST Sales America Inc. XARR-04V	Contacts Not Included	Latch Lock	Natural	2.5 mm	0.098 in	Receptacle	85 °C	-25 °C	4	1	Nylon Polyamide (PA)	Crimp	Male Pin	Panel Mount Snap-In

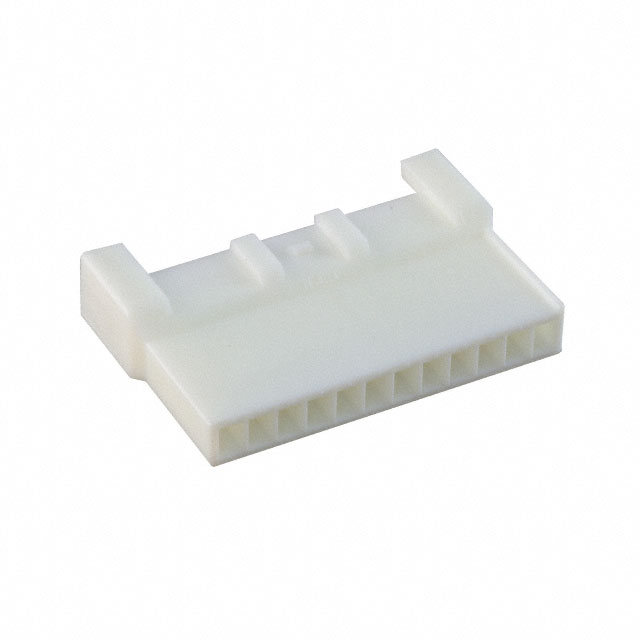

JST Sales America Inc. XARR-12VF	Contacts Not Included	Latch Lock	Natural	2.5 mm	0.098 in	Receptacle	85 °C	-25 °C	12	1	Nylon Polyamide (PA)	Crimp	Male Pin

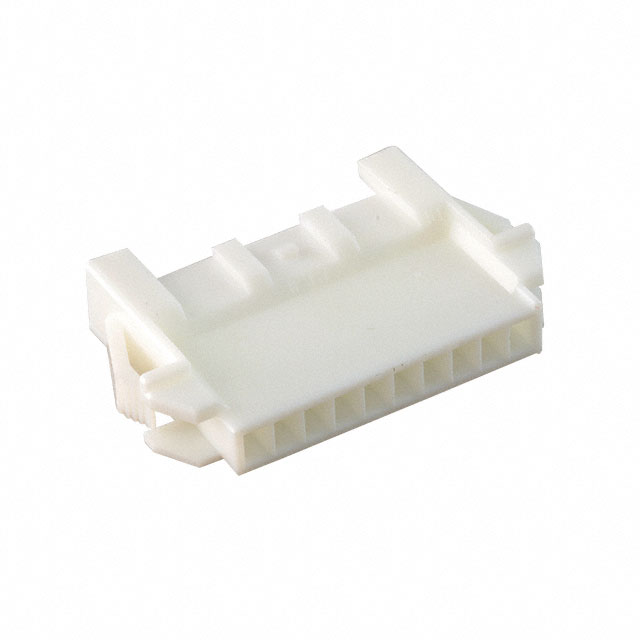

JST Sales America Inc. XARR-10V	Contacts Not Included	Latch Lock	Natural	2.5 mm	0.098 in	Receptacle	85 °C	-25 °C	10	1	Nylon Polyamide (PA)	Crimp	Male Pin	Panel Mount Snap-In

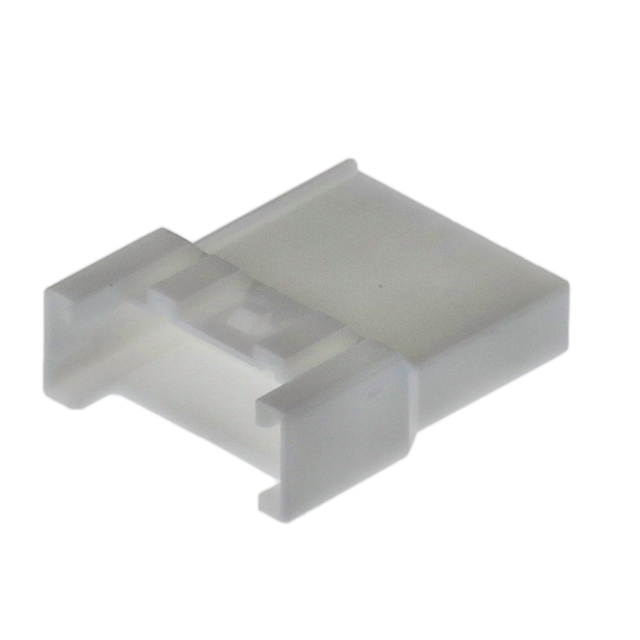

JST Sales America Inc. XARR-06VF	Contacts Not Included	Latch Lock	Natural	2.5 mm	0.098 in	Receptacle	85 °C	-25 °C	6	1	Nylon Polyamide (PA)	Crimp	Male Pin	Panel Mount
